ORNO Caixa de derivação de proteção com gel IPX8, pequena, blister, 4 unidades OR-SZ-8016/B4

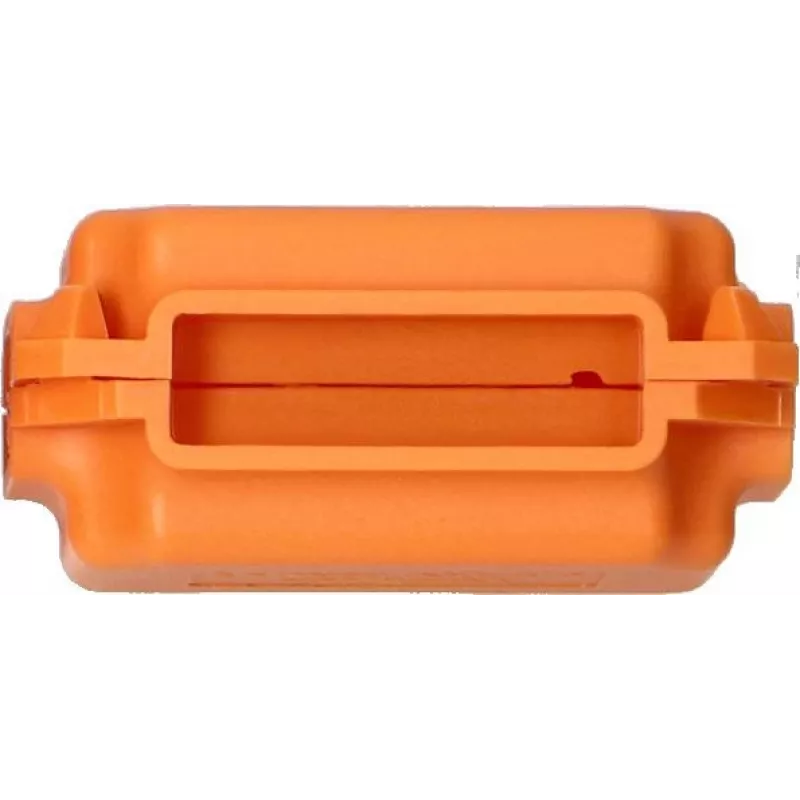

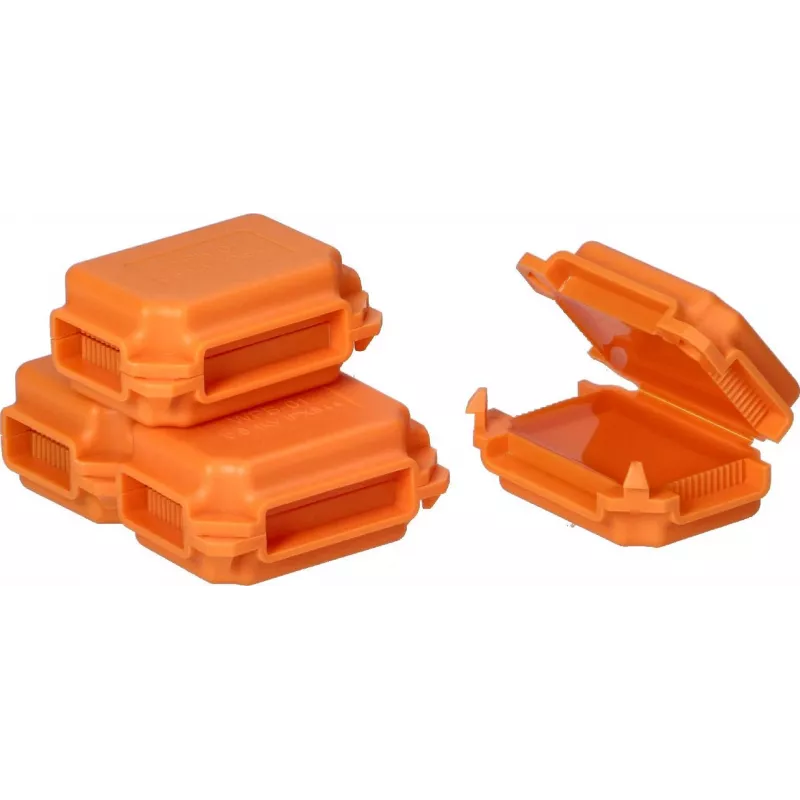

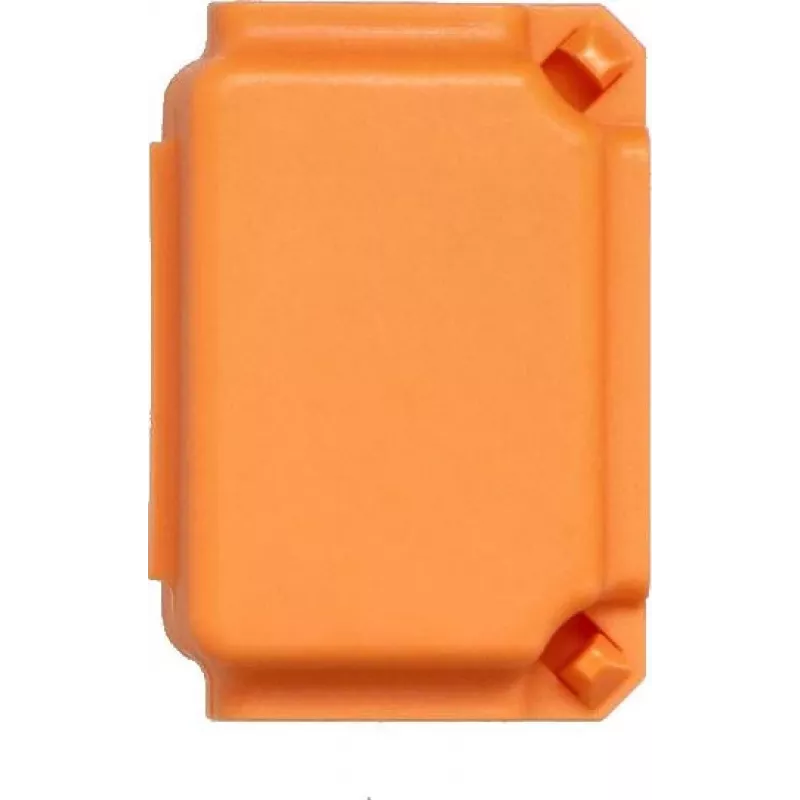

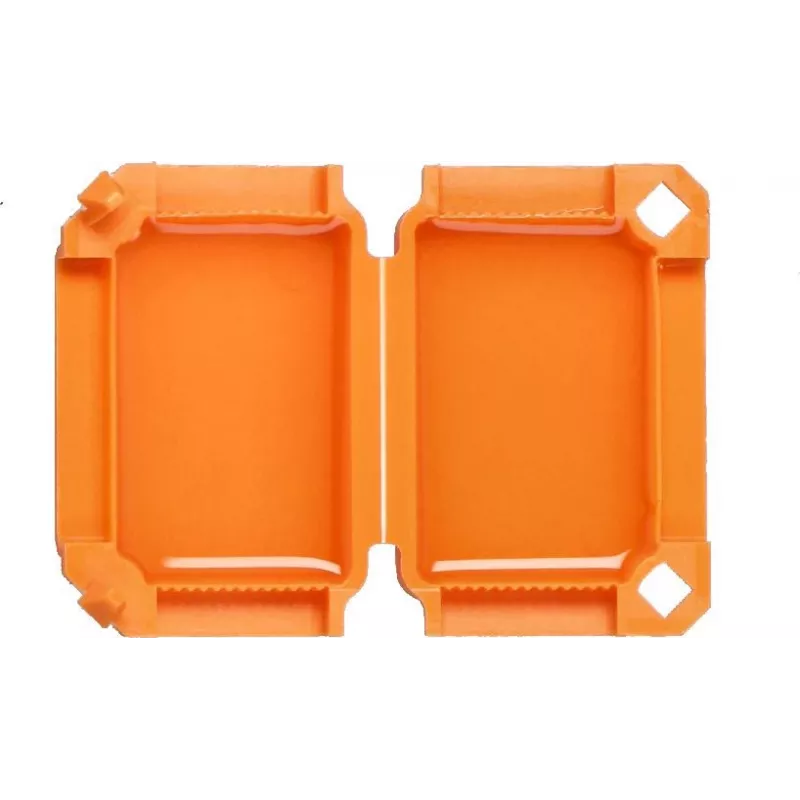

The ORNO OR-SZ-8016/B4 is a high-quality gel-filled protective junction box designed for reliable and durable electrical connections in demanding environments. With an IPX8 rating, it offers superior protection against water ingress, making it ideal for outdoor, underground, and humid applications. This small junction box is filled with non-toxic, re-enterable, self-sealing silicone gel that ensures a secure and waterproof seal for cable joints. The UV-resistant thermoplastic housing provides excellent durability and long-lasting performance. Supplied in a convenient blister pack containing 4 units, this junction box is perfect for both professional electricians and DIY enthusiasts.

Advantages

• IPX8 waterproof rating ensures reliable operation even when submerged.
• Self-sealing silicone gel allows for easy re-entry and resealing without compromising protection.
• UV-resistant thermoplastic housing withstands harsh outdoor conditions.
• Compact size (33 x 24 x 19 mm) fits tight spaces.
• Halogen-free and RoHS certified for environmental safety.

Suitable for

• Outdoor lighting and garden installations
• Underground cable connections
• Humid environments such as bathrooms and kitchens
• Telecommunications and low-voltage applications
• Automotive and marine electrical systems

Key specifications

• Product Type: Gel-Filled Protective Junction Box
• Ingress Protection: IPX8
• Number of Units: 4
• Gel Type: Non-toxic, Re-enterable, Self-sealing Silicone Gel
• Housing Material: UV-Resistant Thermoplastic
• Max Operating Temperature: +90°C
• Min Operating Temperature: -20°C
• Max Voltage Rating: 450V AC
• Max Current Rating: 24A
• Compatible Conductor Cross-Section: 0.5 - 6 mm²
• Compatible Cable Outer Diameter: 6 - 12 mm
• Dimensions (Single Box L x W x H): 33 x 24 x 19 mm

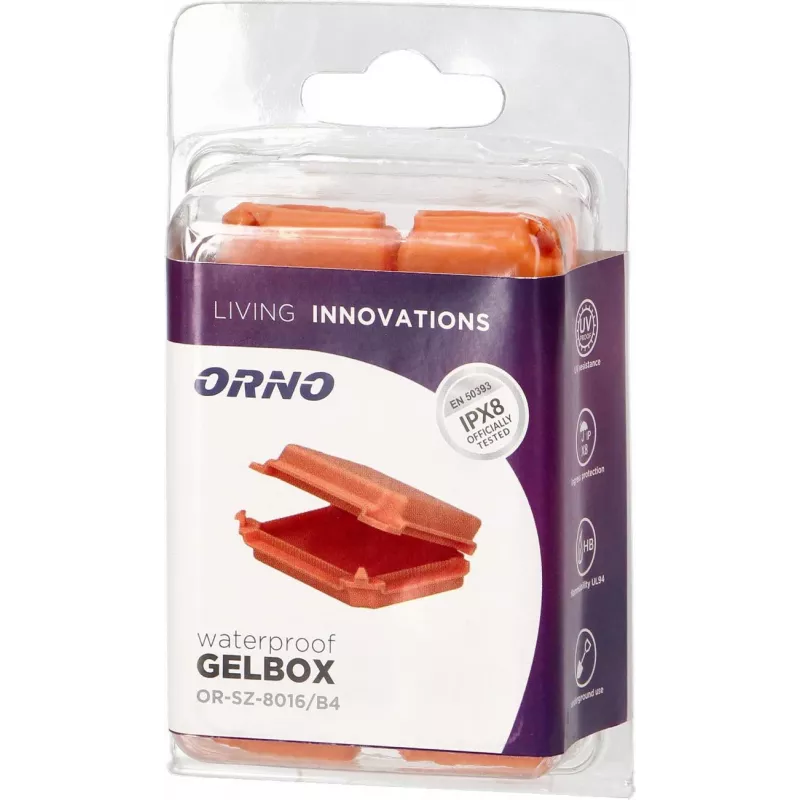

• Packaging: Blister Pack
• Certifications: CE, RoHS

Recommendations

For best results, ensure cables are properly stripped and inserted into the gel-filled chamber. The self-sealing gel will create a watertight seal around the conductors. Suitable for use with solid and stranded copper conductors. Always follow local electrical codes and regulations.
