ORNO Fossa Multi OR-DOM-RL-903 Conjunto de intercomunicador para duas famílias, branco/prata

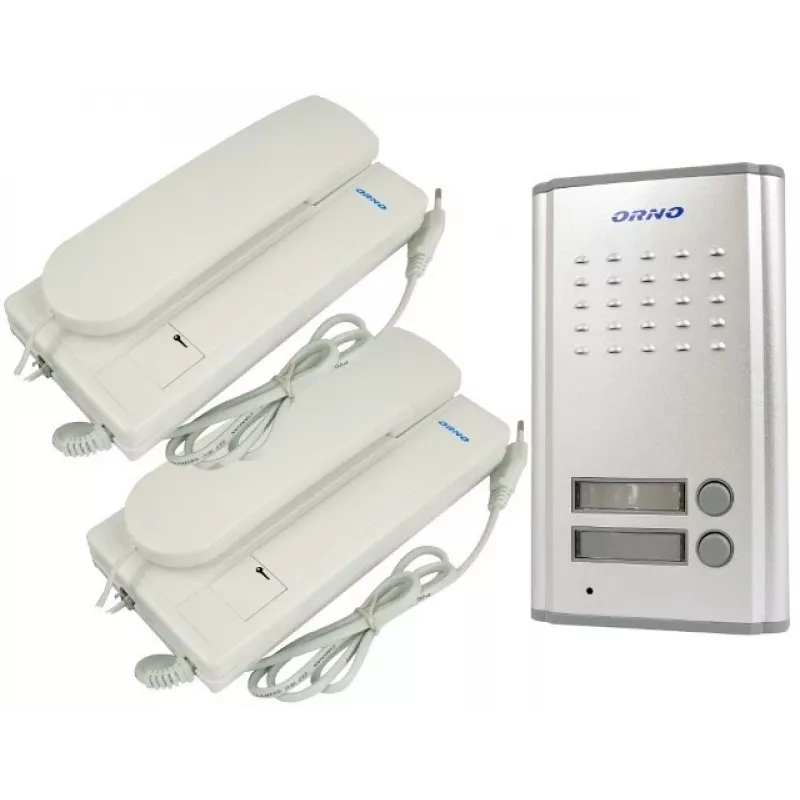

The ORNO Fossa Multi OR-DOM-RL-903 is a two-family intercom set with a white/silver finish. It includes an external panel and two indoor units (unifony), and allows direct control of an electric strike without an additional transformer.

Key features

• Two-family intercom set
• External panel with aluminium housing, flush-mounted
• Two indoor units (unifony) included
• Direct control of an electric strike without an additional transformer
• Nameplate illumination
• Energy-efficient (minimal power consumption in standby)
• Indoor units have a built-in power supply and power cord
• Each indoor unit protected by a fuse
• Duplex communication
• Electronic gong signal with adjustable volume

Specifications

• Brand: Orno
• MPN: 9095
• Product colour: White
• Model: OR-DOM-RL-903
• External panel dimensions: 116 x 200 x 54 mm (W x H x D)
• Flush-mount dimensions: 100 x 165 x 40 mm (W x H x D)
• External panel material: Aluminium
• External panel mounting: Flush-mounted
• External panel supply voltage: 12V from indoor unit
• Output voltage for electric strike: 12V DC
• External panel operating temperature: -20°C to +50°C
• External panel weight: approx. 0.335 kg
• Indoor unit dimensions: 98 x 215 x 68 mm (W x H x D)
• Indoor unit supply voltage: 230V/50 Hz AC
• Indoor unit operating temperature: 0°C to +45°C
• Indoor unit weight: approx. 0.385 kg
• Connecting cable between external panel and indoor unit: two-wire, max. 100 m
• Connecting cable between indoor unit and electric strike: two-wire, max. 100 m
• Wire cross-section: 0.6 mm² – 0.8 mm²
