Painel de ecrã para portátil Lenovo 15,6 polegadas HD TN — substituição para modelos compatíveis (MPN 5D10W35431)

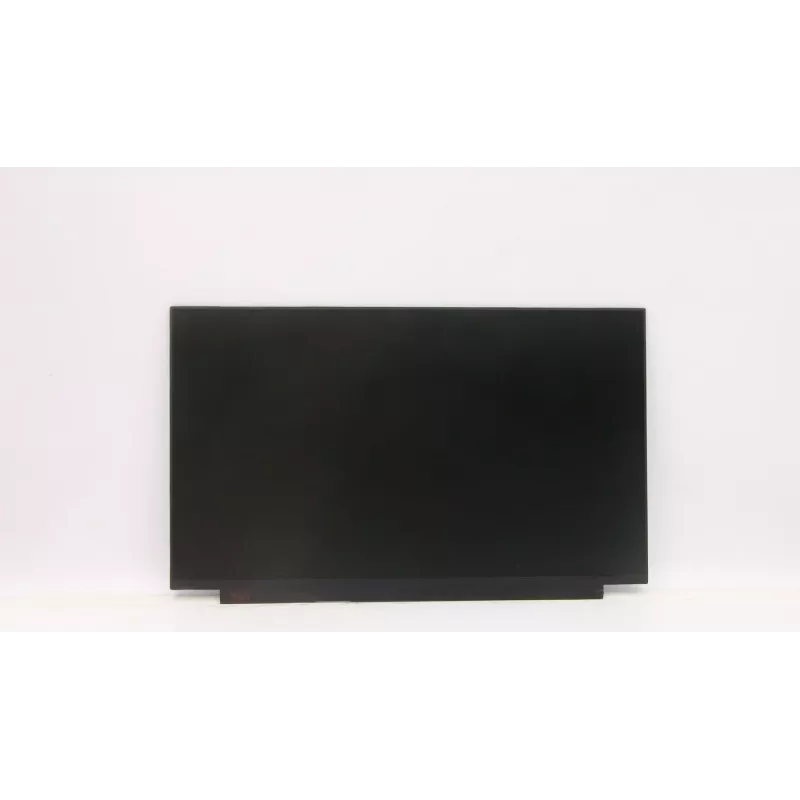

Lenovo 15.6" HD TN laptop display panel is an original replacement part designed to restore screen functionality on compatible Lenovo notebooks. The panel provides HD resolution in a 15.6-inch diagonal with a TN (twisted nematic) matrix. It is intended as a direct swap for matching models that use the same mechanical mounting and connector type, enabling repair or refurbishment of laptops that require a 15.6" HD TN screen.

Advantages

This replacement panel offers a factory-grade build and compatibility with Lenovo laptops that originally used a 15.6" HD TN module. Its TN matrix provides fast pixel response, which can reduce visible motion blur on moving images. The standard HD resolution delivers clear text and basic image detail suitable for everyday office tasks, web browsing and video playback. As a direct-fit component, it simplifies the repair process when connector type and mounting points match the original assembly.

Suitable for

• Repairing Lenovo laptops that originally used a 15.6" HD TN display
• Replacing damaged or non-functioning 15.6" laptop screens
• Refurbishment projects and parts inventory for service centers
• Users seeking a straightforward mechanical replacement with matching connector and mounting

Key specifications

• Diagonal size: 15.6 inches
• Resolution: HD (1366 x 768)
• Panel type: TN (Twisted Nematic)
• Surface finish: matte or anti-glare (typical for laptop TN panels)
• Orientation: standard landscape
• Connector type: edge-mounted 30/40-pin LVDS or compatible laptop display connector (confirm compatibility before installation)
• Typical use: internal laptop LCD replacement

How to use

Before installation, power off the laptop, disconnect the battery if possible and ground yourself to avoid electrostatic discharge. Remove the bezel and any screws securing the current display, carefully detach the display cable from the old panel and transfer any brackets or mounting hardware to the replacement panel if required. Connect the replacement panel's cable, position the panel into the lid frame, secure screws and reattach the bezel. After reassembly, power on the laptop and verify the image, brightness control and backlight operation. If the screen does not power or shows artifacts, recheck the connector seating and compatibility with the laptop’s display interface.

Recommendations

Confirm model compatibility and connector type before purchase. Handle the panel by its edges, avoid touching the display surface, and store it in antistatic packaging until installation. For best results use a service manual or step-by-step guide specific to the laptop model, and consider professional installation if you are not experienced with laptop disassembly.
