Painel de gestão de cabos ACT Schaltauge horizontal/vertical 1HE

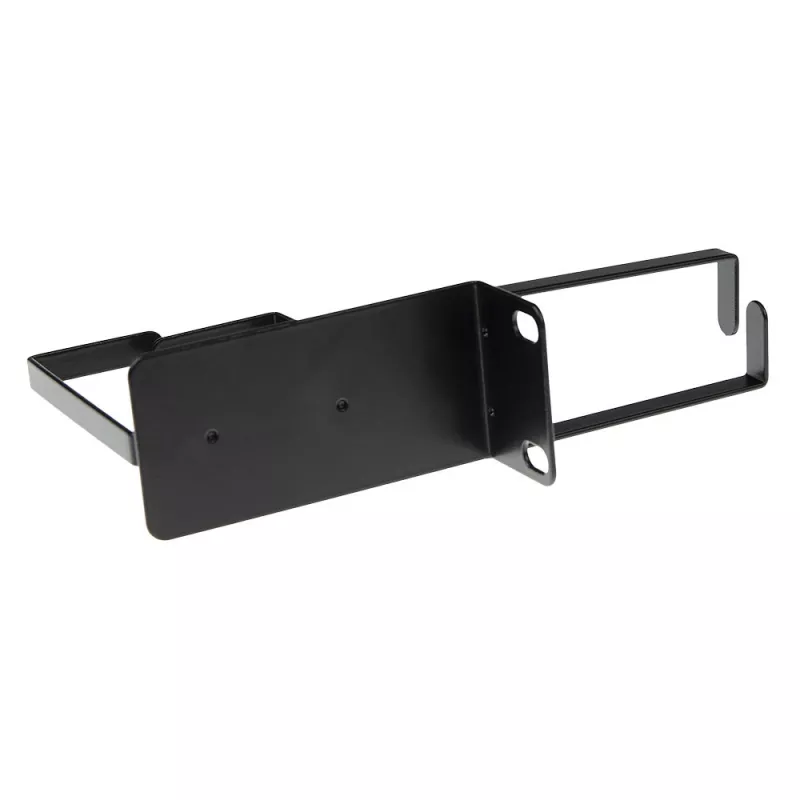

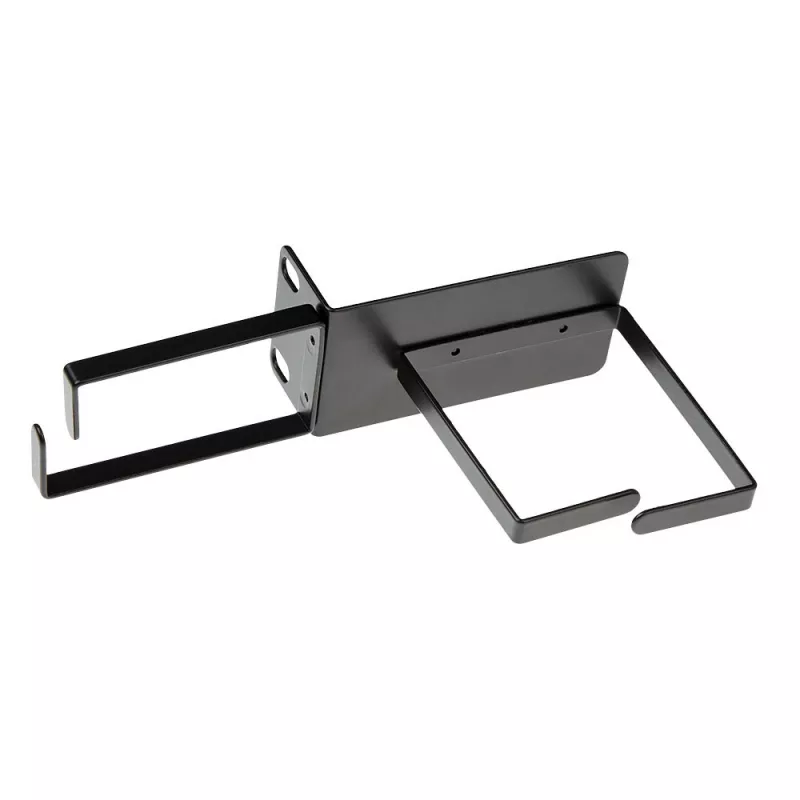

The ACT Shunting eye horizontal / vertical 1U cable management panel is a metal panel designed to organize and route network and power cables in server racks. Finished in black with a depth of 166.4 mm, the panel supports both horizontal and vertical installations and helps maintain a neat rack layout while reducing cable tangling and improving airflow.

Advantages

This 1U cable management panel is made of durable metal for long-term use and has a black finish that matches standard rack equipment. Its design allows installation in either horizontal or vertical orientation, giving flexibility in cable routing. The 166.4 mm depth provides sufficient clearance for neatly routing multiple cables and helps preserve rack airflow.

Suitable for

Key specifications

How to use

Mount the panel into a standard 19-inch rack at the desired U position using appropriate rack screws. Route cables through the shunting eye openings in either a horizontal or vertical orientation depending on your rack layout. Arrange cables neatly and secure them with cable ties or Velcro straps as needed to maintain separation and prevent strain on connectors.

Recommendations

For best results, plan cable paths before installation, avoid overfilling the panel to maintain airflow, and use additional cable management accessories if routing large bundles.
