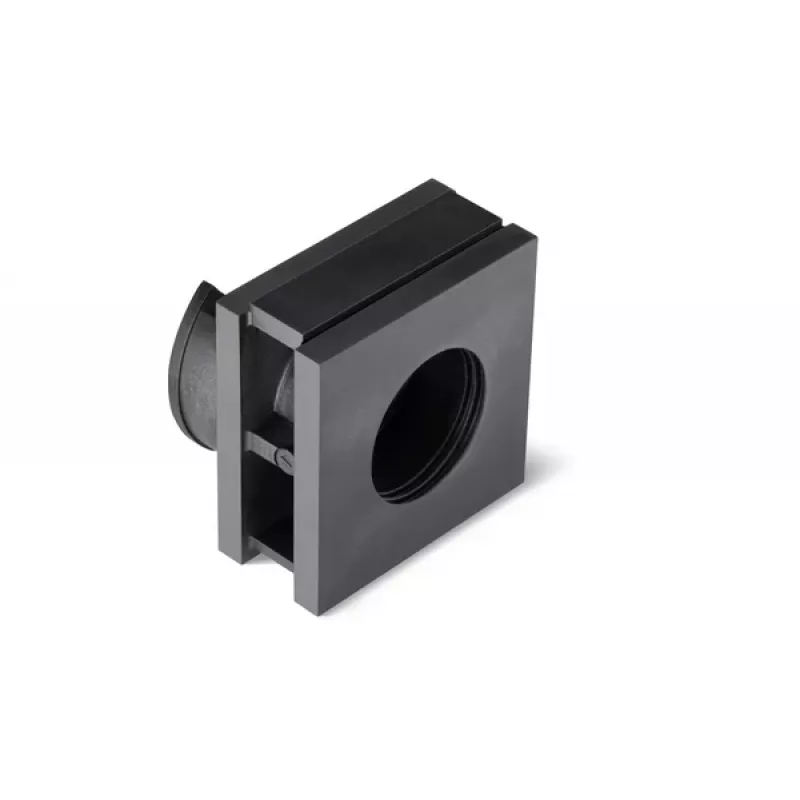

Passagem individual de cabo HellermannTyton VP-L 23-24, isenta de halogéneos, TPE, preto 440-00031

Single grommet for cable entry and protection in panels, featuring halogen-free thermoplastic elastomer construction in black. Designed for push-in installation with a cable diameter range of 23.0 to 24.0 mm and panel thickness of 2.3 to 2.4 mm.

Advantages

Halogen-free TPE material provides flexibility and durability. The grommet offers good UV resistance and operates within a wide temperature range from -40 °C to +120 °C. Its IP67 rating ensures protection against dust and temporary immersion.

Suitable for

• Cable entry and protection in panels
• Applications requiring halogen-free materials
• Environments with exposure to UV radiation

Key specifications

• Product Type: Single Grommet
• Series: VP-L
• Material: Thermoplastic Elastomer (TPE)
• Colour: Black
• Halogen-free: Yes
• For Cable Diameter: 23.0 - 24.0 mm
• For Panel Thickness: 2.3 - 2.4 mm
• Mounting Hole Diameter: 28.0 mm
• Operating Temperature Range: -40 °C to +120 °C
• Ingress Protection (IP) Rating: IP67
• Flammability Rating: UL94 HB
• UV Resistance: Good
• RoHS Compliant: Yes
• REACH Compliant: Yes
• Installation Type: Push-in
• Quantity per Pack: 1 Piece

Recommendations

Ideal for sealing cable entries in panels where halogen-free materials are required, such as in public buildings or transportation.
