Patch Panel 1U LogiLink NK4041

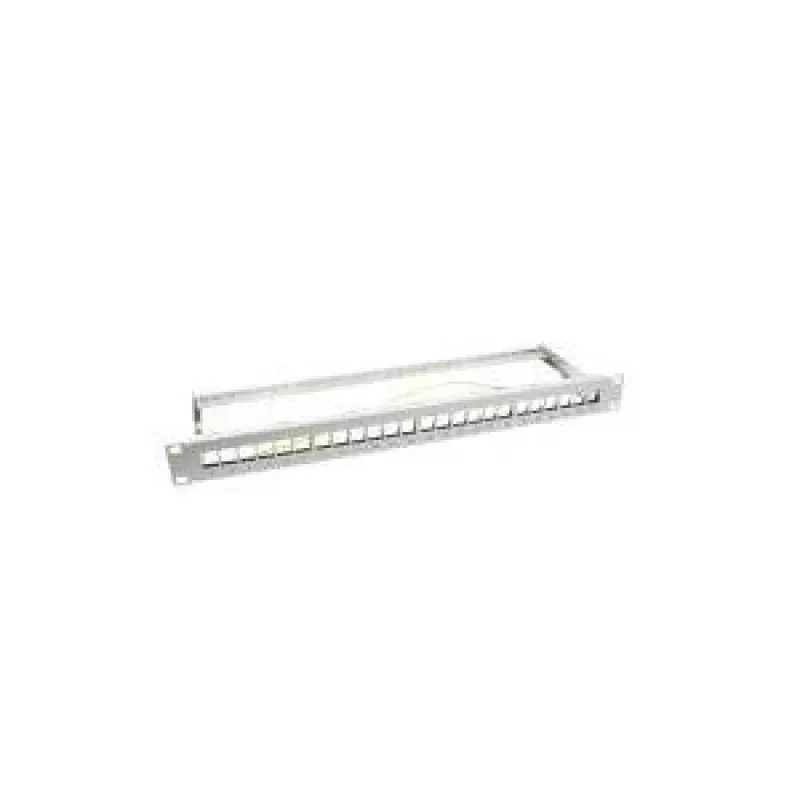

The LogiLink NK4041 is a 1U rack-mount patch panel constructed from solid steel with a light grey (RAL7035) finish. Weighing 800 g, it accommodates up to 24 shielded keystone modules and includes a support bar and earthing cable to ensure stable installation and proper grounding.

Advantages

The metal 19" 1U frame provides durable, rack-compatible housing for keystone modules, while the included support bar adds mechanical stability for connected cables. The integrated earthing cable allows secure grounding of shielded keystone modules. The compact 1U size saves rack space and the grey finish matches common server-room equipment.

Suitable for

• Patching and routing network connections in server racks
• Installation of 24 shielded keystone jacks (Cat5e/Cat6 keystone modules)
• Small office, server room or data cabinet cable management

Key specifications

• Form factor: 19" 1U metal frame
• Keystone capacity: 24 shielded modules
• Material: steel
• Weight: 800 g
• Colour: RAL7035 light grey
• Includes: support bar and earthing cable

How to use

Mount the patch panel into a standard 19" rack occupying 1U of space. Install shielded keystone modules into the panel's ports according to the module manufacturer's instructions. Secure the panel with rack screws, attach the support bar to relieve cable strain, and connect the earthing cable to the rack ground or building ground point to ensure proper shielding continuity.

Recommendations

For optimal performance use compatible shielded keystone jacks and maintain proper grounding. Dress and secure cables to the support bar to reduce strain on connectors and follow local grounding regulations when connecting the earthing cable.
