Patch panel 1U ShiverPeaks BS75077 RJ-45 Cat6a cinzento metal

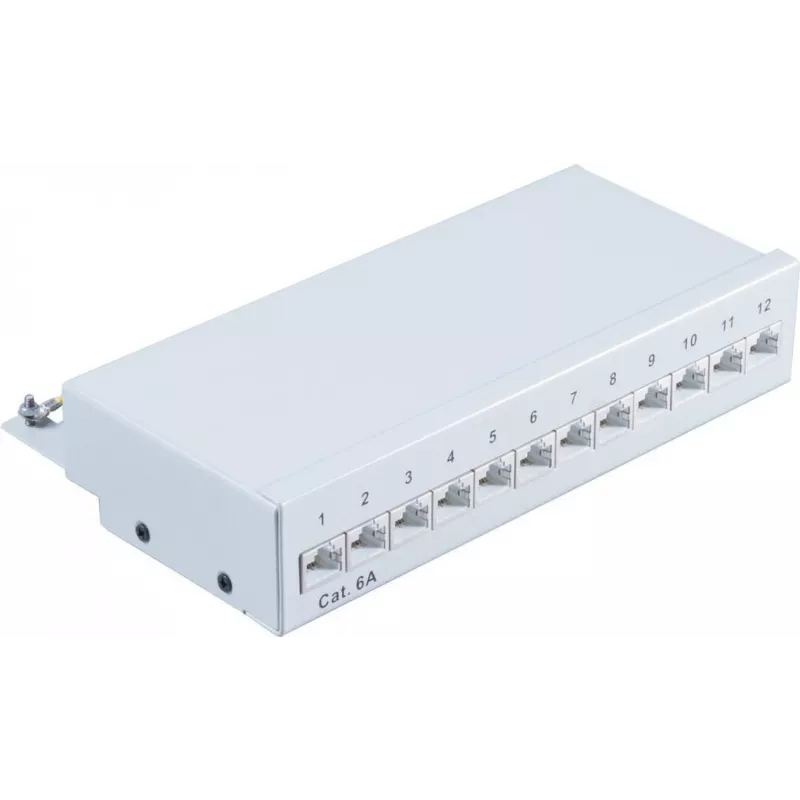

The ShiverPeaks BS75077 1U patch panel is a compact rack-mount module for structured network cabling. It provides multiple RJ-45 ports compatible with Cat6a cabling and is constructed from grey metal for mechanical strength and long-term durability. With a width of 212 mm, height of 45 mm and depth of 130 mm, the unit is sized for standard 19-inch rack installations and intended to organize and terminate Ethernet runs in server rooms, wiring closets and communication cabinets.

Advantages

The metal housing offers robust protection for internal connectors and improves heat dissipation compared with plastic alternatives. Support for Cat6a ensures compatibility with high-speed Ethernet links and provides margin for future upgrades. The compact 1U form factor conserves rack space while maintaining accessible RJ-45 ports for straightforward patching. The pre-finished grey surface reduces visible wear in multi-device racks and simplifies labeling and maintenance.

Suitable for

• Data center and server room horizontal cabling termination
• Office network patching and cable management
• Telecommunications racks and communication cabinets
• Small and medium enterprise network closets

Key specifications

• Form factor: 1U rack-mount
• Connector type: RJ-45, compatible with Cat6a
• Material: metal housing
• Color: grey
• Dimensions: 212 mm (W) × 45 mm (H) × 130 mm (D)
• Mounting: standard 19-inch rack compatible

How to use

Mount the patch panel in a standard 19-inch rack using appropriate rack screws and cage nuts. Terminate individual Cat6a cables to the panel's RJ-45 modules following the T568A or T568B wiring standard as required by your network design, and secure cable runs with cable ties or management bars to reduce strain. Label the ports for identification and connect patch cords between the panel and network devices or switches to complete the link.

Recommendations

Install the panel in an environment with controlled temperature and minimal dust to preserve connector integrity. Use quality Cat6a-rated cables and maintain proper bend radius during installation. Regularly inspect and clean connector contacts if frequent patching occurs to sustain signal quality.
