Patch Panel 1U ShiverPeaks BS75078

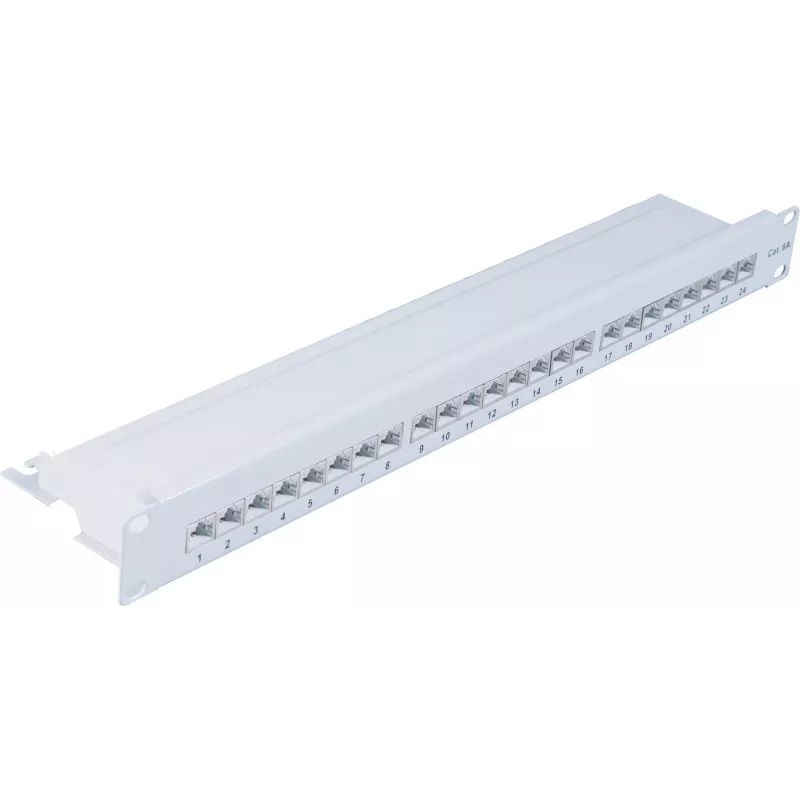

The ShiverPeaks BS75078 is a 1U patch panel designed for organized and reliable network cabling. Made from durable metal, this panel accepts RJ-45 connectors and is compatible with Cat6a cable types, providing a structured interface for high-performance Ethernet links. Its compact 1U form factor and standard rack width make it suitable for use in network racks and cabinets where space efficiency and cable management are required.

Advantages

This metal 1U patch panel provides a stable mounting solution and durable construction for long-term use in server rooms and wiring closets. The RJ-45 connector compatibility and Cat6a support enable transmission at higher frequencies and improved signal integrity compared with older categories. The panel’s standardized width and shallow depth allow for straightforward installation in standard 19-inch racks while leaving room for other equipment.

Suitable for

• Structured cabling in office and enterprise network racks
• Server room and data closet patching
• Upgrading or installing Cat6a Ethernet infrastructure
• Organized cable distribution for VoIP, IPTV and data networks

Key specifications

• Form factor: 1U rack-mount panel
• Connector type: RJ-45
• Cable category support: Cat6a
• Material: metal construction
• Dimensions (W×H×D): 482 mm × 45 mm × 130 mm

How to use

Mount the patch panel in a standard 19-inch rack at the desired height using appropriate rack screws. Terminate Cat6a cables to the rear IDC or RJ-45 jacks according to the T568A or T568B wiring scheme required by your network. Route and secure cables to maintain bend radius and minimize interference. Label ports to reflect connected devices or patching destinations for simplified management and troubleshooting.

Recommendations

For best results, use certified Cat6a patch cords and follow recommended cable management practices, including maintaining proper bend radius, separating power and data cabling where possible, and using cable ties or panels to prevent strain on terminations.
