Patch panel 1U Tecline 257309

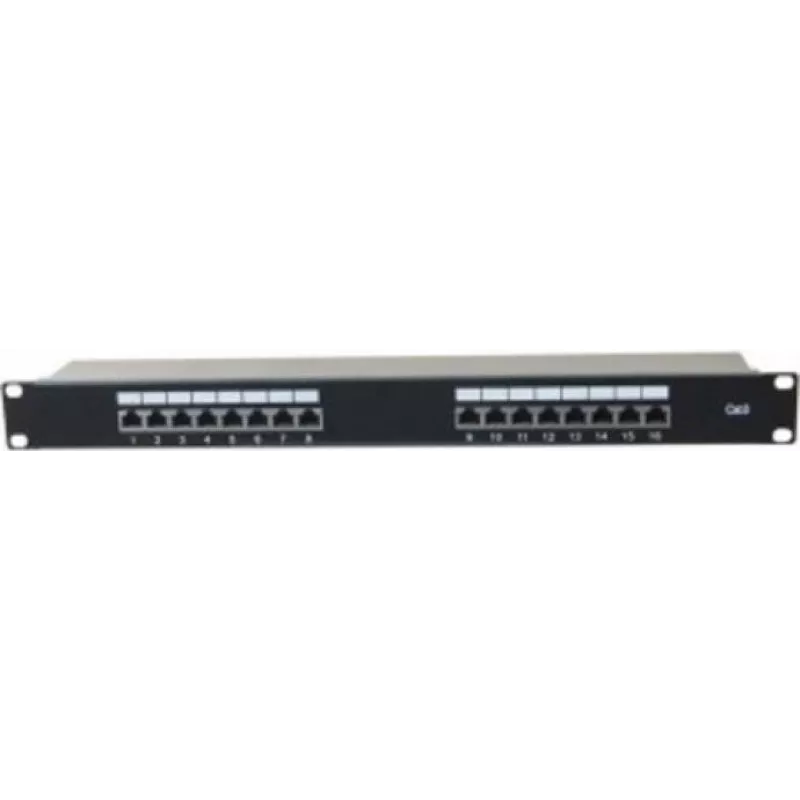

The Tecline 257309 patch panel is a 1U rack-mounted solution designed for organized network cable termination in standard 19-inch racks. Finished in matte black, it provides a compact and consistent mounting footprint for horizontal cable management and consolidation of multiple network runs. The panel is intended to simplify connections between switches, patch cords and structured cabling while helping maintain a professional rack appearance.

Advantages

This 1U patch panel offers a space-efficient layout that helps reduce cable congestion and improves accessibility to individual ports. Its sturdy metal construction supports repeated patching cycles and contributes to stable cable routing. The black finish minimizes visual distraction in server rooms and wiring closets, and the standard rack size ensures compatibility with common rack enclosures and mounting rails.

Suitable for

Key specifications

How to use

Install the patch panel into the 19-inch rack at the desired 1U position using compatible rack screws. Route incoming and outgoing network cables to the rear of the panel and terminate them according to the chosen connector scheme or keystone modules. Use patch cords to connect active equipment to the front ports. Maintain gentle cable bends and use cable management accessories as needed to avoid strain on terminations.

Recommendations

Plan port labeling before installation to simplify future changes. Keep cable lengths organized and avoid sharp bends near terminations. Combine the patch panel with vertical or horizontal cable managers to maintain airflow and accessibility in the rack.
