Patch panel Black Box JPM5E48A 2U Cat5e montagem em rack

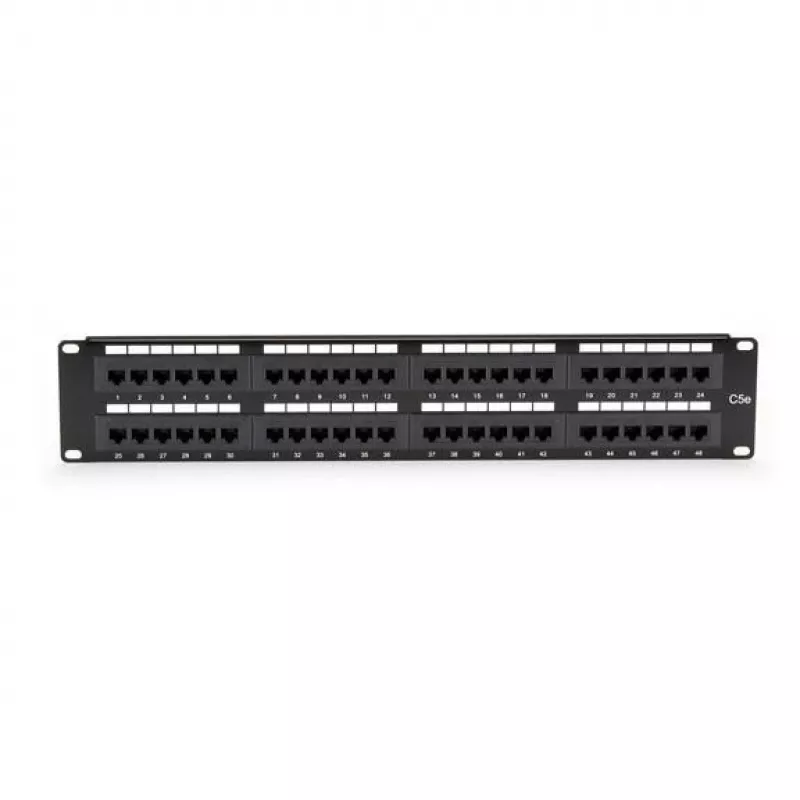

The Black Box JPM5E48A is a 2U rack-mount patch panel for Cat5e cabling, offering 48 ports to organise horizontal network connections in server rooms, wiring closets, and data centres. Its black finish and standard 2U size make it compatible with standard equipment racks while providing a tidy, centralised termination point for Ethernet runs.

Advantages

The patch panel supports Cat5e performance across 48 RJ45 ports, enabling straightforward cable management and labelable port positions for easier maintenance. Rack-mount form factor (2U) ensures compatibility with common server racks, and the durable metal housing provides a stable mounting surface for multiple cable terminations.

Suitable for

• Wiring closets and telecom rooms
• Small and medium data centres
• Office network distribution panels
• Structured cabling installations using Cat5e

Key specifications

• Brand: black box
• Model / MPN: JPM5E48A
• Ports: 48 RJ45 (Cat5e)
• Rack height: 2U
• Mounting: rack-mountable
• Colour: black
• EAN: 5715063639061

How to use

Mount the JPM5E48A into a standard 19-inch equipment rack occupying 2U of space. Terminate each Cat5e cable on the rear IDC or punch-down connectors following the T568A or T568B wiring standard, then connect devices using patch cords to the front RJ45 ports. Label ports as needed to reflect network topology and simplify future maintenance.

Recommendations

For best performance, use Cat5e or better certified cables and maintain proper bend radius when routing cables. Choose a consistent wiring standard (T568A or T568B) across the installation and document port mappings. Perform continuity and certification tests after installation to verify link integrity.
