Placa de rede interna InLine 51125T Ethernet 2500 Mbit/s

Placa de rede interna InLine 51125T Ethernet 2500 Mbit/s
Placa de rede interna InLine 51125T Ethernet 2500 Mbit/s
Placa de rede interna InLine 51125T Ethernet 2500 Mbit/s
Placa de rede interna InLine 51125T Ethernet 2500 Mbit/s
Placa de rede interna InLine 51125T Ethernet 2500 Mbit/s
Placa de rede interna InLine 51125T Ethernet 2500 Mbit/s
-16%
Black Week
Placa de rede interna InLine 51125T Ethernet 2500 Mbit/s
Placa de rede interna InLine 51125T Ethernet 2500 Mbit/s
Placa de rede interna InLine 51125T Ethernet 2500 Mbit/s
Placa de rede interna InLine 51125T Ethernet 2500 Mbit/s
Placa de rede interna InLine 51125T Ethernet 2500 Mbit/s
Placa de rede interna InLine 51125T Ethernet 2500 Mbit/s
31,14 €
36,96 €−16 %
PDF
PDF
Stock 190 Código 1732332 Modelo 51125T Garantia 3 anos

Envios e devoluções

Entrega prevista quinta-feira, 3 de dezembro
Receberá atualizações através do nosso sistema de seguimento detalhado
Opções de pagamento
Cartão bancárioVisaMastercardApple PayGoogle PayTransferência bancária

Faça uma pergunta – o assistente IA responde de imediato.

Descrição

High network performance at 2.5 Gb/s:Ideal for servers, NAS, multimedia streaming, and virtualization thanks to RJ45 connection with Realtek RTL8125B chip.
Easy integration via PCIe x1:Compatible with x1, x4, x8, and x16 – fast network expansion for PCs, workstations, and industrial systems.
Numerous features for professionals:Supports VLAN, Double-VLAN, Jumbo Frames, RSS, PTP, VMQ, and VMDq for maximum network efficiency.
Broad system compatibility:Supports Windows 7 to 11, Windows Server 2008–2019, and common Linux distributions with driver support.
Future-proof with Cat 5e cables:No rewiring necessary – 2.5 Gb/s can be used without any problems over existing Cat 5e cables up to 100 m.

This PCIe network card from InLine expands your PC, industrial computer, or workstation with a powerful 2.5 Gigabit Ethernet connection. The RJ45 port allows you to achieve network speeds of up to 2.5 Gb/s – ideal for data-intensive applications such as server connections, virtualization, NAS systems, multimedia streaming, or fast file transfers.
The card is connected via a PCIe x1 interface, but is also compatible with x4, x8, and x16 slots. The modern Realtek RTL8125B chipset offers advanced networking features: auto-negotiation, auto-MDI/MDI-X, VLAN support (including double VLAN), Layer 2 traffic prioritization, flow control, jumbo frames (up to 16 KB), RSS, hardware CRC, Wake-on-LAN, and RealWoW!
VMQ, VMDq, and IEEE time services are supported for virtualization environments. The card is compatible with Windows (7 to 11, Server 2008–2019) and Linux. Cat.5e cabling is sufficient for 2.5 Gigabit operation – ideal for upgrades without structural measures.

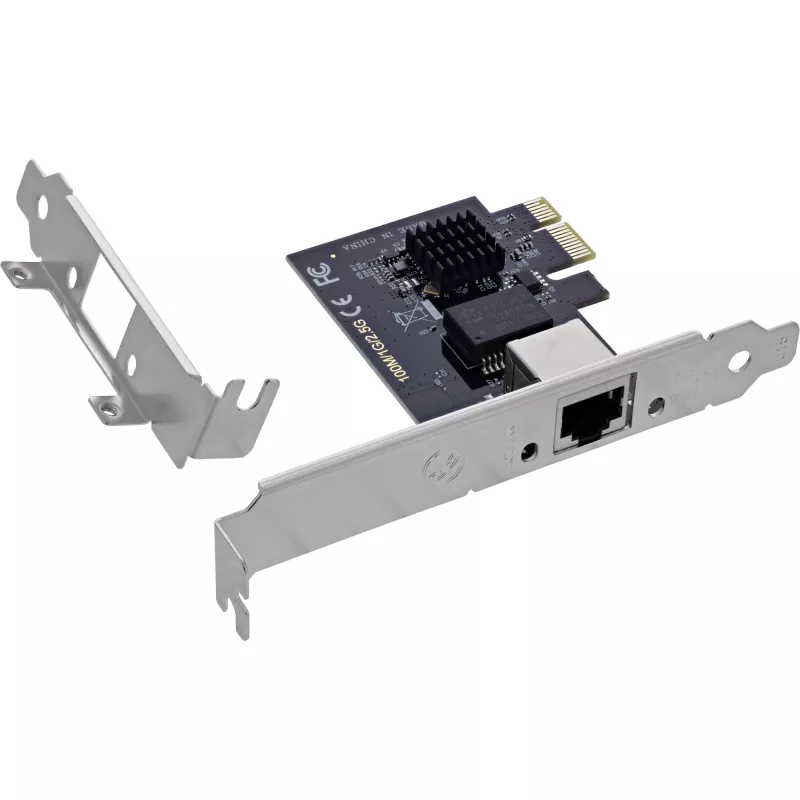

The scope of delivery includes a driver CD, a user manual in German and English, and a low-profile slot bracket, so that even compact cases are supported.

PCIe standard:PCIe v2.1 x1 lanes (compatible with x1, x4, x8, and x16)
Connection:1x RJ45
Chipset:Realtek RTL8125B
Supported speeds:
– 2.5 Gb/s (2.5GBASE-T, IEEE 802.3bz)
– 1 Gb/s (1000BASE-T, IEEE 802.3ab)
– 100 Mb/s (100BASE-TX, IEEE 802.3u)
– 10 Mb/s (10BASE-T, IEEE 802.3)
Supported functions/standards:
– Auto-negotiation
– Auto-MDI/MDI-X
– Flow control: IEEE 802.3x
– VLAN support: IEEE 802.1Q, 802.1ad
– Prioritization: IEEE 802.1p
– Energy-efficient Ethernet: IEEE 802.3az
– Jumbo frames: up to 16 KB
– RSS – Hardware CRC and hardware ECC
– Wake-on-LAN and RealWoW!
– VMDq and VMQ
– PTP time services: IEEE 1588v1/v2, IEEE 802.1AS
Cable requirements:2.5 Gb/s: Cat-5e or higher (up to 100 m)
Operating temperature:0 °C to 70 °C C
Storage temperature:-40 °C to 70 °C
Maximum humidity:90%, non-condensing
Supported operating systems:Windows 7 / 8 / 8.1 / 10 / 11, Windows Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 / 2019, Linux

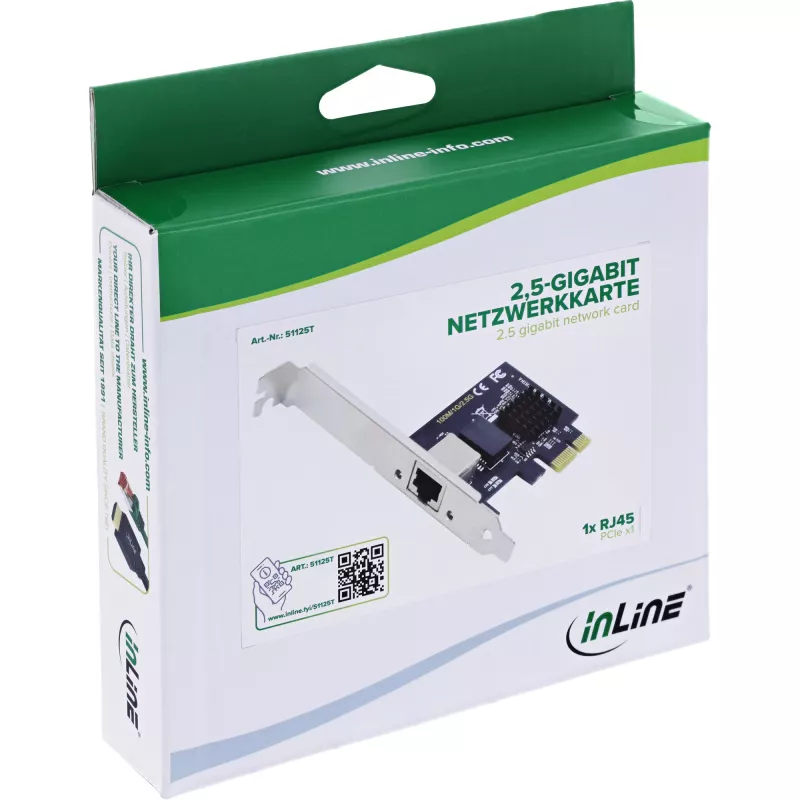

Scope of delivery:1x InLine 2.5 Gigabit network card, 1x RJ45, 1x low-profile slot bracket, 1x driver CD, 1x user manual in German/English

InLine 51125T. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s

How to use

Install the card into an available PCIe x1, x4, x8 or x16 slot, secure the bracket and connect a Cat 5e (or better) Ethernet cable to the RJ45 port. Boot the system and install the provided drivers or obtain up-to-date drivers from the manufacturer if required. Configure link speed, VLANs or other advanced features through the operating system network settings or the NIC driver utility according to your network design.

Recommendations

For 2.5 Gb/s operation use Cat 5e or higher cabling and keep runs within 100 m. Use the low-profile bracket for small form factor cases. Enable driver-offload features (VMQ, VMDq, RSS) on virtualization hosts to reduce CPU load and improve network throughput.

Destaques principais
  • Adding a fast wired port to desktop PCs and workstations
  • Connecting NAS and home or small office servers
  • Multimedia streaming and large file transfers
  • Virtualization hosts and VMs requiring network offload features
  • Interface: PCIe v2.1 x1 (compatible with x1, x4, x8, x16)
  • Network connector: 1 × RJ45
  • Chipset: Realtek RTL8125B
  • Supported speeds: 2.5 Gb/s, 1 Gb/s, 100 Mb/s, 10 Mb/s
  • Supported protocols and features: Auto-negotiation, Auto-MDI/MDI-X, IEEE 802.3x flow control, VLAN (IEEE 802.1Q/802.1ad), priority (IEEE 802.1p), Energy Efficient Ethernet (IEEE 802.3az), jumbo frames up to 16 KB, RSS, hardware CRC/ECC, Wake-on-LAN, RealWoW!, VMQ, VMDq, PTP time services (IEEE 1588v1/v2, IEEE 802.1AS)
  • Cable requirements: Cat 5e or higher for 2.5 Gb/s (up to 100 m)
  • Operating temperature: 0 °C to 70 °C
  • Storage temperature: -40 °C to 70 °C
  • Maximum humidity: 90% non-condensing
  • Supported operating systems: Windows 7/8/8.1/10/11, Windows Server (2008–2019), Linux

Especificações

Especificações
Altura
120 mm
CD de recursos
Sim
Certificados de conformidade
Marca TÜV, Federal Communications Commission (FCC), CE
Chipset
Realtek RTL8125B
Compatibilidade com jumbo frames
Sim
Compatibilidade com VLAN
Sim
Componente para
PC
Distância máxima de funcionamento
100 m
Humidade relativa de armazenamento (H-H)
0 - 90%
Humidade relativa de funcionamento (H-H)
0 - 90%
Interface
Ethernet
Interface do anfitrião
PCI Express
Interno
Sim
Jumbo frames
16000
Largura
85 mm
Manual
Sim
Normas de rede
IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3, IEEE 802.3x, IEEE 802.1ad, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az, IEEE 1588, IEEE 1588v2, IEEE 802.1as
País de origem
Taiwan
Peso
2 kg
Peso da embalagem
39 g
Portas Ethernet LAN (RJ-45)
1
Preparado para Wake-on-LAN
Sim
Profundidade
1.07 mm
Sistemas operativos de servidor compatíveis
Windows Server 2008, Windows Server 2012, Windows Server 2019, Windows Server 2016, Windows Server 2008 R2, Windows Server 2012 R2
Sistemas operativos Windows compatíveis
Windows 10, Windows 11, Windows 7, Windows 8
Suportes de montagem incluídos
Sim
Taxa máxima de transferência de dados
2500 Mbit/s
Tecnologia de conectividade
Com fios
Temperatura de armazenamento (T-T)
-40 - 70 °C
Temperatura de funcionamento (T-T)
0 - 70 °C
Versão PCI
2.1
Volume da embalagem
700 cm³

Folheto

Abrir documento
