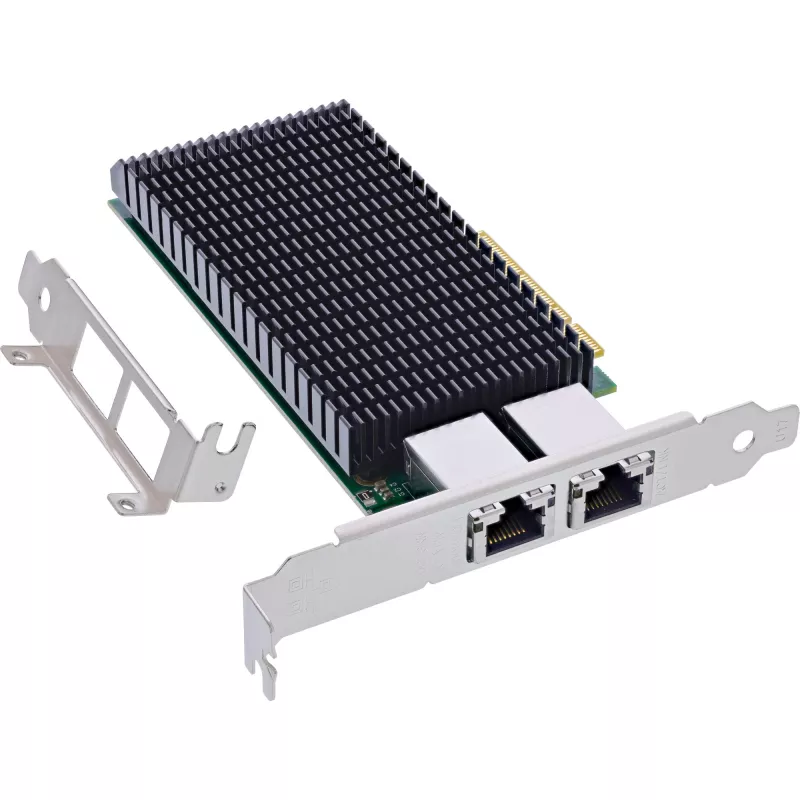

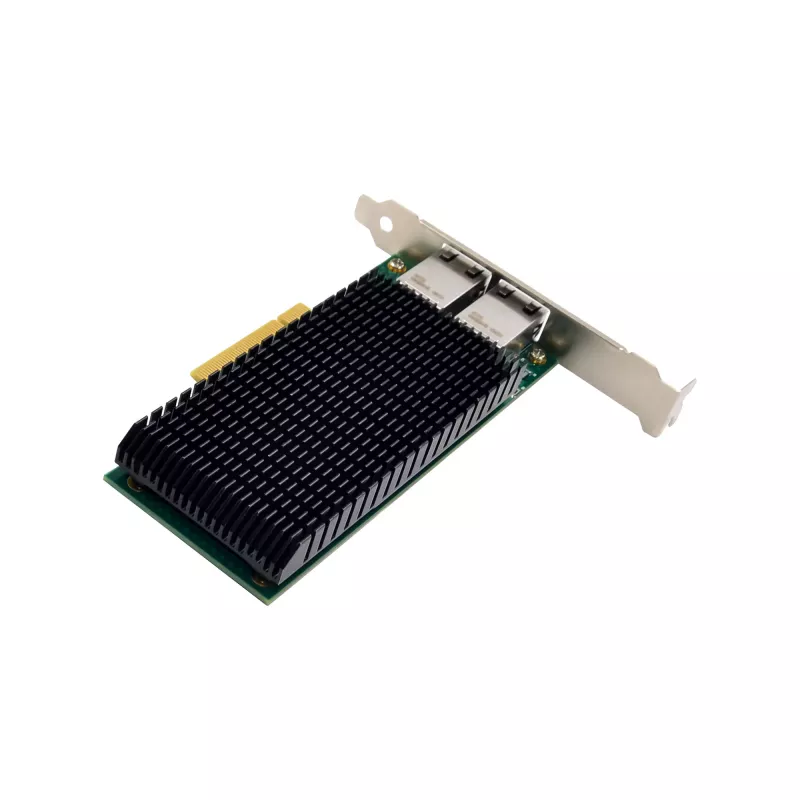

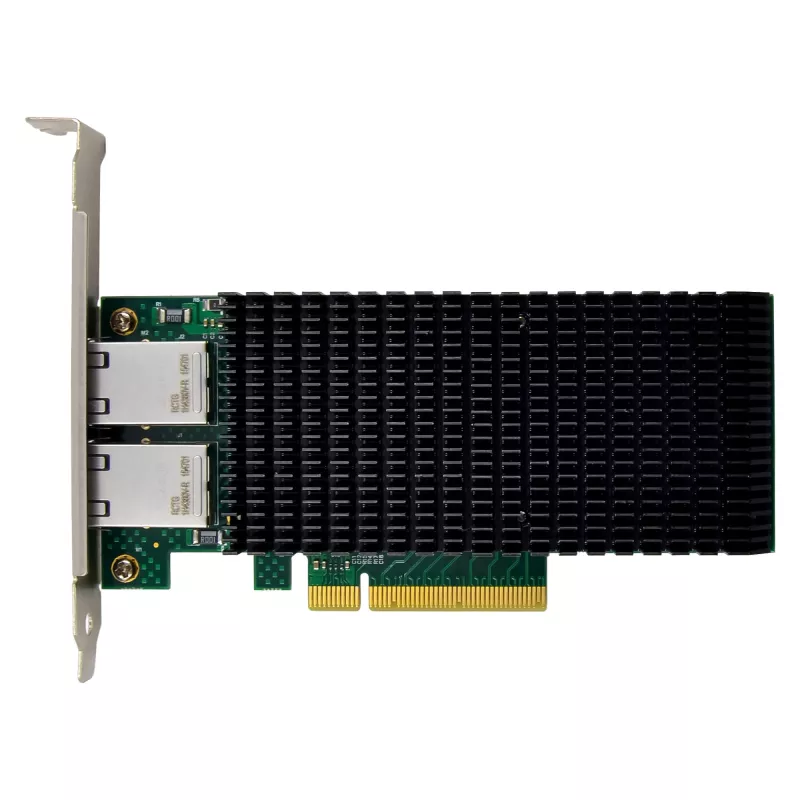

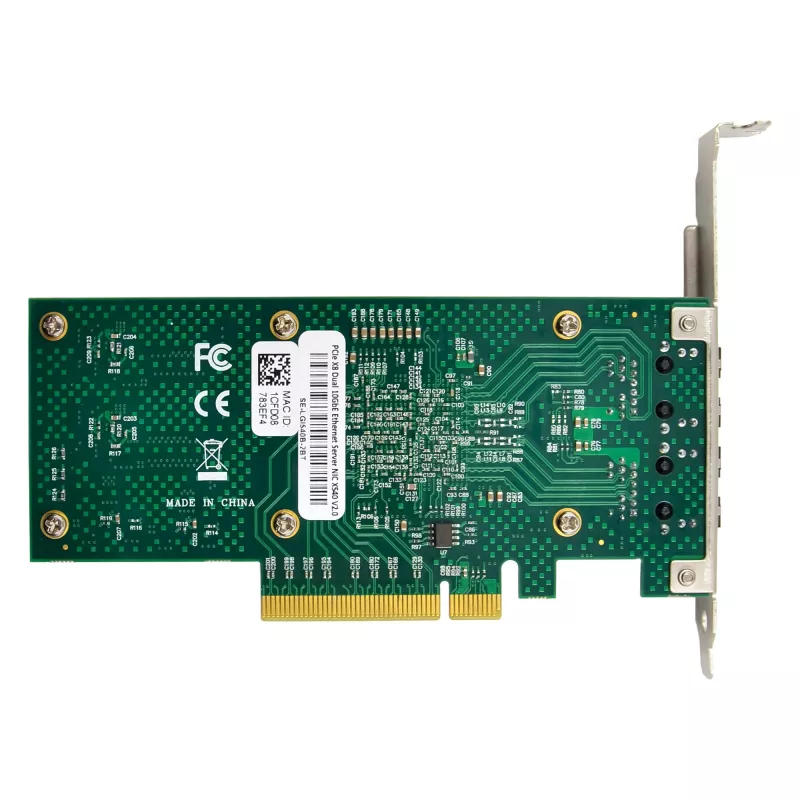

Placa de rede Dual 10-Gigabit InLine, 2x RJ45 10Gb/s, PCIe x8, incl. suporte LP

Dual-port network card with two 10GbE RJ45 ports for maximum performance
Intel X540 chipset for maximum reliability and compatibility
PCIe x8 interface in accordance with revision 2.1 for professional IT environments
Supports VLAN, link aggregation, iSCSI boot and other protocols
Backwards compatible with 1000Base-T networks

The InLine® Dual 10 Gigabit network card offers two high-performance 10GBASE-T ports for the highest data transfer rates in professional networks. It is ideal for servers, workstations and demanding applications with high bandwidth requirements.
With the integrated Intel X540 chipset, the card ensures maximum stability and is compatible with numerous network technologies. These include VLAN tagging, IEEE802.3ad Link Aggregation Control Protocol (LACP), PXE boot as well as iSCSI and FCoE support.
Thanks to the PCIe x8 interface (Rev. 2.1), the card can be flexibly integrated into modern IT infrastructures. Backwards compatibility with 1000Base-T enables a smooth transition to 10GbE networks.
Technical specifications:

Chipset: Intel X540
Interface: PCI Express x8, Revision 2.1
Ports: 2x RJ45 10Gb/s (10GBASE-T)
Network protocols: TCP/IP, UDP/IP, IPSec, iSCSI
Supported standards: IEEE 802.3an, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1P, IEEE 802.3ad
Functions: VLAN, LACP, Layer 2 prioritization, PXE, FCoE, iSCSI boot
Backwards compatible with 1000Base-T
Compatible operating systems: Windows 7 or newer, Server 2008 or newer, Linux kernel ≥ 2.6
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

InLine Dual 10-Gigabit network card, 2x RJ45 10Gb/s, PCIe x8, incl. LP bracket. Host interface: PCIe, Output interface: RJ-45, Host interface gender: Male. Cooling type: Passive, Country of origin: China. Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Linux operating systems supported: Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4,..., Server operating systems supported: Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server.... Width: 160 mm, Depth: 2.43 mm, Height: 120 mm

How to use

Install the card into an available PCIe x8 (or higher) slot on a powered-off system, secure it in the chassis and connect each RJ45 port to the network switch or router using Cat5e or higher cabling. After powering on the system, install the appropriate drivers for your operating system if they do not install automatically. Configure network settings in the OS or management interfaces as required for IP addressing, link aggregation or other network features.

Recommendations

For reliable 10G BASE-T performance, use Cat6 or Cat6a cabling where possible and keep cable runs under 100 metres. Ensure the host system has sufficient PCIe lanes and CPU resources to handle sustained 10Gb/s throughput, and use up-to-date drivers from the vendor for best stability and compatibility.
