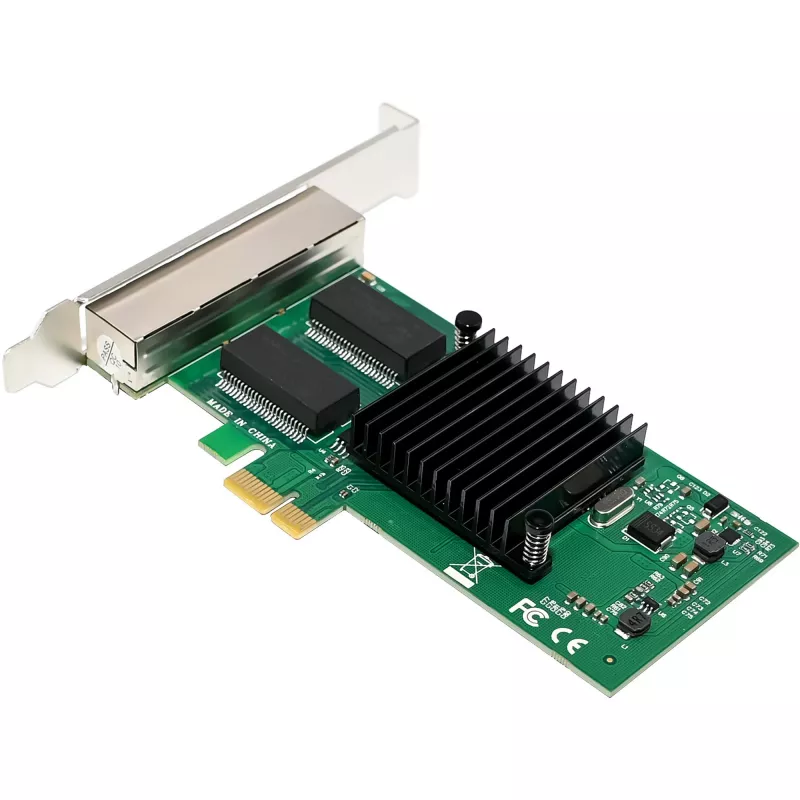

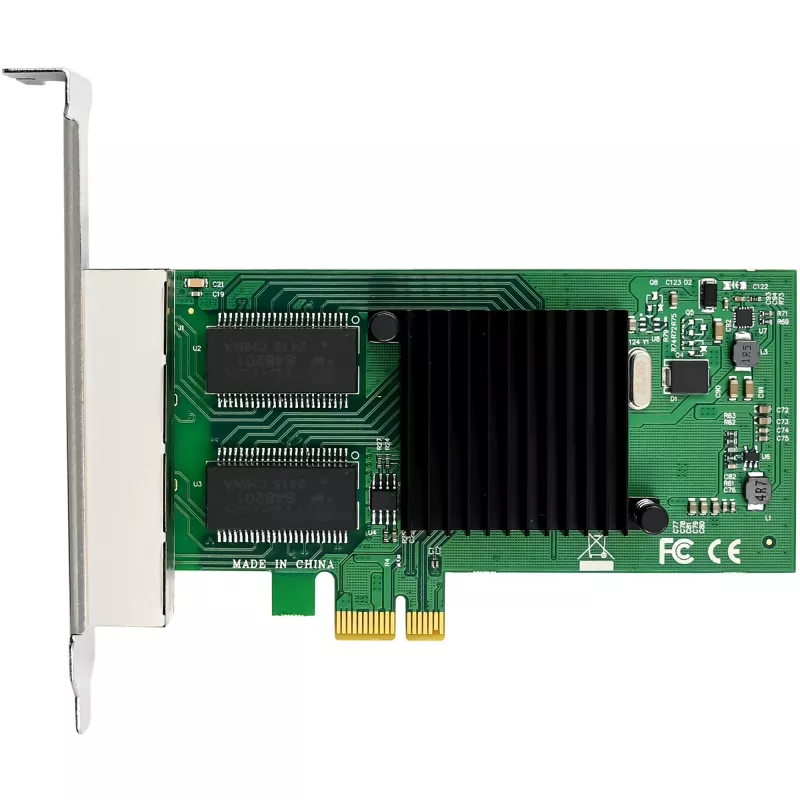

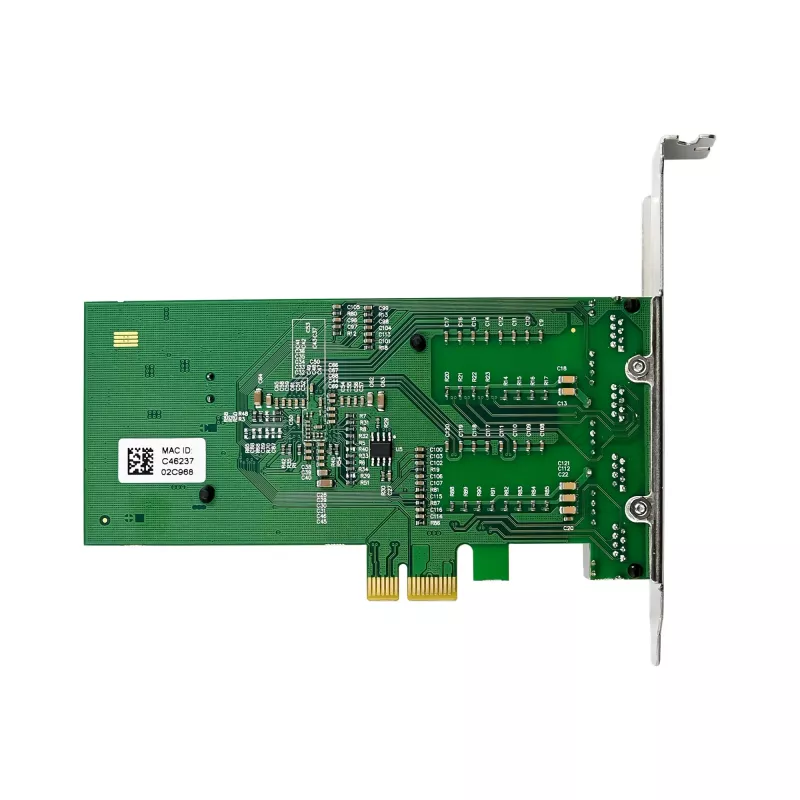

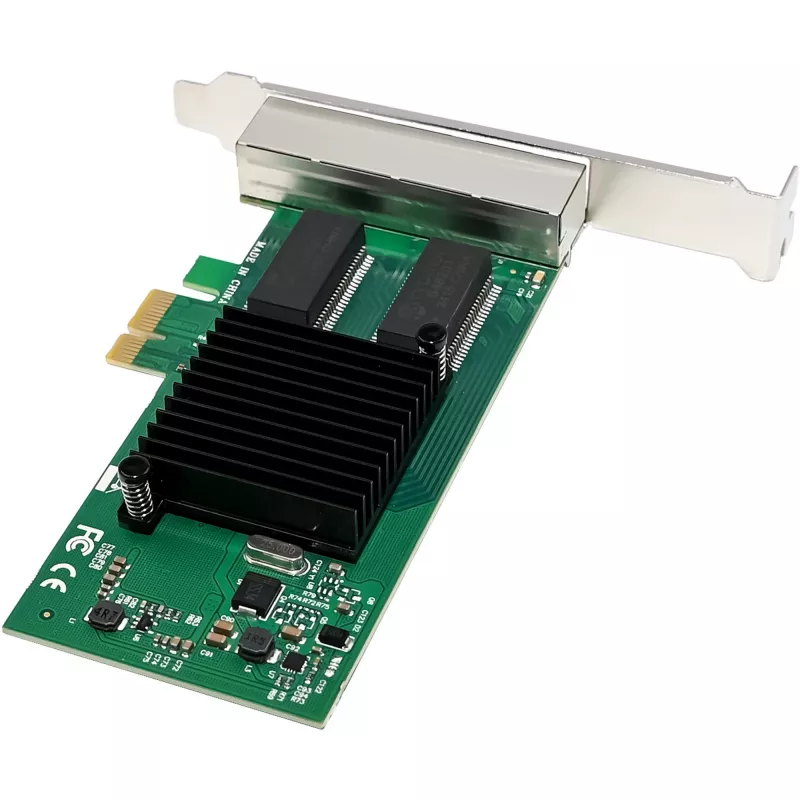

Placa de rede InLine 51127D interna Ethernet 1000 Mbit/s PCI Express

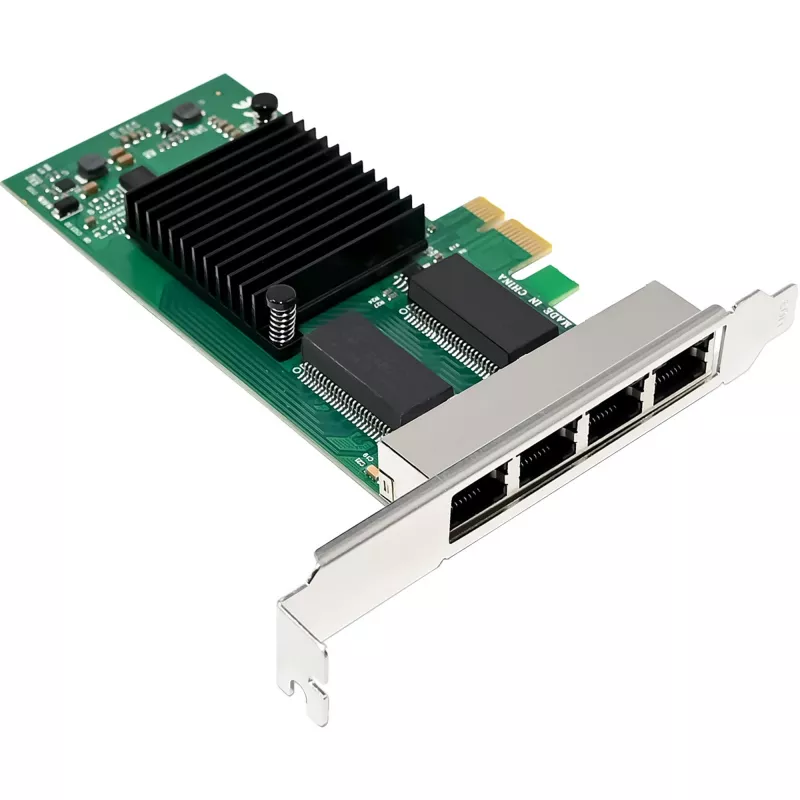

Four RJ45 Gigabit portsfor stable and fast network connections
PCIe x1 interfacefor broad compatibility with modern systems
Supports VLAN (802.1Q), jumbo frames (up to 9K) and flow control
Optimized data transmissionthanks to auto-negotiation and crossover detection (MDI/MDI-X)

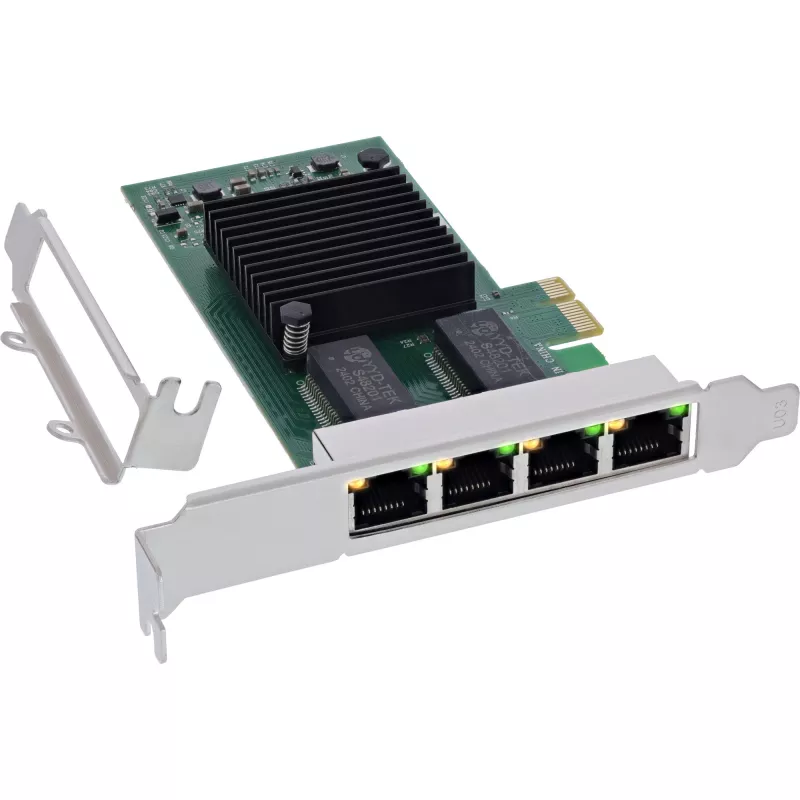

Includes low-profile slot bracketfor flexible mounting options

The InLine® Quad Gigabit Network Cardoffers a powerful and flexible solution for reliable Gigabit connectivityin demanding network infrastructures. It is ideal for companies and professional users who require high bandwidths, low latenciesand a future-proof network connection.
Thanks to PCIe v2.1 (x1), the card achieves a high level of compatibility and supports modern Ethernet standards and fiber optic connectionsfor stable and efficient data transmission. Features such as auto-negotiation, jumbo frames and automatic crossover detection (MDI/MDI-X)optimize performance and facilitate integration into existing networks.
Technical data:

Bus type: PCIe v2.1 (5.0 GT/s) 1-lane
Connection: 4 x RJ45 (copper)
Data rate: 10/100/1000 Mb/s (Gigabit Ethernet)
Supported speeds:
10/100 Mb/s in half-duplex mode
10/100/1000 Mb/s in full duplex mode

Maximum cable length:
10BASE-T: Category-3 or higher (up to 100 m)
100BASE-TX: Category-5 or higher (up to 100 m)
1000BASE-T: Category-5e or higher (up to 100 m)

Chipset: Intel I350AM4
Supported protocols: IPv4, IPv6
Dimensions: 130 mm x 69 mm (PCIe board)

Network & protocol support:

Supported IEEE standards:

IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control)
IEEE 802.3z (Gigabit Ethernet over fiber optic - multimode and singlemode fiber optic cable)
IEEE 1588 protocol and 802.1AS implementation

Features:

Auto-negotiation (10/100/1000 Mb/s)
Support for jumbo frames (up to 9K)
Automatic crossover detection function (MDI/MDI-X)
Interrupt levels INTA, INTB, INTC, INTD, MSI, MSI-X

Operating system support:

Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30

Environmental conditions:

Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 %

Scope of delivery:

1x InLine® Quad Gigabit network card, 4x RJ45 1 Gb/s
1x low-profile slot bracket
1x driver CD
1x instruction manual (German/English)

InLine 51127D. Host interface: PCI Express. Country of origin: Taiwan. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Linux operating systems supported: Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Server operating systems supported: Windows Server 2008 R2, Windows Server 2016, Windows Server 2019. Width: 130 mm, Depth: 69 mm. Package weight: 90 g

How to use

Install the card into an available PCIe x1 (or compatible) slot on a powered-off PC or server and secure it with the supplied bracket. Connect standard Ethernet cables to the RJ45 ports and install the driver from the supplied CD or download the latest driver for your operating system. Configure network settings, VLANs and any required IEEE 1588 timing features within the host OS or network management software. For Linux, ensure the kernel version is 2.6.30 or newer.

Recommendations

Use Category-5e or higher cabling for Gigabit (1000BASE-T) links and keep cable runs within 100 m. Enable jumbo frames only if all devices in the data path support the chosen MTU. Observe the stated operating temperature and humidity ranges for reliable long-term operation.
