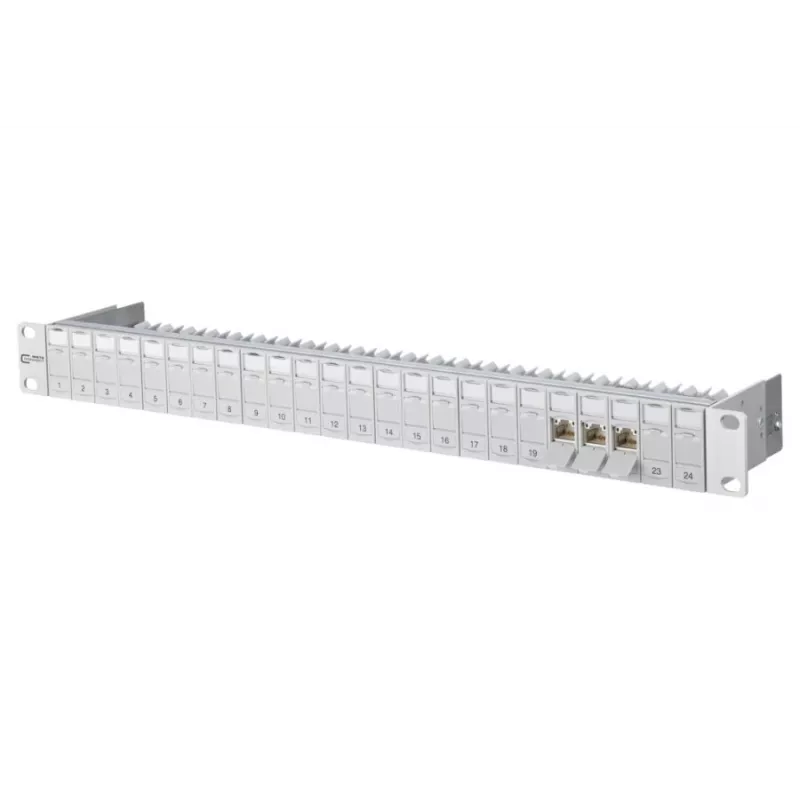

Patch panel blindado METZ CONNECT 130B11P0-E Cat6a 24 portas, montagem em rack 1U, IDC sem ferramentas, T568A/B, 500 MHz, PoE+ 130B11P0-E-90

For high-density installations where every rack unit counts, the METZ CONNECT 130B11P0-E delivers 24 shielded Cat6a ports in a single 1U space. Its tool-less IDC terminations and die-cast zinc shielding set it apart from conventional panels that demand punch-down tools and separate grounding. This panel supports 10GBASE-T up to 500 MHz and all PoE classes, making it a future-ready backbone for enterprise networks.

Highlights

• 24 shielded RJ45 ports in 1U rack-mount form factor
• Tool-less IDC termination accepts AWG 22–26 solid or stranded wire
• Die-cast zinc housing ensures robust shielding and EMI protection
• Supports T568A and T568B wiring schemes
• Complies with ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2, IEC 60603-7-51
• Gold-plated contacts rated for over 750 mating cycles
• Operates from -40°C to +70°C, UL 94 V-0 flammability rating

In daily use

Installers will appreciate the panel's intuitive cable management and clear port labeling. The tool-less IDC blocks reduce termination time by up to 50% compared to traditional punch-down panels, while the die-cast zinc body provides a solid ground path for shielded cabling. With support for PoE, PoE+, and 4PPoE, the panel can power access points, IP cameras, and other devices without additional midspans. The 1U height maximizes port density in crowded racks, and the front-facing ports simplify patching and troubleshooting.

Full specifications

• Product type: Cat6a shielded patch panel, 24 ports, 1U
• Connector type: RJ45 jack, shielded
• Performance: Category 6A, up to 500 MHz
• Termination: Tool-less IDC, AWG 22–26 (solid and stranded)
• Wiring: T568A / T568B
• PoE support: IEEE 802.3af/at/bt (PoE, PoE+, 4PPoE)
• Housing: Die-cast zinc, plastic front
• Contact material: Gold-plated
• Mating cycles: >750
• Mounting: E-DAT module format, 19-inch rack
• Standards: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2, IEC 60603-7-51
• Operating temperature: -40°C to +70°C
• Flammability: UL 94 V-0

Final note

METZ CONNECT's 130B11P0-E combines speed of installation with long-term reliability, making it a smart choice for structured cabling projects that demand Cat6a performance without compromise.
