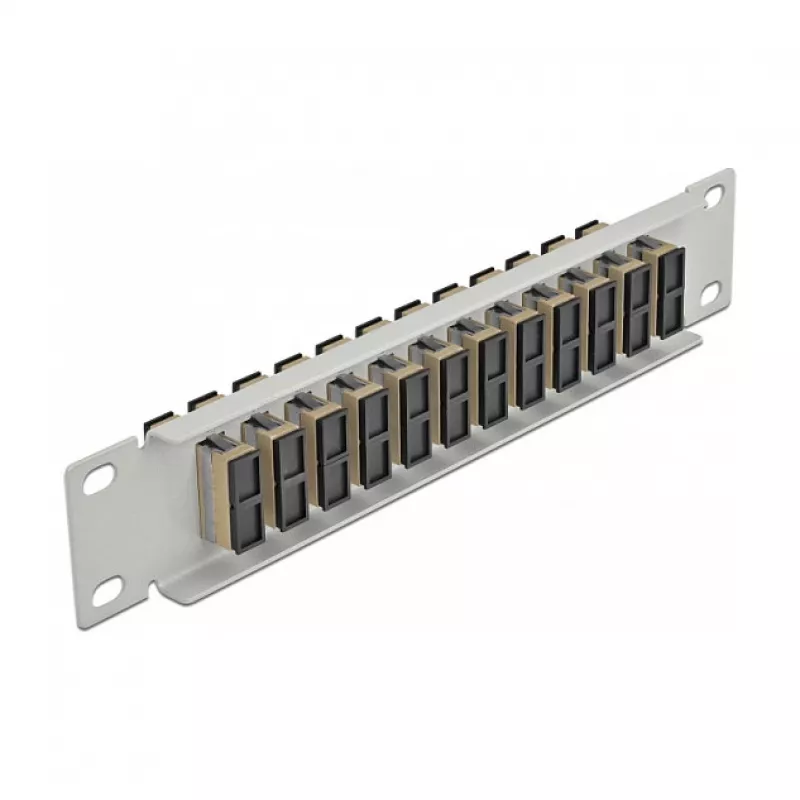

Patch panel de fibra ótica DeLOCK 10 polegadas 12 portas SC Duplex bege 1HE cinzento

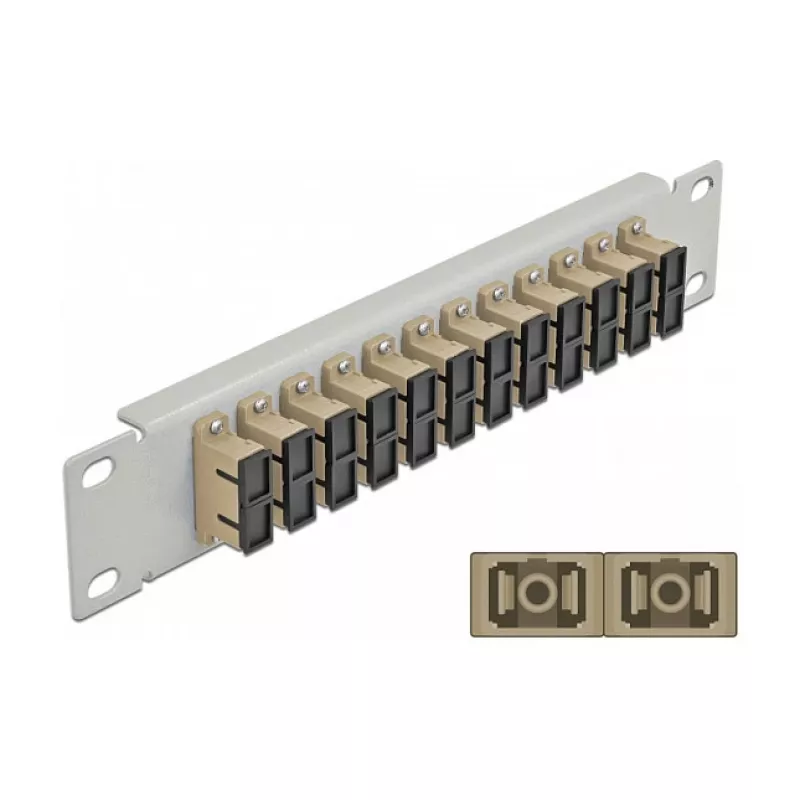

The DeLOCK 10" 1U fiber optic patch panel provides twelve SC Duplex couplers in a metal housing with beige front and grey body, designed for installation in a 10" network cabinet. It allows neat, rack-mounted termination and connection of fiber optic lines and fits standard 10" rack systems.

Advantages

This patch panel groups twelve SC Duplex ports in a compact 1U format, enabling organized fiber routing and easy access to connections. The metal construction offers mechanical protection for the couplers and installed connectors while the standard 10" form factor simplifies mounting in small rack installations. Color-coded front and clear port layout support quick identification during installation and maintenance.

Suitable for

• Termination and distribution of SC Duplex fiber optic cables
• Small 10" network cabinets and rack-mounted fiber installations
• Telecommunications closets, server rooms and data distribution points

Key specifications

• Ports quantity: 12 SC Duplex
• Form factor: 1U, 10" rack mount
• Dimensions (W×H×D): 254 mm × 44 mm × 10 mm
• Product colour: Beige front, Grey body
• Manufacturer: DELOCK, MPN: 66793, EAN: 4043619667932

How to use

Mount the panel into a compatible 10" network cabinet using the supplied mounting points. Insert SC Duplex fiber connectors into the corresponding couplers, ensuring proper alignment and clean connector end faces. Route fiber cables to avoid sharp bends and secure them to relieve strain on the connectors. Verify connections with appropriate fiber test equipment after installation.

Recommendations

Use only clean, undamaged SC Duplex connectors and perform connector cleaning before insertion. Maintain minimum bend radii for the installed fiber cables and conduct optical loss testing to confirm link performance after installation.
