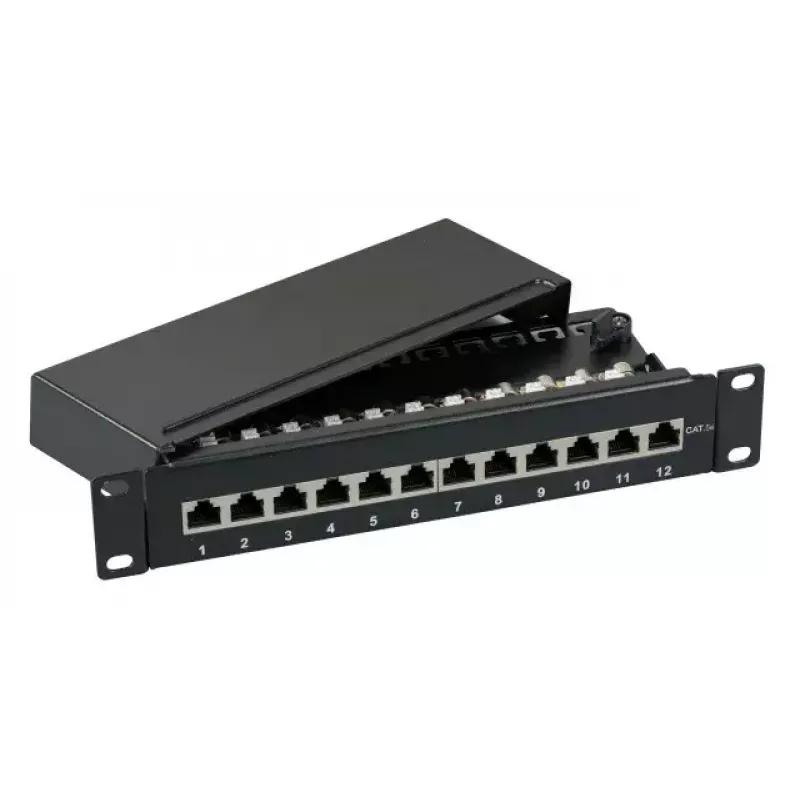

Patch panel EFB Elektronik 37736.12

The EFB Elektronik 37736.12 patch panel is a 1U rack-mounted network component designed for structured cabling environments. It offers 12 ports in a compact grey housing and is built to support high-speed connections up to 5000 Mbit/s. Compatible with Cat6 cabling and accepting AWG 22/24 conductor sizes, this patch panel provides a standardized front patching interface for organized cable management in server rooms and communication cabinets.

Advantages

The patch panel delivers a space-efficient 1U form factor that fits standard equipment racks while providing 12 clearly accessible ports. Support for Cat6 ensures reliable performance for current Ethernet standards up to the stated data rate, and compatibility with AWG 22/24 simplifies termination with commonly used cable types. The grey finish offers unobtrusive integration into existing rack environments and helps maintain a tidy and professional network appearance.

Suitable for

• Small to medium office network patching
• Server room horizontal cabling consolidation
• Telecommunications and data closet patch bays
• Structured cabling projects using Cat6 cabling

Key specifications

• Rack units: 1U
• Number of ports: 12
• Supported cable category: Cat6
• Maximum data rate: 5000 Mbit/s
• Supported conductor sizes: AWG 22/24
• Colour: Grey

How to use

Mount the patch panel into a standard 19-inch rack occupying a single U of space. Terminate Cat6 cables onto the rear connection points following T568A or T568B wiring standards as appropriate for your network. Once cables are terminated and secured, route patch cords from the front ports to switches, routers or other active equipment. Ensure proper cable management and strain relief to maintain signal integrity and to facilitate future moves, adds or changes.

Recommendations

For best performance, use certified Cat6 cables and maintain recommended bend radii. Verify terminations with a cable tester after installation and label both ends of each patch cord or permanent link to simplify troubleshooting and maintenance.
