Phoenix Contact ZBF 5 Tiras de marcação dentadas - Branco - 10 marcadores - Passo 5 mm - 1050017:0071

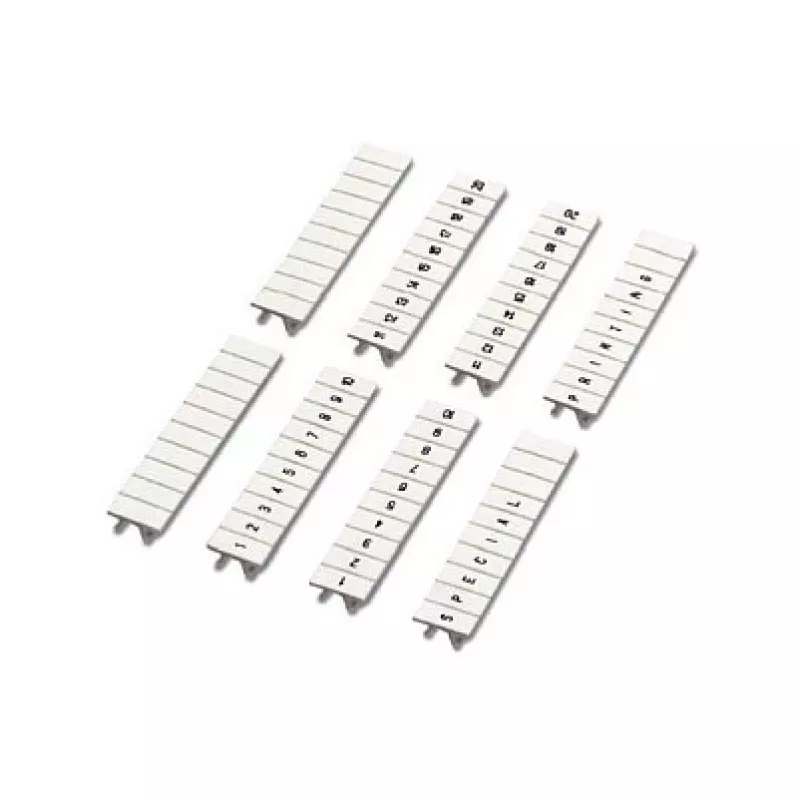

The Phoenix Contact ZBF 5 Zack Marker Strip is a high-quality terminal block marking solution designed for clear and permanent identification of electrical connections. This strip contains 10 individual markers with consecutive numbers 1 to 10, making it ideal for organized wiring in control cabinets, industrial panels, and automation systems. Manufactured from durable polyamide (PA), the markers offer excellent resistance to wiping, solvents, and UV radiation, ensuring long-lasting legibility even in demanding environments.

Advantages

• Clear consecutive numbering simplifies circuit tracing and maintenance.
• Snap-in design for quick and secure mounting into flat marker grooves.
• Halogen-free and silicone-free materials for safe use in sensitive applications.
• Wide operating temperature range from -40 °C to 100 °C.
• Compatible with Phoenix Contact CMS-P1-PLOTTER and PLOTMARK systems for custom marking.

Suitable for

• Terminal block identification in industrial control panels
• Electrical cabinets and switchgear
• Automation and process control systems
• Building infrastructure wiring

Key specifications

• Product Type: Zack Marker Strip
• Series: ZBF 5
• Labeling: Consecutive numbers 1-10
• Color: White
• Material: Polyamide (PA)
• Marker Pitch: 5 mm
• Terminal Block Compatibility Width: 5.2 mm
• Number of Markers per Strip: 10
• Print Direction: Horizontal
• Mounting Type: Snap into flat marker groove
• Flammability Rating: UL 94 V2
• Operating Temperature Range: -40 °C to 100 °C
• Wiping Resistance: DIN EN 61010-1
• Solvent Resistance: DIN EN 61010-1
• UV Resistance: DIN EN 61010-1
• Halogen-free: Yes
• Silicone-free: Yes
• Markable With: CMS-P1-PLOTTER, PLOTMARK

Recommendations

For optimal results, use with Phoenix Contact terminal blocks of 5.2 mm width. Custom marking can be applied using compatible Phoenix Contact plotting systems.
