Placa de interface/adaptador Lenovo 7Y37A01093 interno M.2

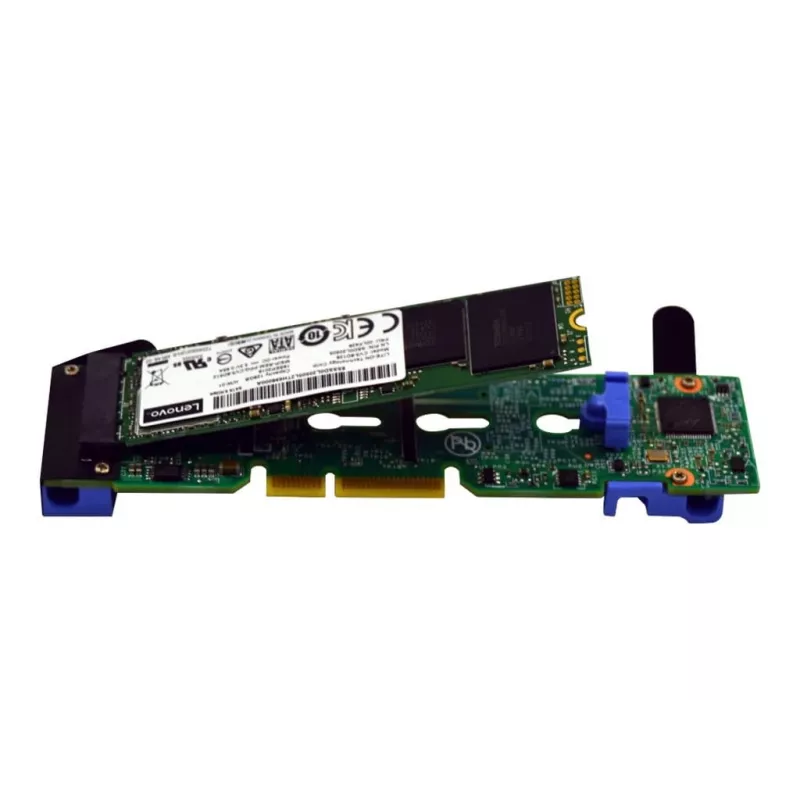

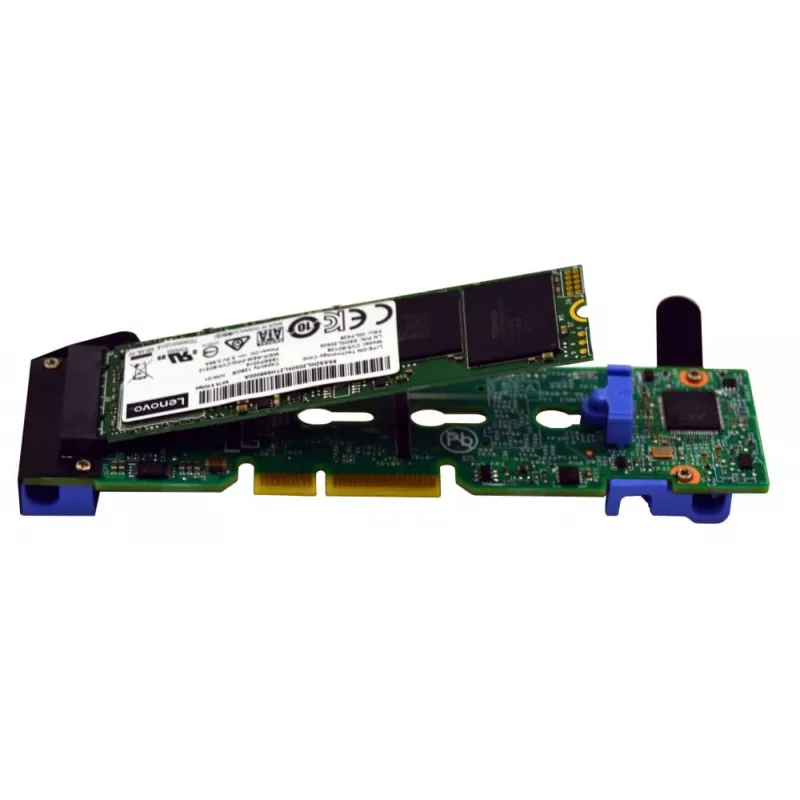

The Lenovo Interface Card Adapter Internal M.2 (7Y37A01093) is an internal M.2 adapter designed to install M.2 solid-state drives into Lenovo ThinkSystem servers. The adapter connects to a dedicated slot on the system board and enables the use of M.2 drives as an operating system boot solution. When two M.2 drives are installed and supported by the server, they are configured by default as a RAID-1 mirrored pair for redundancy.

Advantages

This internal M.2 adapter supports M.2 host and output interfaces, is lightweight at 0.018 kg, and is compatible with Lenovo ThinkSystem M.2 enablement kits. It supports common RAID modes (RAID-0, RAID-1, JBOD) when used with appropriate system firmware and components, providing options for performance, redundancy, or simple passthrough. The adapter’s compact design allows installation into a dedicated system-board slot without occupying larger drive bays.

Suitable for

• Installing a single M.2 SSD in Lenovo ThinkSystem servers
• Configuring two M.2 SSDs as RAID-1 mirrored pair for OS boot redundancy
• Use in systems requiring a compact internal M.2 interface adapter

Key specifications

• Manufacturer: Lenovo
• Model / MPN: 7Y37A01093
• Host interface: M.2
• Output interface: M.2
• Supported RAID modes: RAID-0, RAID-1, JBOD (when supported by system)
• Weight: 0.018 kg
• Installed: internal (fits dedicated system-board slot)
• Product colours: Black, Blue, Green
• EAN: 889488433544

How to use

Install the adapter into the dedicated M.2 adapter slot on the ThinkSystem server system board according to the server hardware documentation. Insert compatible M.2 SSD(s) into the adapter and secure them following the mounting instructions. If installing two M.2 drives, the server will typically configure them as a RAID-1 mirrored pair by default; adjust RAID settings in the server firmware or management interface if a different configuration (RAID-0 or JBOD) is required. Ensure the server firmware and any required enablement kits are present and supported before configuring drives.

Recommendations

Use Lenovo-supported M.2 enablement kits and follow ThinkSystem installation guides. Verify firmware and RAID controller support for desired RAID modes and perform regular backups even when using RAID-1 for redundancy.
