Placa de interface DeLOCK 95266 interna RJ-45

The DeLOCK 95266 is a Mini PCIe interface card that adds one Gigabit LAN RJ45 port to a compatible system. The module is designed for installation in a Mini PCI Express slot and includes a slot bracket so the RJ45 connector can be routed to the computer chassis. The card is manufactured in a form that can be shortened from full size to half size using the perforation, providing flexibility for different system layouts.

Advantages

The card provides a standard Gigabit RJ45 network port for systems with a free Mini PCIe slot. Its convertible full-size/half-size design allows installation in systems with different bracket heights. The integrated Mini PCI Express host interface enables direct connection to the motherboard without additional adapters.

Suitable for

Key specifications

How to use

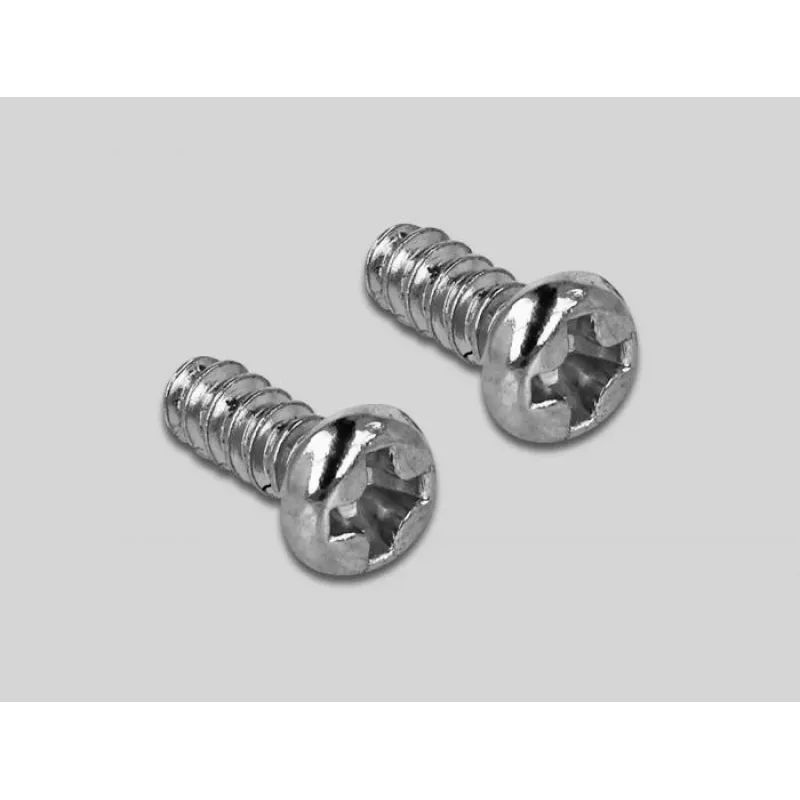

Power off the computer and open the chassis. Insert the DeLOCK 95266 card into an available Mini PCIe slot and secure it with the appropriate screw. If required, shorten the card to half size along the provided perforation before installation and attach the slot bracket so the RJ45 connector is accessible from the case rear. Close the chassis and power on the system; install drivers if the operating system does not automatically recognize the new network interface.

Recommendations

Ensure the system is powered down and unplugged before handling internal components. Verify driver availability from the system or OS vendor if automatic installation fails. Use the half-size configuration only when full-size clearance is not available.
