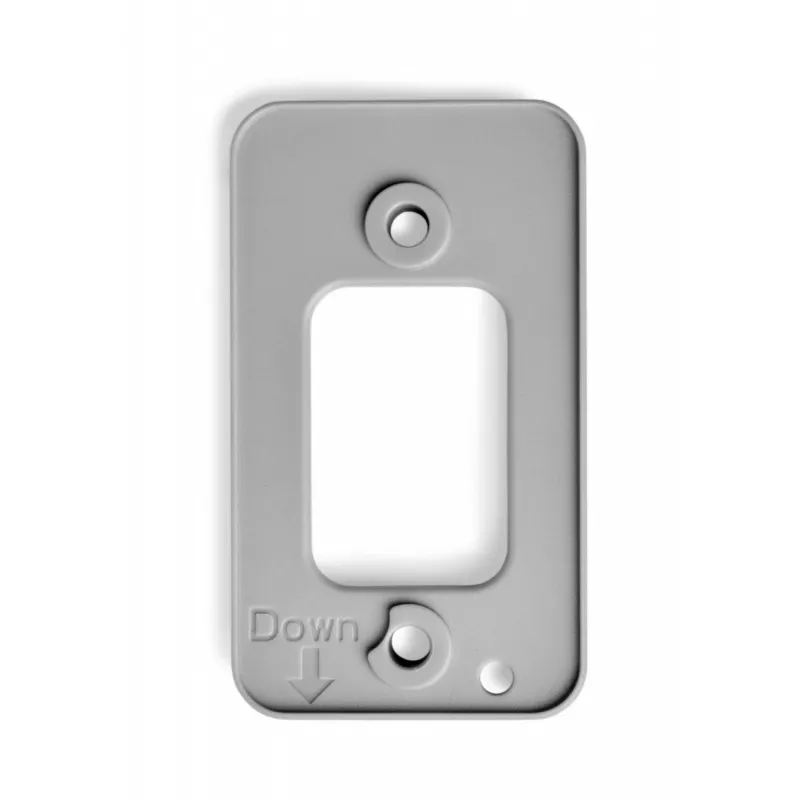

Placa de montagem SystemHouse Solutions xCR-S G2 44280280, placa de fixação para componentes elétricos e AVAC

SystemHouse Solutions Installation Plate xCR‑S G2 is a mounting plate engineered to provide a flat, stable surface for securing electrical and HVAC components in residential and commercial installations. Crafted for professional use, the plate supports attachment of junction boxes, controllers, valves, transformers and cable routing hardware to simplify organization and improve service access. Its design focuses on durability, ease of mounting and compatibility with common mounting brackets and enclosures.

Advantages

The installation plate offers a rigid, corrosion-resistant surface that reduces installation time by providing predefined mounting points and clearance for cable management. Its uniform flatness and hole pattern enable consistent alignment of components and brackets, while the robust construction supports weight and vibration typical in HVAC and electrical systems. The plate is sized to fit standard installation cavities and to facilitate neat, serviceable layouts.

Suitable for

• Mounting control panels, junction boxes and small enclosures
• Installing HVAC valves, controllers and actuators
• Securing transformers, relays and terminal blocks
• Organizing cable routing and fastening brackets in service spaces

Key specifications

• Material: durable, corrosion-resistant metal suitable for indoor utility spaces
• Surface: flat mounting surface with predefined hole pattern for component attachment
• Compatibility: designed for use with common electrical and HVAC mounting accessories and brackets
• Load capacity: suitable for supporting typical small-to-medium electrical and HVAC components
• Finish: protective coating to resist wear and environmental exposure in service areas

How to use

Position the installation plate on the intended mounting surface and secure it using appropriate fasteners for the substrate (e.g., screws into studs or anchors for masonry). Align the plate so that required service clearances and cable entry points are accessible. Attach electrical and HVAC components to the plate using compatible screws or brackets, following manufacturer torque and spacing recommendations for each component. Route and secure cables using cable ties or clamps to avoid strain on terminations, and verify that all mounted equipment has adequate ventilation and service access.

Recommendations

Use suitable corrosion-resistant fasteners for the mounting surface and confirm component weight and vibration conditions before final installation. Maintain clearances for service access and comply with applicable electrical and HVAC installation codes and manufacturer instructions.
