Placa de parede B-Tech SYSTEM X BT8380-JPK/B

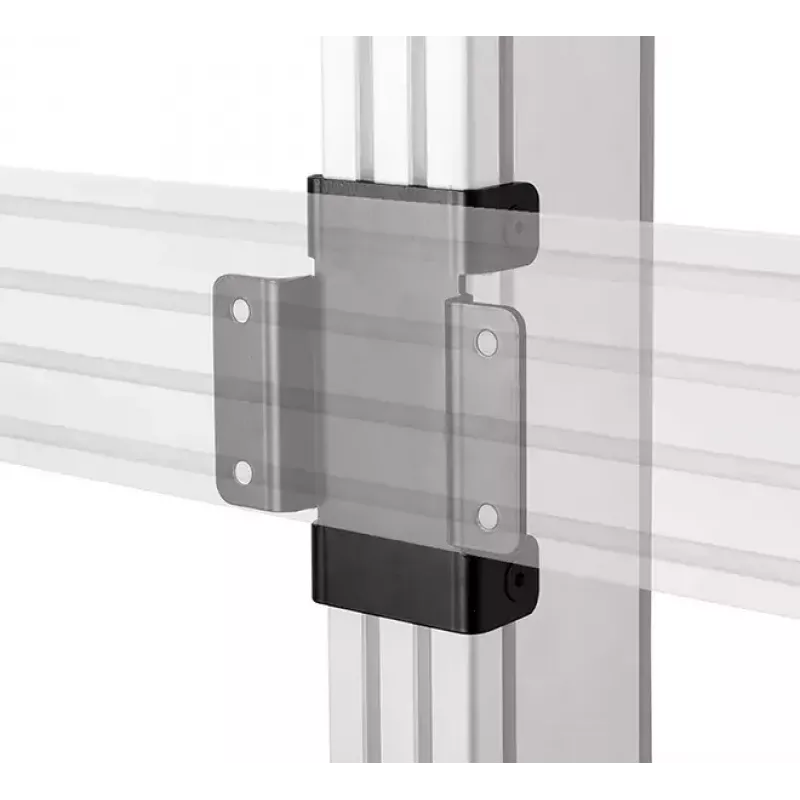

The B-Tech SYSTEM X BT8380-JPK joining plate connects BT8390 mounting rails to BT8380 support columns, enabling assembly of SYSTEM X freestanding, mobile or bolt-down video wall structures. Manufactured from durable steel with a black finish, the plate measures 140.8 mm (width) x 57 mm (depth) x 158 mm (height) and is supplied as a single-piece kit. Sliding nuts and countersunk screws are included to allow quick fitting and to permit the mounted rail to be positioned anywhere along the column length.

Advantages

The joining plate provides a robust steel connection between mounting rails and support columns, offering adjustable positioning along the column thanks to supplied sliding nuts and countersunk screws. Its compact dimensions and black finish make it suitable for discreet installations, while single-piece supply simplifies inventory and installation planning.

Suitable for

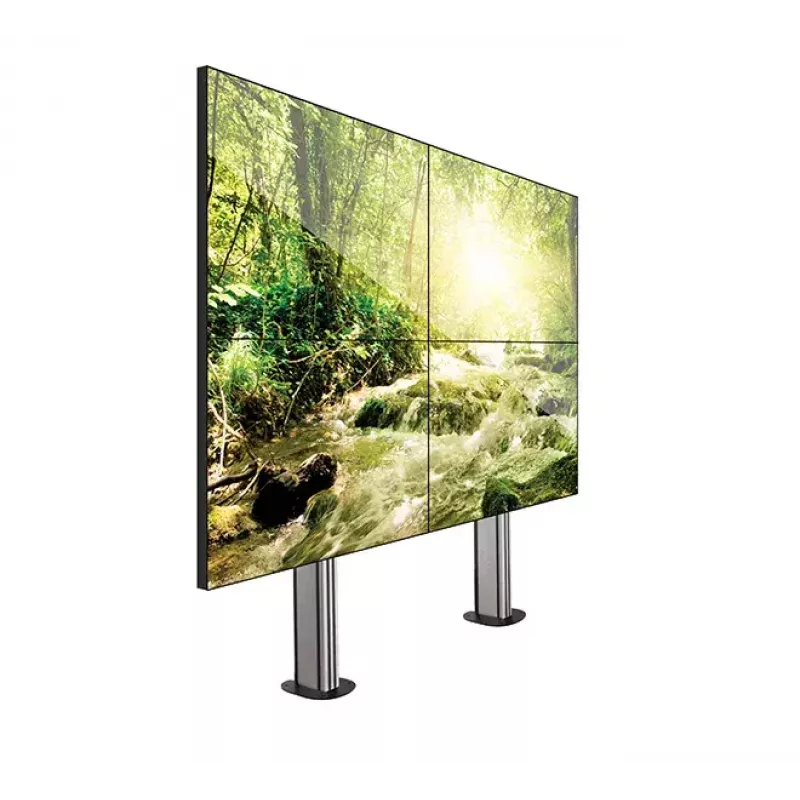

• Assembling SYSTEM X freestanding video walls
• Mounting mobile video wall units
• Installing bolt-down video wall solutions
• Connecting BT8390 rails to BT8380 support columns

Key specifications

• Material: Steel
• Finish: Black
• Width: 140.8 mm
• Depth: 57 mm
• Height: 158 mm
• Pack quantity: 1 piece
• Includes sliding nuts and countersunk screws for adjustable mounting

How to use

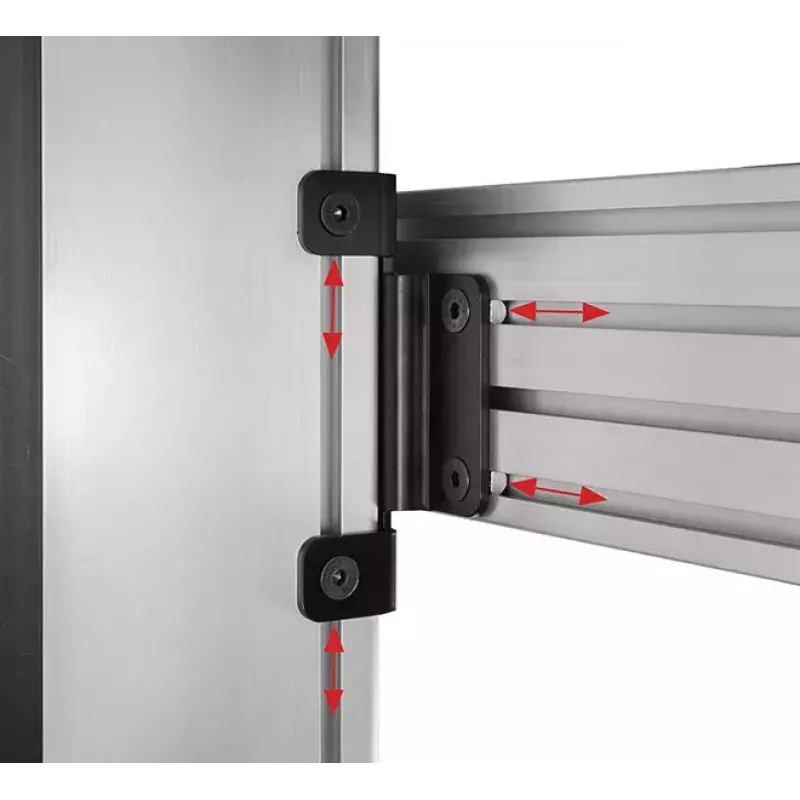

Position the joining plate against the BT8380 support column and align the BT8390 mounting rail. Use the supplied sliding nuts in the column channel and secure the plate with the countersunk screws, allowing the rail to be placed at the desired height along the column. Tighten screws to ensure a firm connection and check alignment before finalising the assembly. For installations with multiple rails, repeat these steps for each rail.

Recommendations

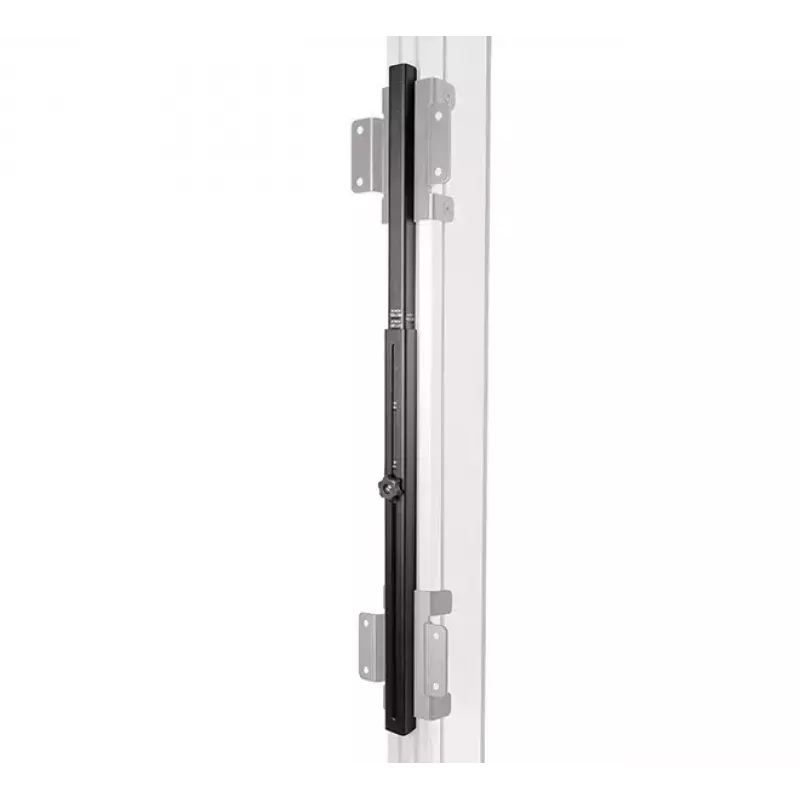

For quicker alignment of multiple rails when installing video walls, consider using the BT8390-SP row height spacer (sold separately) to position rails consistently without measuring each plate location.
