Placa de parede Lindy Multi AV 60220 HDMI VGA USB A 3,5 mm

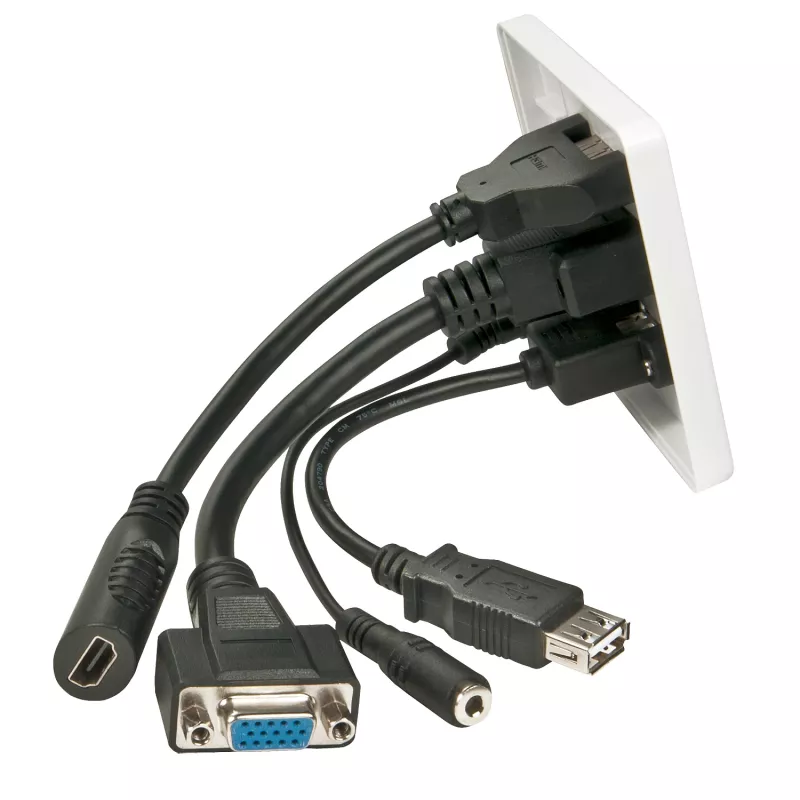

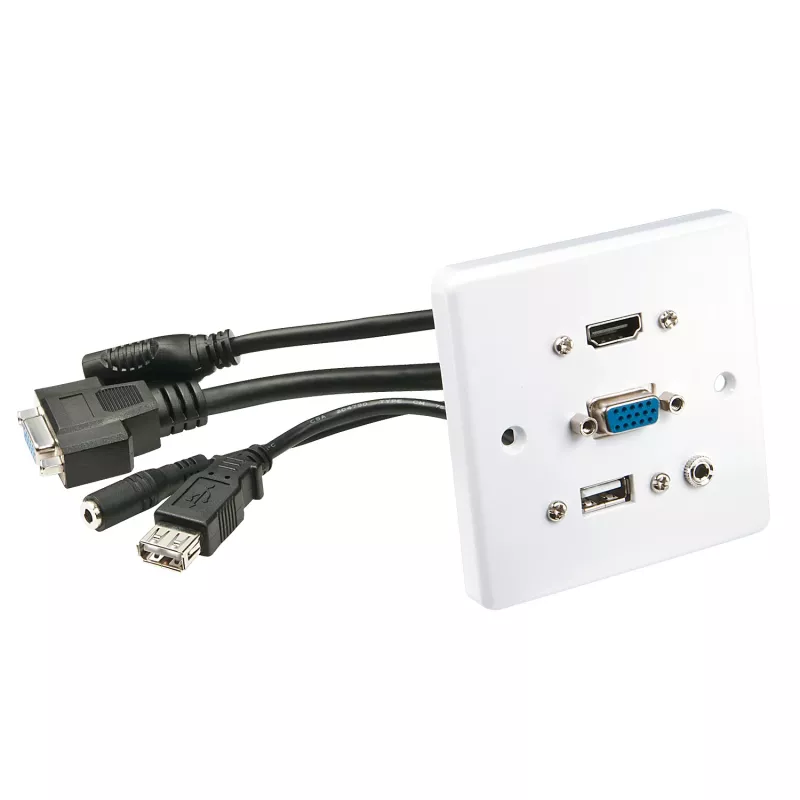

The Lindy Multi AV Faceplate is a single-gang wall plate in white plastic that integrates HDMI, VGA, USB A and 3.5 mm audio sockets. Measuring 86 x 86 mm and supplied with 10 cm trailing leads, it is a ready-to-install solution for tidy AV connections without soldering; simply connect the cables and route them through the wall.

Advantages

The faceplate consolidates multiple common AV connectors in one compact module, reducing visible cabling and simplifying installation. Its pre-attached 10 cm leads remove the need for on-site soldering or crimping, and the standard single-gang dimensions make it compatible with typical wall boxes. The white plastic finish provides a neutral appearance for home or office environments.

Suitable for

• Conference rooms and meeting spaces
• Home entertainment systems
• Classrooms and training facilities
• Workstations requiring HDMI, VGA, USB A or 3.5 mm audio connections

Key specifications

• Connectors: HDMI, VGA, USB A, 3.5 mm audio
• Dimensions: 86 mm x 86 mm (single gang)
• Trailing leads length: 10 cm
• Colour: White
• Brand: Lindy, MPN: 60220, EAN: 4002888602204

How to use

Turn off power to the installation area, remove the existing wall plate if present, and position the Lindy Multi AV Faceplate into a standard single-gang box. Feed the trailing leads through the wall box and secure the faceplate with screws. Connect corresponding device cables to the HDMI, VGA, USB A and 3.5 mm sockets, and verify signal and audio operation before closing.

Recommendations

For best results, use shielded HDMI and VGA cables for longer runs and route cables away from power conduits to minimise interference. Ensure connectors are fully seated and avoid excessive bending of the trailing leads to maintain signal integrity.
