Placa de parede / tampa de interruptor MetzConnect 130829-01-I, branco pérola, 85×85 mm, 36 mm de profundidade

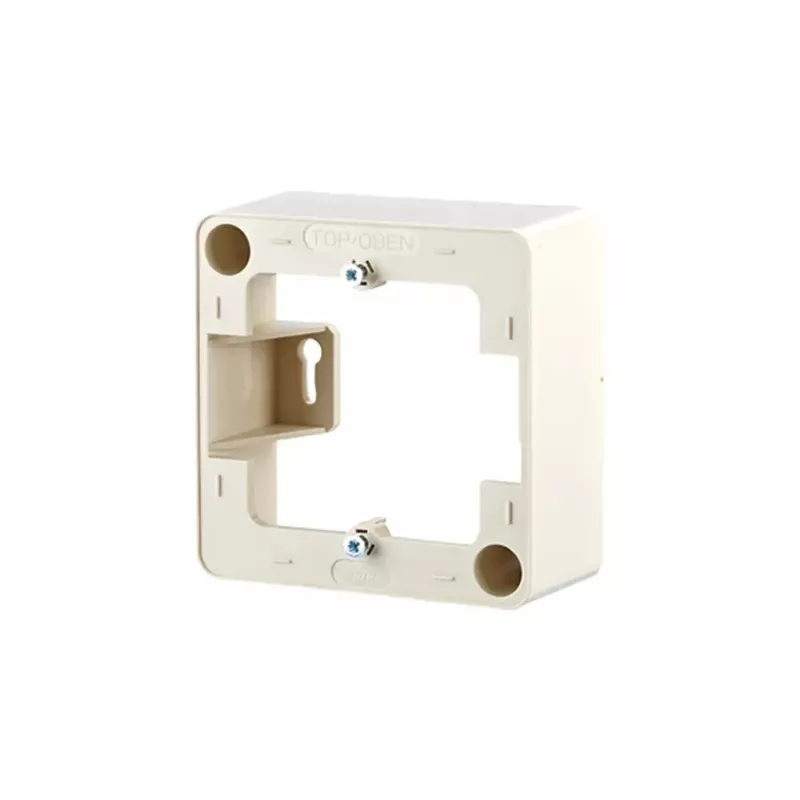

MetzConnect 130829-01-I is a single-piece surface mount frame and switch cover in pearl white, intended to convert standard 85×85 mm flush-mounted outlets into surface-mounted installations. The frame measures 85 mm by 85 mm with a depth of 36 mm, and is supplied as one piece. It provides a neat finished appearance for wall-mounted switches, sockets or network modules while protecting the installation and hiding wall openings.

Advantages

The structured matt surface reduces visible fingerprints and minor scratches, while the pearl white finish (RAL 1013) offers a neutral, unobtrusive look. The frame supports additional fastening at a 60 mm hole distance for secure attachment to different wall types. A single-piece design simplifies installation and maintenance and is compatible with standard 85×85 mm modules commonly used in network and electrical installations.

Suitable for

• Converting flush-mounted electrical switches and sockets to surface-mounted installations
• Covering and securing network modules and communication outlets on walls
• Retrofit and renovation projects where wall depth or cabling requires a surface frame
• Installations requiring a neutral pearl white finishing frame (RAL 1013)

Key specifications

• Material: rigid mounting frame suitable for wall installations
• Finish: structured matt surface in pearl white (RAL 1013)
• Dimensions: 85 mm × 85 mm footprint, 36 mm depth
• Mounting: surface-mount conversion for standard 85×85 mm modules with additional fastening at 60 mm hole distance
• Configuration: single-piece frame supplied as 1 unit

How to use

Position the MetzConnect surface mount frame over the existing flush-mounted outlet or prepared wall opening, align the module cutouts and secure the frame using screws at the provided 60 mm hole spacing or appropriate fasteners for the wall substrate. Insert the switch, socket or network module into the frame and fasten the module according to the module manufacturer's instructions. Ensure that electrical power is switched off before any installation or maintenance activity.

Recommendations

For reliable mounting, use screws and wall anchors appropriate for the wall material and respect local electrical installation standards. Match the frame with compatible 85×85 mm modules from MetzConnect or other standard manufacturers to ensure correct fit and function.
