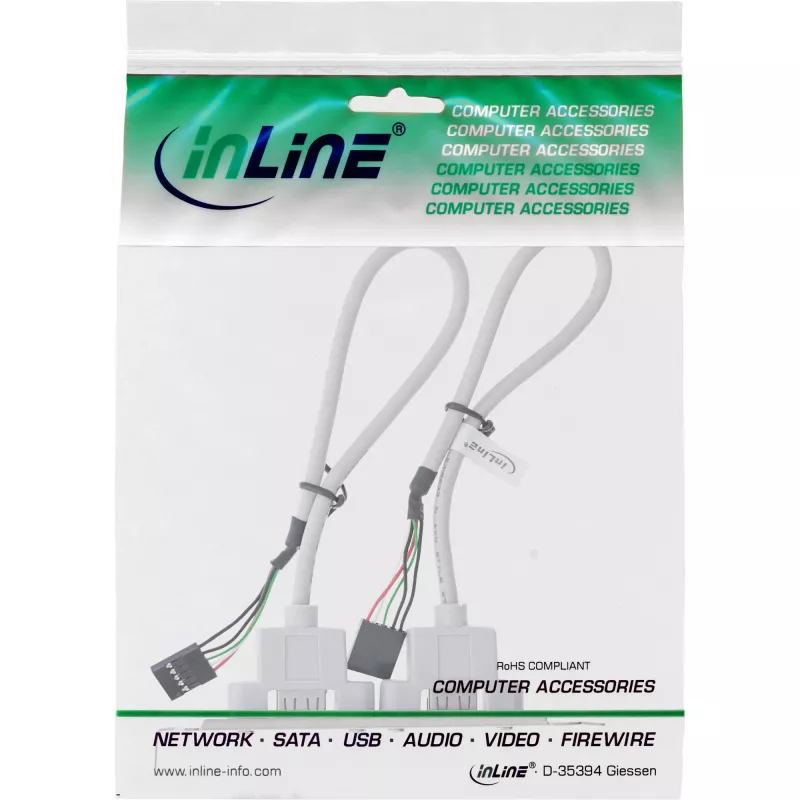

Placa de slot InLine 2x USB 2.0 Type-A fêmea para 2x header interno de 5 pinos 0,3m

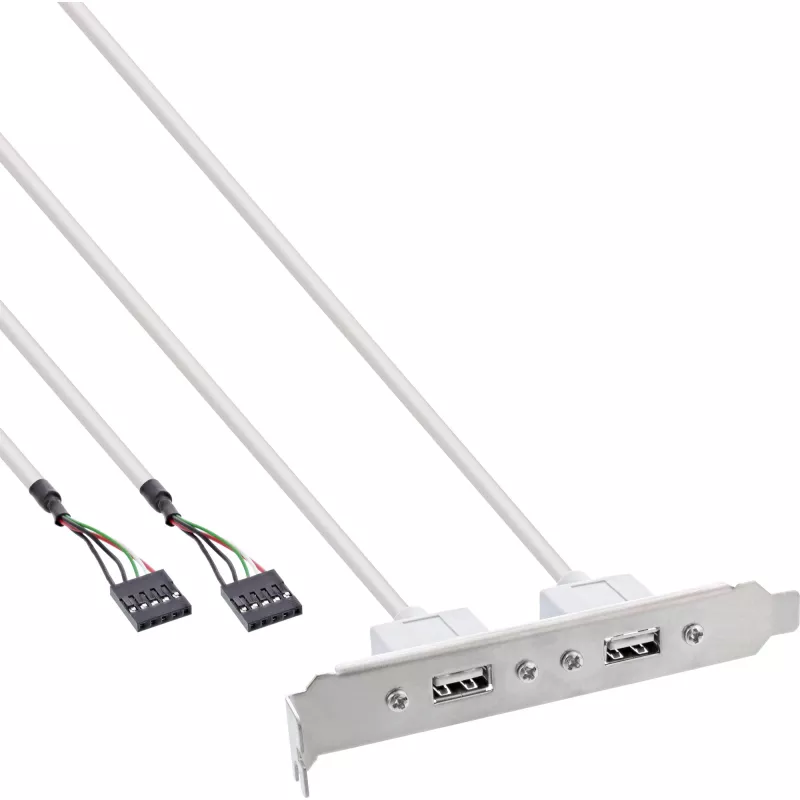

This InLine Slot Bracket provides two USB 2.0 Type A female ports mounted on a slot bracket with an attached 0.3 m cable that terminates in two 5‑pin internal headers for connection to a motherboard. It is designed to add external USB 2.0 ports to a PC chassis where front-panel or rear I/O expansion is required, maintaining compatibility with standard USB 2.0 hosts.

Advantages

The slot bracket offers a compact, pre-assembled solution for adding two USB 2.0 Type A ports without modifying the motherboard. The 0.3 m cable with two separate 5‑pin headers enables straightforward connection to compatible internal USB headers. The unit uses standard Type A female connectors and supports USB 2.0 data transfer rates.

Suitable for

Key specifications

How to use

Install the slot bracket into an available expansion slot in the computer chassis and fasten it with the slot screw. Route the attached 0.3 m cable to the motherboard and connect each 5‑pin header to the corresponding internal USB 2.0 header, observing the correct pin orientation. After connection, power on the system and verify that the operating system recognizes the added USB ports.

Recommendations

Use this bracket with motherboards that provide two separate 5‑pin internal USB 2.0 headers; consult the motherboard manual for header pinout and orientation to avoid incorrect connections. For USB 3.x devices, use an appropriate USB 3.0/3.1 solution, as this product supports USB 2.0 speeds only.
