Placa gráfica GAINWARD GeForce RTX 5060 Ti Ghost OC — NVIDIA GeForce RTX 5060 Ti, 16 GB GDDR7, 128-bit, PCIe 5.0

The Gainward GeForce RTX 5060 Ti Ghost is a mid-range graphics card designed for reliable cooling and compact builds. Its dual-fan cooling system and efficient heat-dissipation components keep temperatures under control while a black shroud with subtle side RGB lighting integrates smoothly into many PC designs. The Ghost Series targets users who want high-performance RTX 50 Series features in a restrained, space-conscious form factor.

Advantages

Dual fans with a ZERO RPM mode provide quiet operation during light tasks and strong airflow under load. The Mega Copper Base and composite heat pipes improve heat absorption and transfer across the GPU and DRAM. Reinforced fan blades reduce vibration and noise. Native support for NVIDIA technologies such as DLSS 4, full ray tracing, Reflex 2, and NVIDIA Studio ensures accelerated gaming, content creation, and AI-enhanced features on GeForce RTX 50 Series hardware.

Key specifications

• GPU model: NVIDIA GeForce RTX 5060 Ti, 16 GB GDDR7
• Memory interface: 128-bit
• Memory clock: 14000 MHz effective (28 Gbit/s)
• Maximum resolution: 7680 x 4320 pixels
• PCI Express: PCI Express 5.0 (PCIe Gen 5)

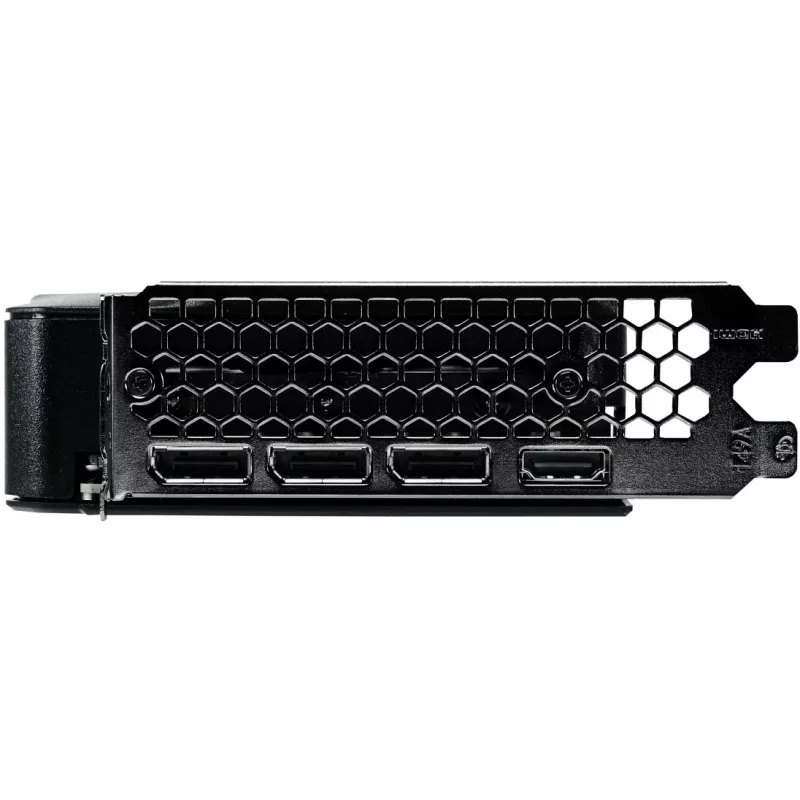

• Display outputs: 1 x HDMI, 3 x DisplayPort
• Power connector: 1 x 8-pin
• API support: DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.4
• Dedicated hardware: RT Cores (ray tracing), Tensor Cores (AI/DLSS)

How to use

Install the Gainward GeForce RTX 5060 Ti Ghost into a compatible PCIe 5.0 x16 slot on a motherboard, connect the single 8-pin power cable from the PSU, and secure the card in the case. Connect display cables to the HDMI or DisplayPort outputs. Install the latest Game Ready or Studio drivers from NVIDIA or Gainward to enable DLSS 4, ray tracing, and other GPU features. Ensure adequate case airflow and a sufficiently rated power supply for stable operation.

Recommendations

For optimal performance, use a modern PSU with the recommended wattage for your full system, keep GPU drivers up to date, and enable the ZERO RPM fan mode for quieter idle operation. When using ray tracing or DLSS 4 features, monitor thermals and ensure good case ventilation for sustained workloads.
