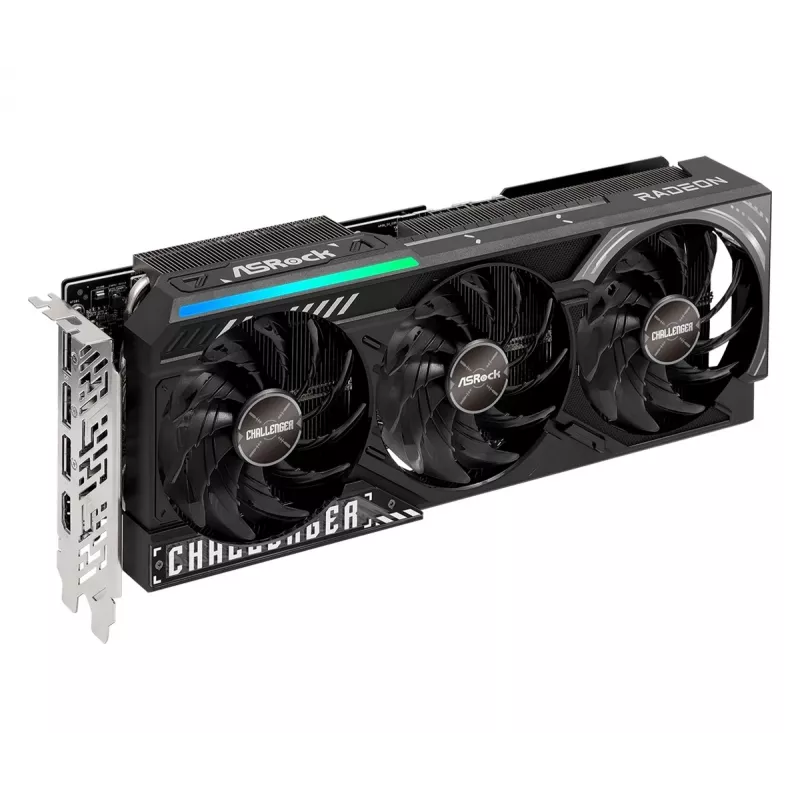

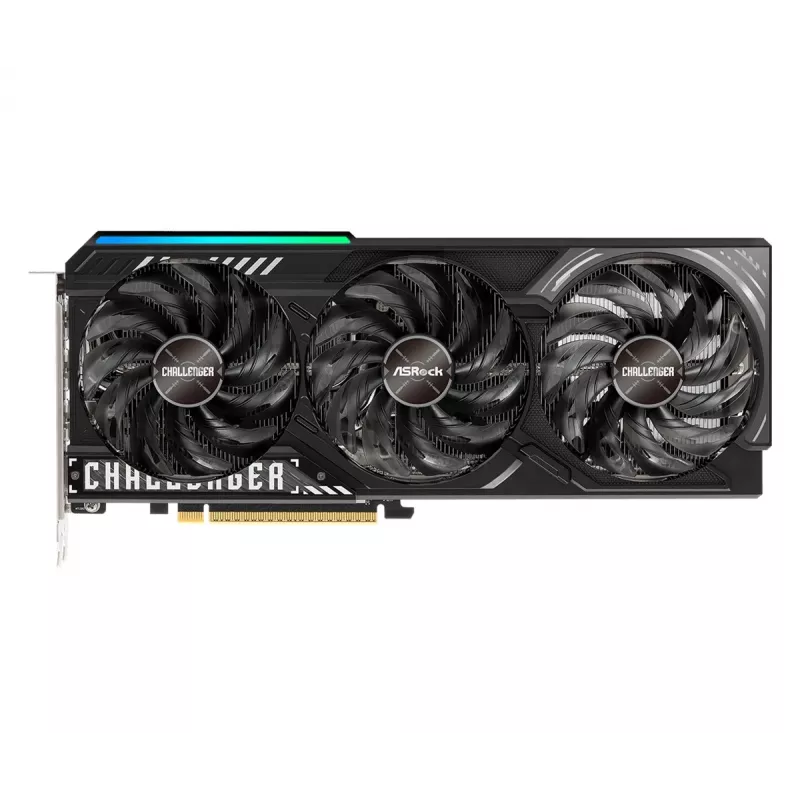

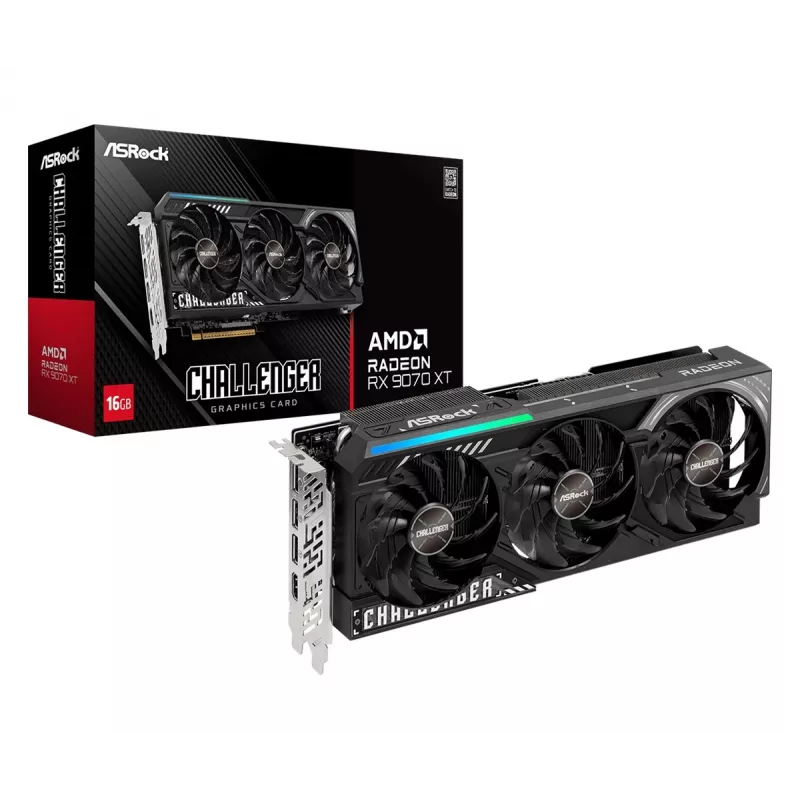

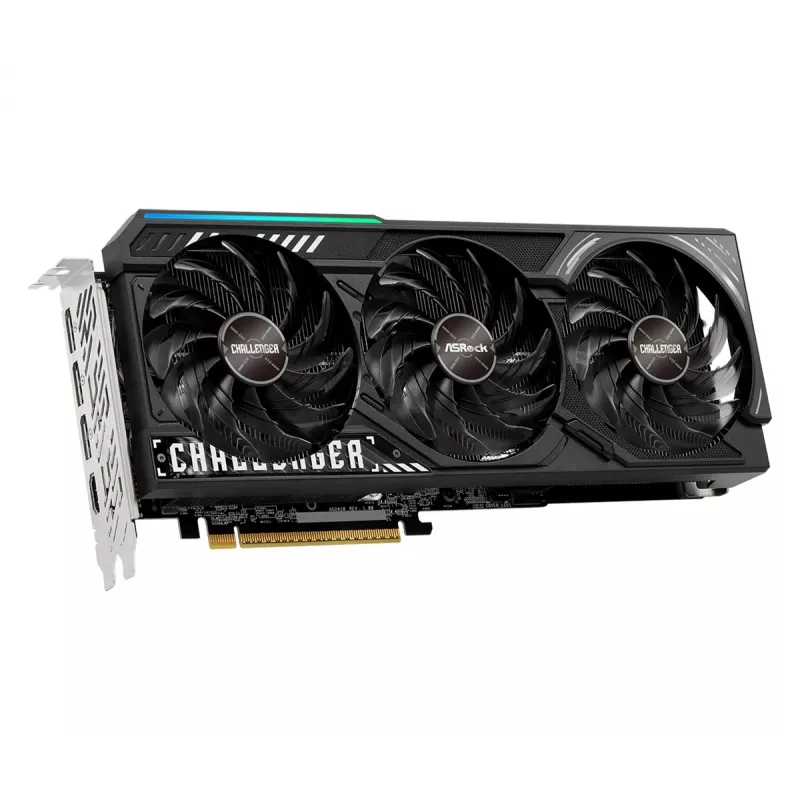

Placa gráfica ASRock Challenger Radeon RX 9070 XT — 16 GB GDDR6, 256 bits, PCIe 5.0, refrigeração ativa com 3 ventoinhas

The ASRock Challenger Radeon RX 9070 XT is a discrete graphics card equipped with the AMD Radeon RX 9070 XT GPU, 16 GB of GDDR6 memory on a 256-bit memory bus and a PCIe 5.0 x16 interface. It supports resolutions up to 7680×4320, DirectX 12 Ultimate and OpenGL 4.6, and includes a triple-fan active cooling solution, a metal backplate with thermal pad, multi-color LED indicator with on/off switch, and reinforced thermal and power delivery components designed for sustained GPU loads.

Advantages

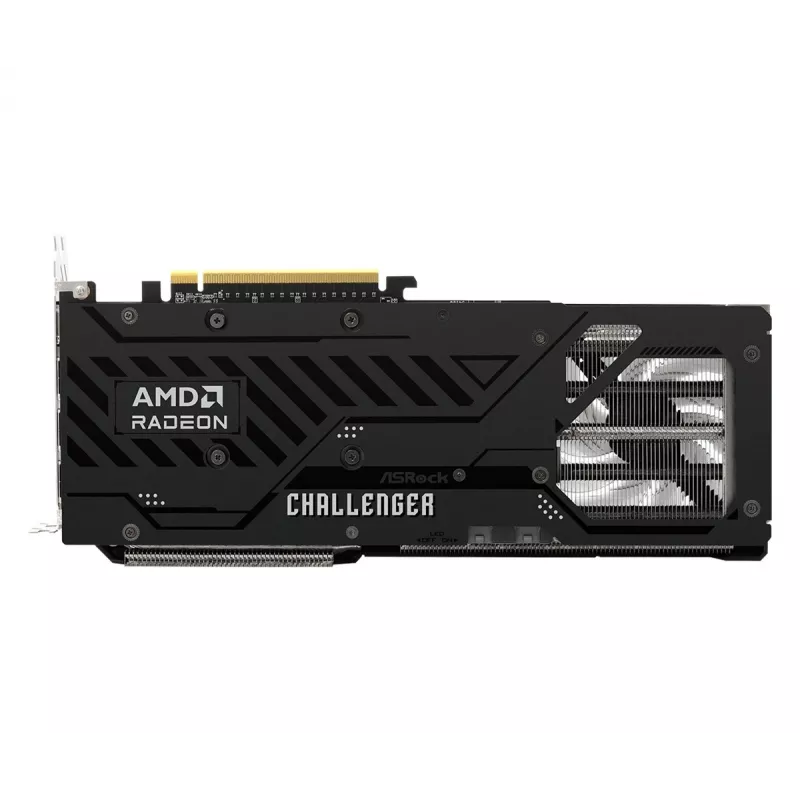

The triple-fan design with Striped Axial Fans and an ultra-fit heatpipe layout improves airflow and thermal transfer to keep operating temperatures lower under load. A nickel-plated copper base and phase-change thermal pad enhance contact between the GPU and cooler for improved heat dissipation. Power delivery is reinforced with Smart Power Stage (SPS), premium power chokes, Japanese SP-Cap capacitors and a 2oz copper PCB for greater stability and overclocking headroom. User-controllable LED illumination and a sturdy metal backplate add visual customization and mechanical rigidity.

Suitable for

• High-resolution gaming up to 8K and multi-monitor setups
• GPU-accelerated content creation, rendering and video editing
• Real-time raytracing and AI-enhanced gaming features
• PC builds requiring robust cooling and stable power delivery for sustained loads

Key specifications

• Graphics processor: Radeon RX 9070 XT
• Graphics memory: 16 GB GDDR6
• Memory bus width: 256 bit
• Interface: PCI Express x16 5.0
• Maximum supported resolution: up to 7680×4320
• API support: DirectX 12 Ultimate, OpenGL 4.6
• Cooling: Triple-fan active cooling with striped axial fans, heatpipes and nickel-plated copper base
• Power connectors: dual 8-pin configuration
• Display outputs: multiple DisplayPort connectors and one HDMI port (see manufacturer spec for exact counts)
• Card weight: approximately 1.038 kg

How to use

Install the graphics card into a compatible PCIe x16 slot on a motherboard that supports PCIe 5.0 or PCIe 4.0. Secure the card to the chassis, connect the required dual 8‑pin power connectors from a power supply with adequate wattage and reliable rails, and attach display cables to the HDMI or DisplayPort outputs. Install the latest AMD Radeon drivers and optional ASRock utilities for full feature support, including LED control and power management. Confirm case airflow and clearance for the triple-fan cooler before first use.

Recommendations

For optimal thermal performance, ensure front-to-back case airflow and maintain a clean intake path; use AMD Radeon software to enable features such as HYPR-RX and frame generation where supported. When overclocking, monitor temperatures and voltages closely and verify that your power supply meets the card’s requirements.
