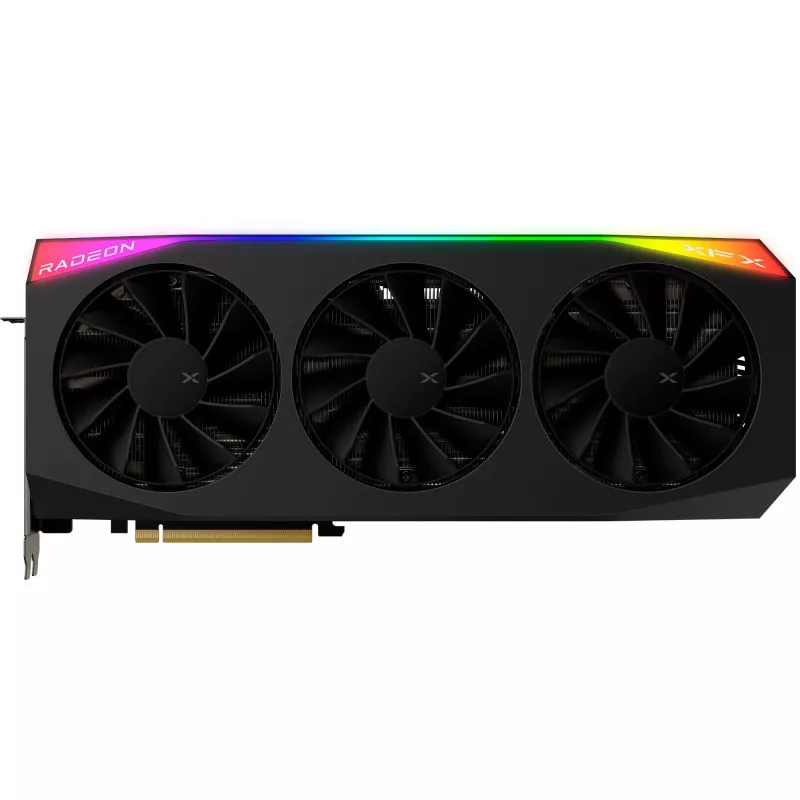

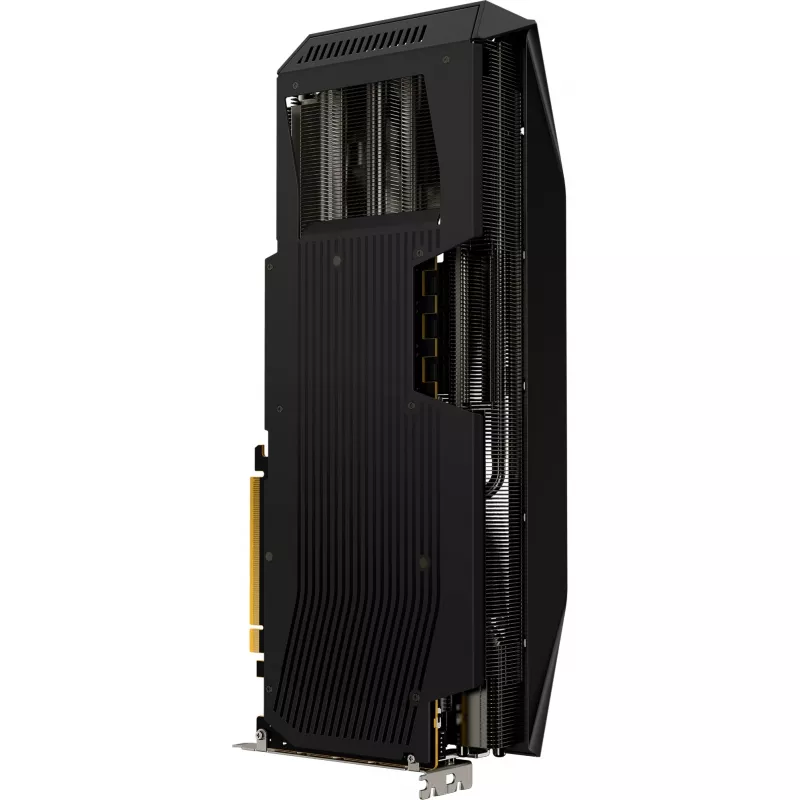

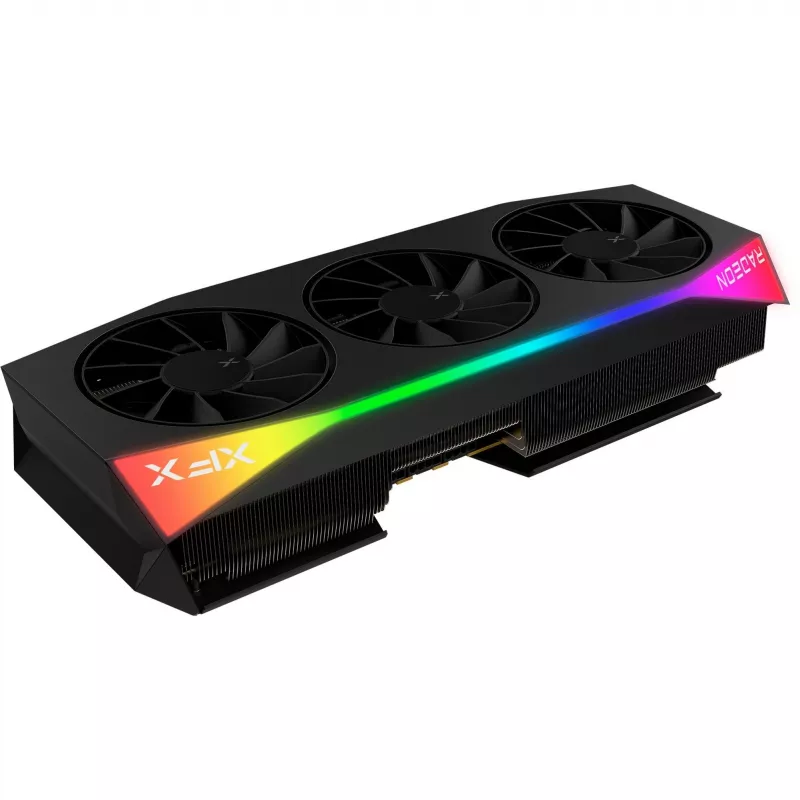

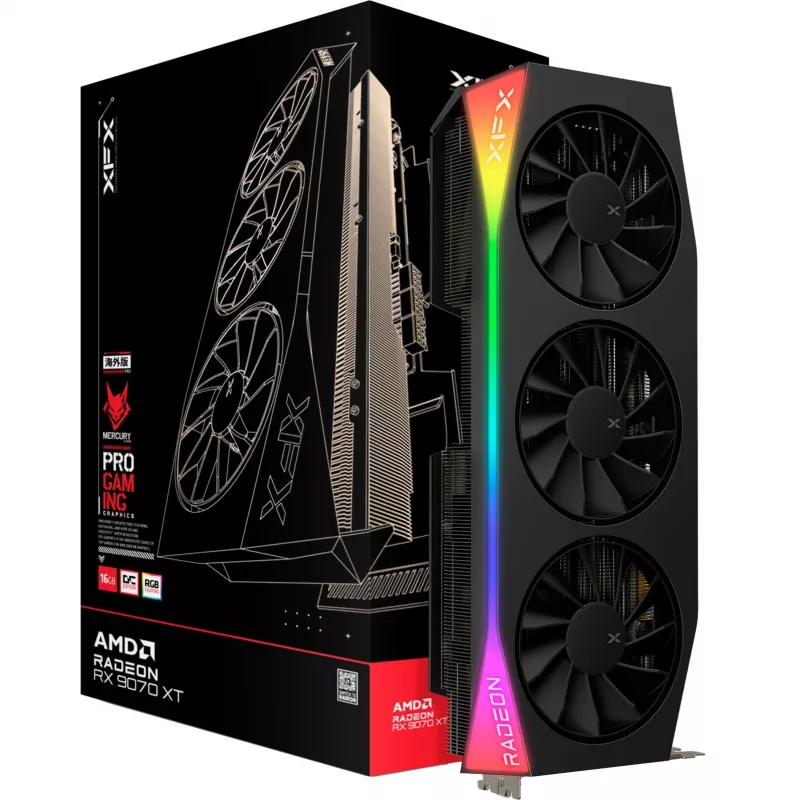

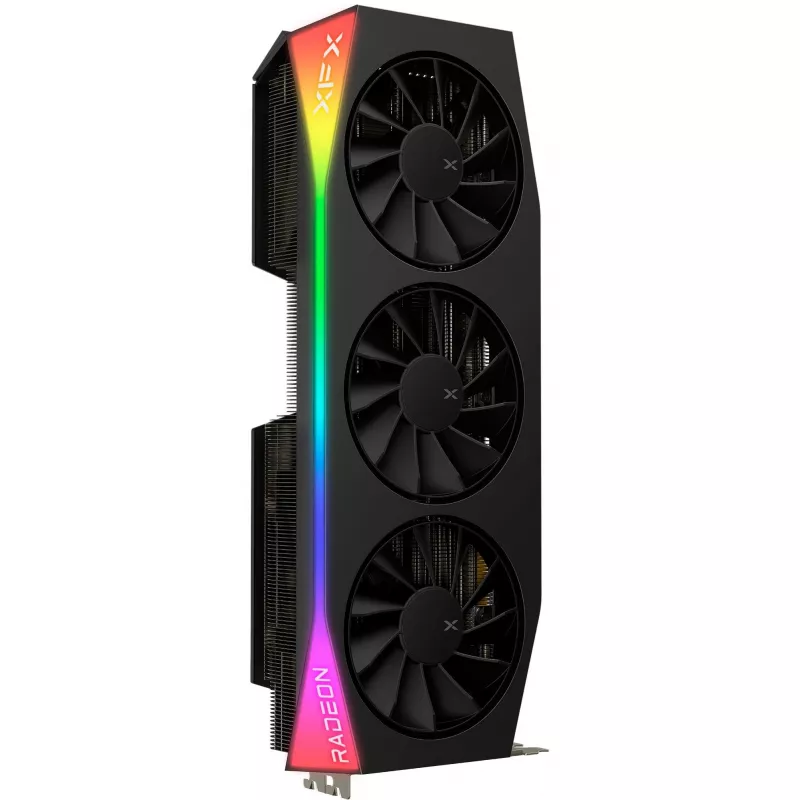

Placa gráfica XFX Radeon RX 9070 XT 16 GB GDDR6, 256-Bit, PCIe x16, 3 ventoinhas, HDMI 1 / DP 3

The XFX Mercury Radeon RX 9070 XT OC Gaming Edition is a high-performance graphics card based on the AMD Radeon RX 9070 XT GPU. It features a 1870 MHz core frequency, 16 GB of GDDR6 memory on a 256-bit bus, PCI Express 5.0 interface and support for resolutions up to 7680 x 4320. The Mercury Class design combines a streamlined, futuristic appearance with advanced cooling components including a nickel-plated copper vapor chamber, 6 mm heatpipes and triple fans with double ball bearings. Full-length 5V ARGB lighting is integrated into the shroud and can be synced using the supplied cable.

Advantages

The card delivers strong raster and raytracing performance through AMD RDNA™ 4 architecture with chiplet technology and supports AMD features such as HYPR-RX, FidelityFX™ Super Resolution and AMD Radiance Display™ Engine for improved image quality and latency reduction. GDDR6 memory provides high bandwidth (up to 640 GB/s as specified by the platform) and PCIe 5.0 ensures higher throughput. The Mercury Class cooler design improves thermal dissipation and allows for higher sustained performance and factory overclocking.

Suitable for

• High-resolution gaming (up to 8K / 7680 × 4320)
• Raytracing-enabled titles and advanced visual effects
• Streaming and content creation with demanding GPU workloads
• PC builds requiring PCIe 5.0 compatibility and ARGB lighting

Key specifications

• Graphics processor: AMD Radeon RX 9070 XT
• Core frequency: 1870 MHz (factory specification)
• Memory: 16 GB GDDR6
• Memory bus: 256-bit
• Memory bandwidth: up to 640 GB/s (GDDR6 platform specification)
• Interface: PCI Express 5.0
• Cooling: Mercury Class cooler with vapor chamber, 6 mm heatpipes and triple fans
• Lighting: Full-length 5V ARGB strip (sync cable included)
• Supported APIs: DirectX 12 Ultimate

How to use

Install the graphics card into an available PCIe 5.0 (or compatible PCIe) x16 slot on a supported motherboard and secure it to the chassis. Connect required power cables from the PSU according to the card’s power connector layout. Attach the supplied ARGB sync cable to your compatible header if you want to control lighting. Install the latest AMD Radeon drivers and AMD Software to enable HYPR-RX, FidelityFX features and other optimizations. Configure display settings through the OS or AMD Software to match your preferred resolution and refresh rate.

Recommendations

Ensure your system power supply and case dimensions support this card’s power and length requirements, keep GPU drivers up to date, and maintain adequate case airflow to achieve optimal cooling and stable performance during extended gaming or rendering sessions.
