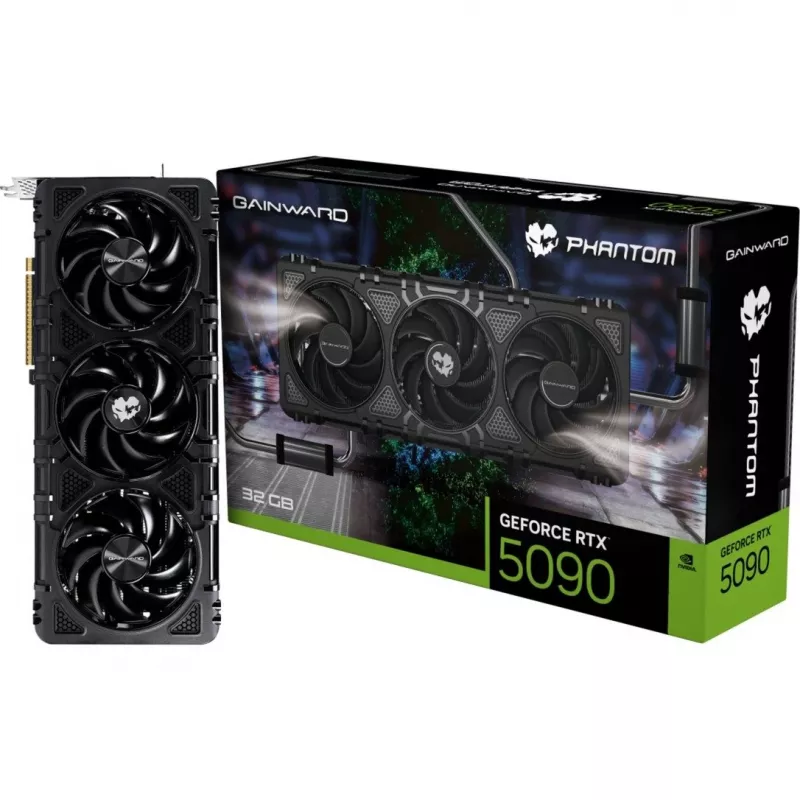

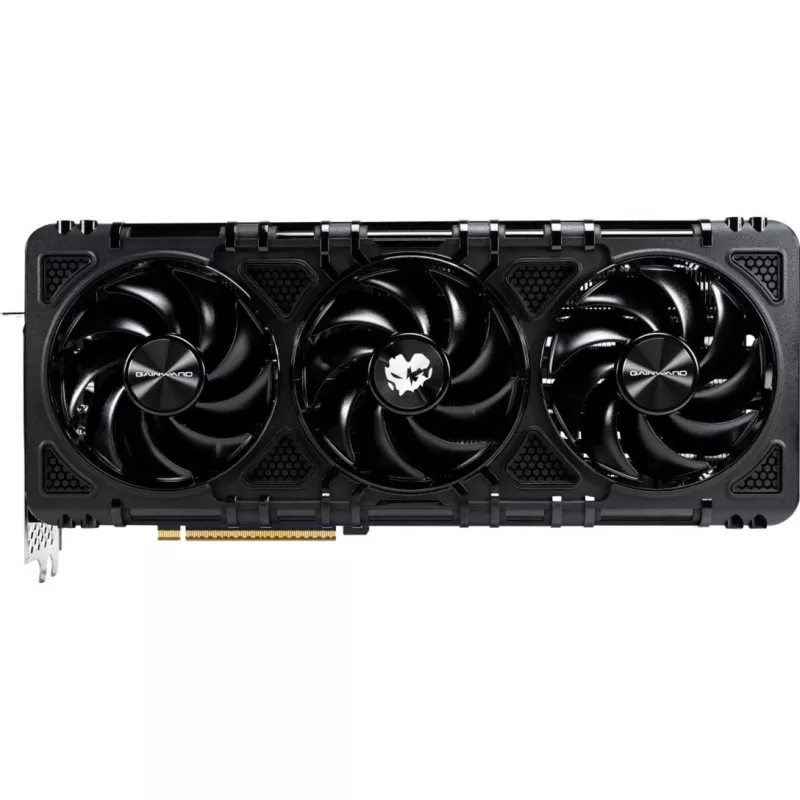

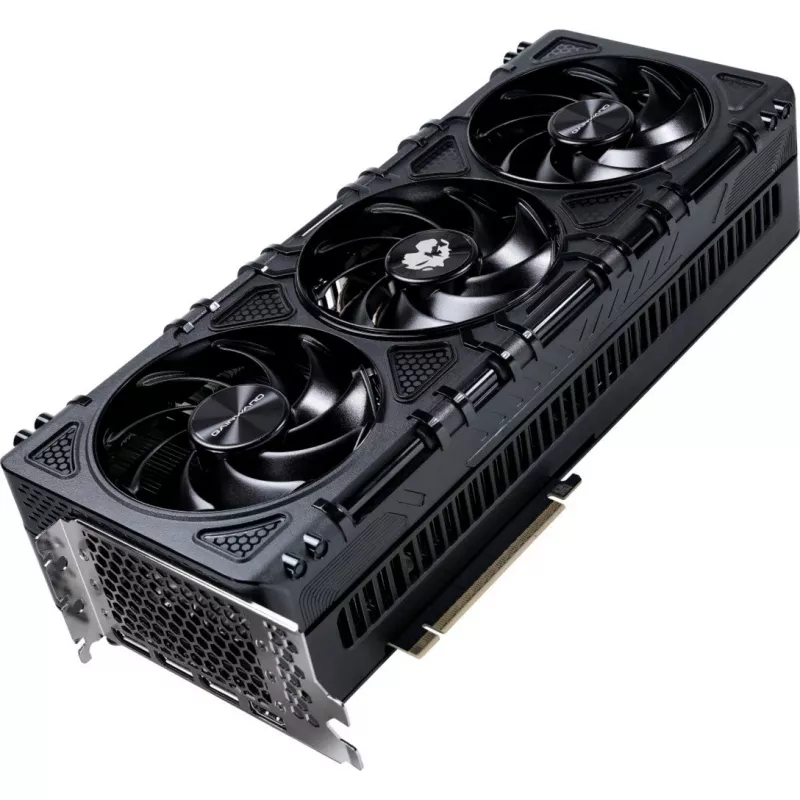

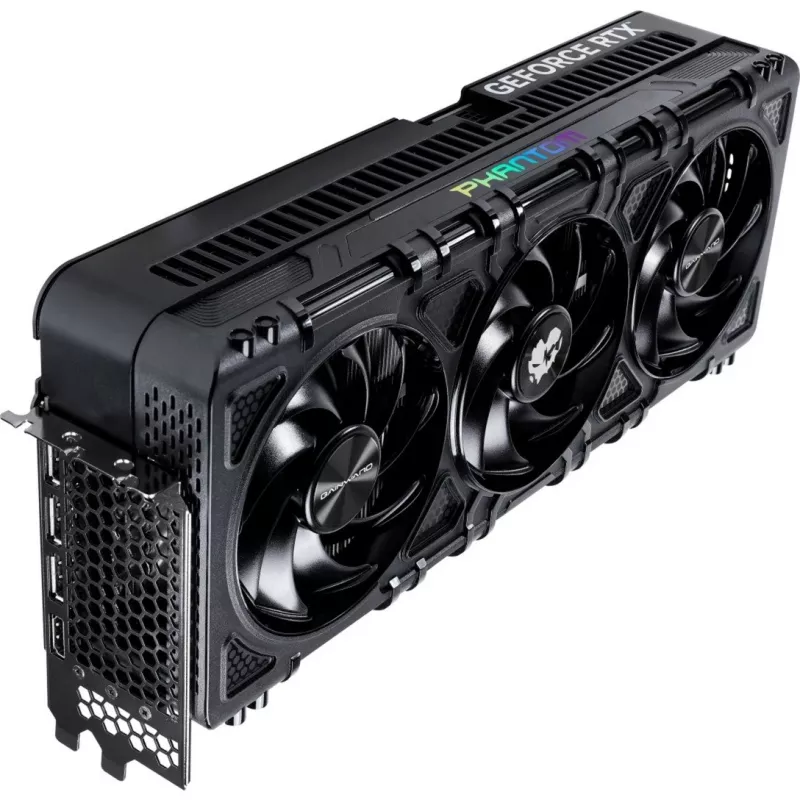

Placa gráfica GAINWARD GeForce RTX 5090 Phantom — 32 GB GDDR7, 512-Bit, PCIe 5.0, 3x DP 2.1b + HDMI 2.1b, 3 ventoinhas, 331,9 mm

The Gainward GeForce RTX 5090 Phantom combines an all-black, minimalist design with high-performance hardware. Based on NVIDIA Blackwell architecture, the GeForce RTX 5090 GPU includes 32 GB of GDDR7 memory on a 512-bit bus and supports PCI Express 5.0 and DirectX 12 Ultimate. The card is built for high-resolution workloads up to 7680 x 4320 and integrates a triple-fan active cooling system with ARGB lighting and multiple thermal enhancements.

Advantages

The Phantom model offers Dual BIOS for selectable Performance and Silent modes, advanced cooling elements such as a vapor chamber, composite heat pipes and diffuser fins, and a Cyclone Fan design that improves airflow. Additional features include ZERO RPM fans for quiet low-load operation, two-ball bearing fans with IP5X dust resistance for longer lifespan, and addressable RGB lighting compatible with GAINWARD Expertool Utility. These features deliver balanced thermal management, configurable acoustics, and customizable illumination.

Suitable for

• High-end gaming at 4K and beyond
• AI workloads and content creation that use GPU-accelerated rendering
• Multi-monitor setups and high-resolution displays (up to 7680 x 4320)
• Systems requiring PCI Express 5.0 bandwidth

Key specifications

• Graphics processor: GeForce RTX 5090
• Memory: 32 GB GDDR7
• Memory clock speed: 14000 MHz
• Memory bus: 512 bit
• Interface: PCI Express 5.0
• Max supported resolution: 7680 x 4320
• Cooling: Triple-fan active cooling, Vapor Chamber, Composite Heat Pipes, Diffuser Fins, Cyclone Fan
• Lighting: Addressable RGB (Auto Sync 2.0, 5V ARGB connector)
• Other: Dual BIOS (Performance/Silent), ZERO RPM Fan, Two-ball bearing, IP5X dust resistant

How to use

Install the card into a free PCI Express 5.0 x16 slot on a compatible motherboard, secure it to the chassis, and connect the required power cables from the PSU according to the manufacturer's instructions. Plug the 5V ARGB connector into your motherboard or controller to synchronize lighting without additional software, or use GAINWARD Expertool Utility to customize per-LED effects. Use the Dual BIOS switch to select Performance or Silent mode depending on workload and noise preference. Ensure adequate case airflow for optimal cooling performance.

Recommendations

For sustained heavy workloads and optimal temperature control, pair this card with a case that has strong front and top airflow, a high-capacity power supply that meets NVIDIA and Gainward power requirements, and up-to-date motherboard BIOS supporting PCIe 5.0. Enable ZERO RPM mode for quiet desktop use and switch to Performance BIOS when maximum GPU throughput is required.
