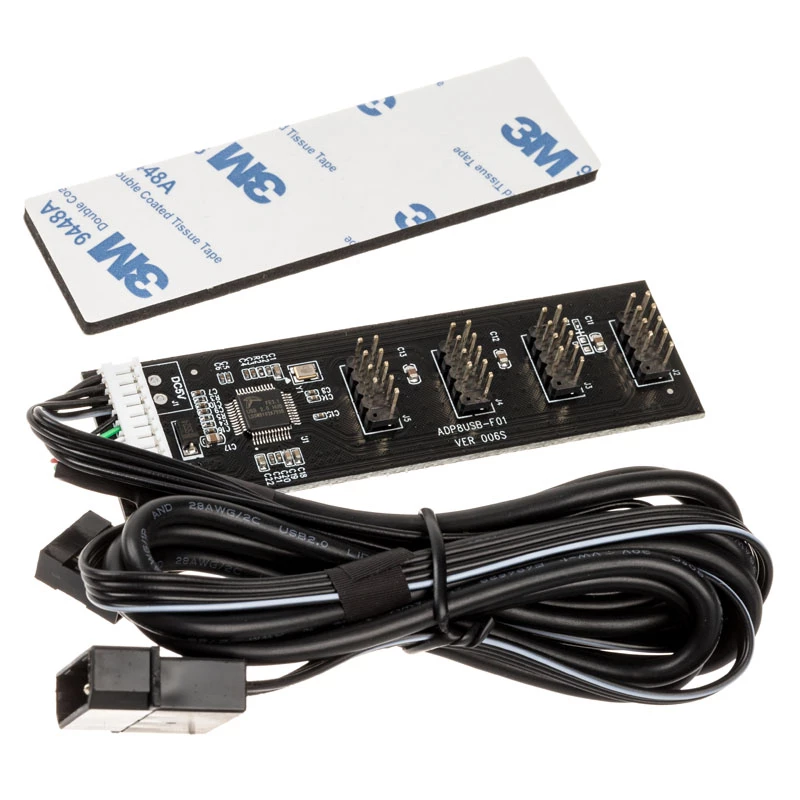

Placa hub USB Kolink USB 2.0 com cabo USB e Molex de 60cm

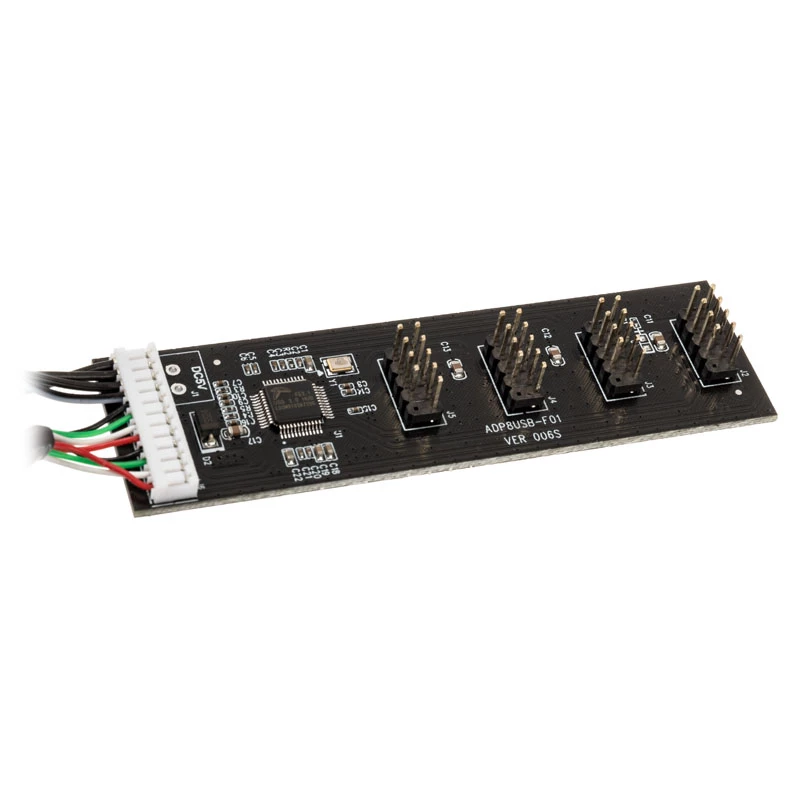

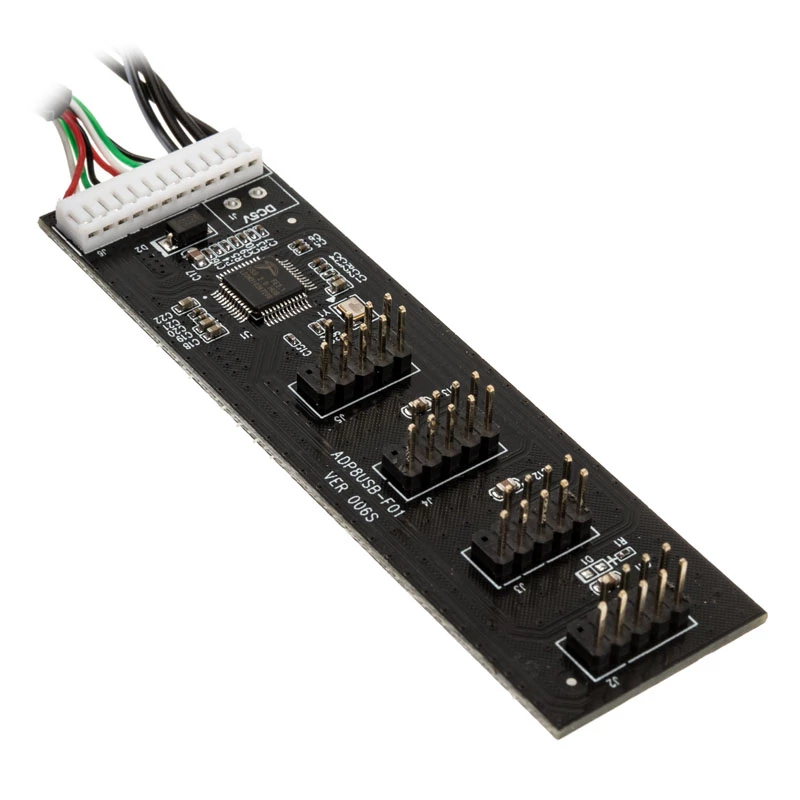

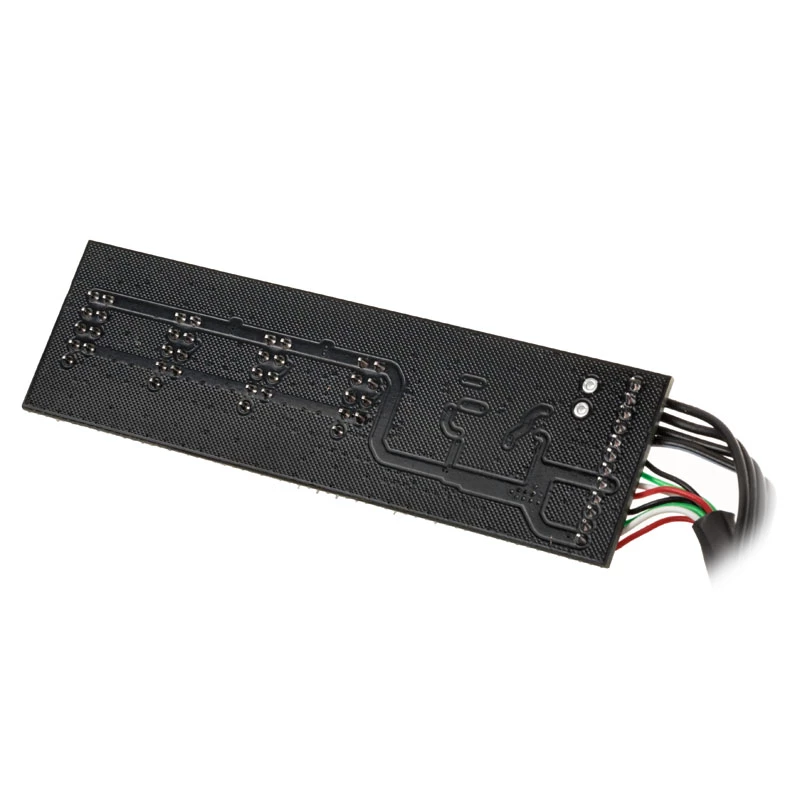

The Kolink USB 2.0 Hub Card is an internal expansion module that increases available internal USB ports in desktop systems. Housed in black plastic and compact dimensions (95mm × 12mm × 29mm), the board connects to an existing internal USB 2.0 header using the supplied 60cm USB cable and provides four internal USB 2.0 ports. An additional 4‑pin Molex power connector supplies the hub and individual channels with stable power. The package includes a Molex power lead and a 3M adhesive strip for secure mounting on magnetic and non‑magnetic surfaces.

Advantages

The internal design conserves external case space and avoids routing external hubs or cables through case cutouts. The included 60cm USB cable and Molex power lead allow flexible placement of the hub card inside the chassis while providing adequate power for connected devices. The low‑profile black plastic housing and adhesive mounting make installation simple and unobtrusive.

Suitable for

• Adding internal USB ports for front I/O panel expansion
• Connecting internal peripherals such as card readers, RGB controllers, or internal hubs
• Systems where external USB hubs are impractical or undesirable
• Compact or custom builds requiring discreet internal cabling

Key specifications

• Host interface: USB 2.0 (internal header connection)
• Provided ports: four internal USB 2.0 ports
• Cable length: 60 cm USB cable to host
• Power connector: 4‑pin Molex power input
• Housing colour: black
• Housing material: plastic
• Dimensions: 95 mm (W) × 12 mm (D) × 29 mm (H)
• Mounting: 3M adhesive strip for magnetic and non‑magnetic surfaces

How to use

Connect the supplied 60cm USB cable from the Kolink hub card to an internal USB 2.0 header on the motherboard. Plug the 4‑pin Molex power lead into a free Molex connector from the system power supply to provide additional power to the hub. Position the hub card inside the chassis and fix it in place using the included 3M adhesive strip. Route the four internal USB ports to the target location, for example a front I/O bracket or internal peripherals, and connect compatible USB 2.0 devices.

Recommendations

Use the hub for low- to moderate-power internal USB devices. For high-power peripherals, verify total current draw and, if necessary, use powered external hubs or devices with separate power supplies. Ensure the Molex power connector is firmly seated and that cables do not interfere with cooling or moving parts inside the case.
