Placa-mãe GIGABYTE H610M D3W WIFI6 – suporta CPUs Intel Core de 14.ª geração, 5+1+1 fases VRM, até 5600 MHz DDR4, 1x PCIe 3.0 M.2, Wi-Fi 6, 1GbE LAN, USB 3.2 Gen 1

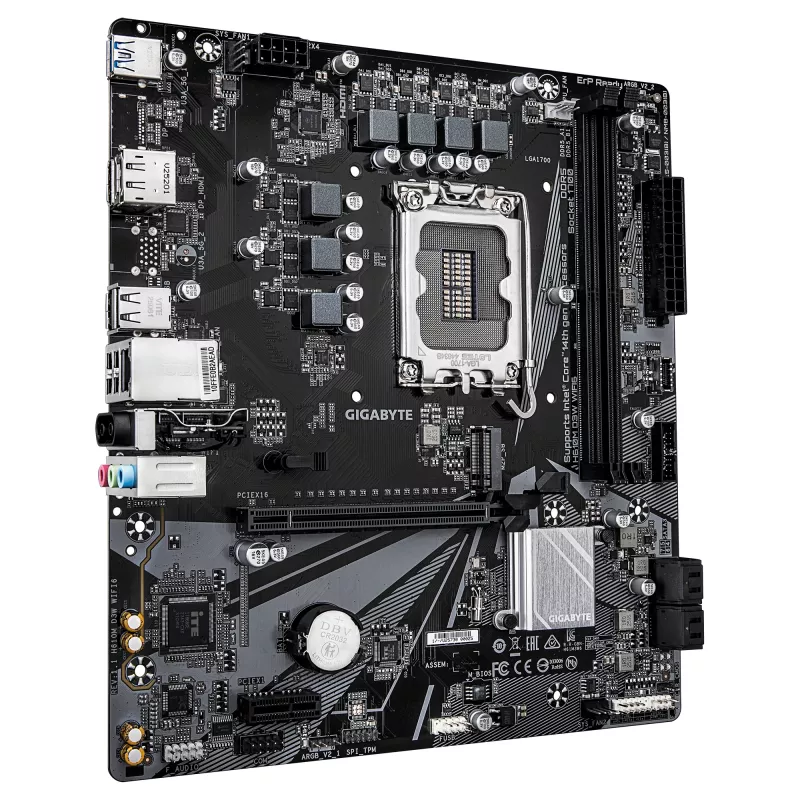

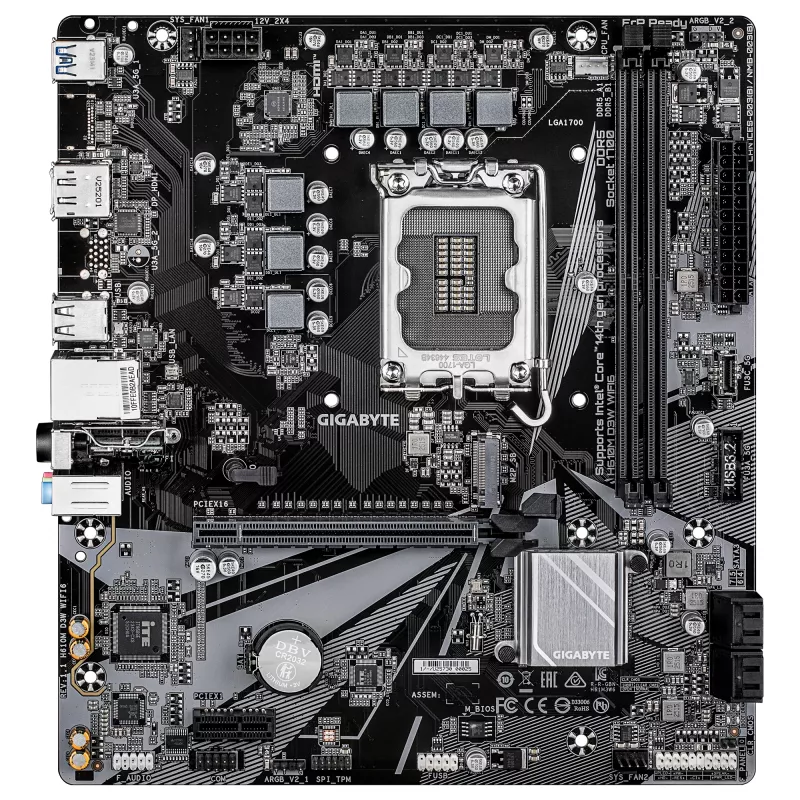

GIGABYTE H610M D3W WIFI6 is a micro‑ATX motherboard with an LGA1700 socket designed for 12th–14th Gen Intel processors, including Intel Celeron, Pentium Gold and Core i3/i5/i7/i9 families. The board supports up to 128 GB of dual‑channel memory in two DIMM slots, a PCIe 3.0 x4 M.2 slot plus SATA III storage, and offers onboard Gigabit Ethernet and Wi‑Fi 6 for network connectivity. Its compact micro‑ATX form factor suits small desktop builds, office PCs and home multimedia systems while providing DisplayPort/HDMI outputs and high‑quality onboard audio components.

Advantages

The motherboard combines a 5+1+1 hybrid digital VRM design for stable power delivery with support for up to 5600 MHz memory (model dependent), ensuring dependable performance for everyday computing and light gaming. Integrated Wi‑Fi 6 and Realtek Gigabit LAN give flexible networking options, while Smart Fan 6 controls and anti‑sulfur resistor design improve durability and cooling management. A single NVMe M.2 slot and multiple SATA ports allow straightforward storage expansion.

Suitable for

• Compact desktop builds and small form factor PCs
• Office and productivity machines
• Home multimedia systems with 4K display output
• Entry to mid‑range gaming or content creation setups

Key specifications

• Form factor: Micro ATX
• Chipset: Intel H610
• CPU socket: LGA 1700 (supports Intel 12th–14th Gen, Celeron, Pentium Gold, Core i3/i5/i7/i9)
• Memory: 2 DIMM slots, dual channel, up to 128 GB (supports DDR5 up to 5600 MHz depending on configuration)
• Storage: 1× NVMe PCIe 3.0 x4 M.2, SATA III ports (total supported drives: up to 5)
• Expansion: PCIe x1 (Gen3) slots available
• Audio: Realtek ALC897, 7.1 channels
• LAN/Wireless: Realtek Gigabit Ethernet, onboard Wi‑Fi 6 (802.11ax), Bluetooth 5.3
• BIOS: UEFI AMI (128 Mbit), ACPI 5.0, Clear CMOS jumper
• Other: Smart Fan 6, anti‑sulfur resistors, USB 3.2 Gen1 ports

How to use

Install the motherboard into a compatible micro‑ATX chassis and mount an LGA1700 CPU following the processor and motherboard manuals. Insert up to two DDR5 DIMMs into the memory slots, connect storage devices to the M.2 and SATA ports, and attach power connectors from a suitable PSU. Connect display to the HDMI or DisplayPort output and configure network settings for Gigabit Ethernet or onboard Wi‑Fi 6. Update the UEFI BIOS if necessary before installing an operating system to ensure full compatibility with the chosen CPU and memory configuration.

Recommendations

For stable operation, use a quality power supply with appropriate 4/8‑pin CPU power connectors, populate memory modules in the recommended slots for dual‑channel mode, and apply the latest BIOS update when installing newer 14th Gen Intel CPUs. Ensure adequate case airflow and configure Smart Fan 6 profiles to maintain optimal temperatures.
