Placa-mãe GIGABYTE H610M D3W LGA1700 para CPUs Intel de 12.ª a 14.ª geração, 5+1+1 VRM, DDR5 até 5600 MHz, 128 GB, PCIe 3.0 M.2, 1 GbE, USB 3.2 Gen1

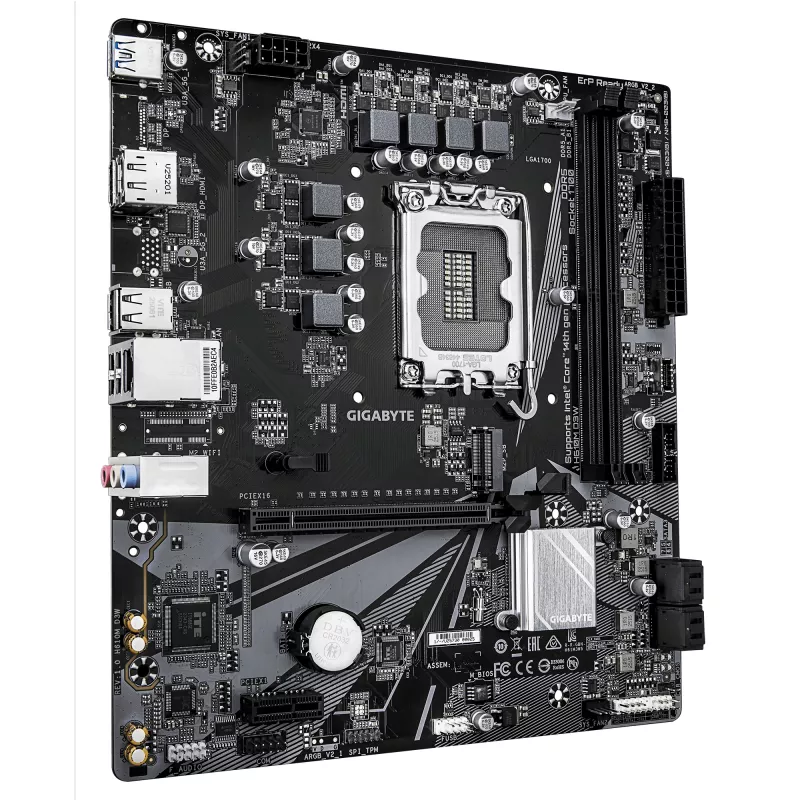

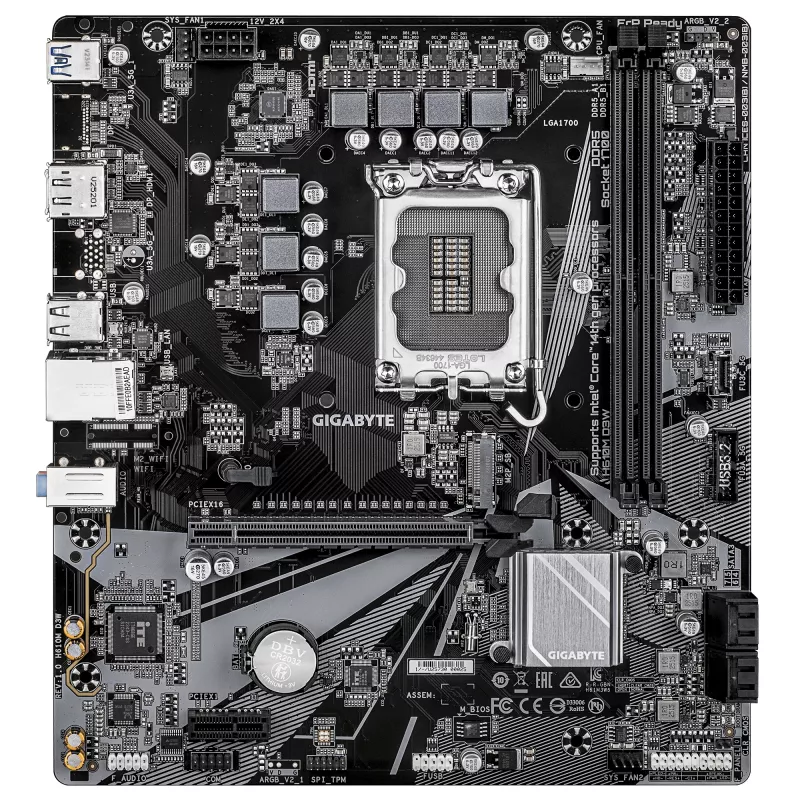

GIGABYTE H610M D3W is a Micro-ATX motherboard with an LGA1700 socket designed for 12th–14th Gen Intel processors and compatible Intel models. It provides dual DDR5 DIMM slots supporting up to 128 GB (up to 5600 MHz), a 5+1+1 hybrid digital VRM design for stable power delivery, one PCIe 3.0 x4 M.2 socket, SATA III storage support and onboard Gigabit Ethernet. The board is intended for compact desktop builds that require reliable performance, modern memory support and flexible storage options for office, home and entry-level gaming systems.

Advantages

The motherboard combines a compact Micro-ATX form factor with features typically found on larger boards: robust VRM phases for consistent CPU power, DDR5 memory support for higher bandwidth, NVMe M.2 support for fast storage and integrated Gigabit Ethernet. Additional design elements such as high-quality audio components, anti-sulfur resistors and multiple fan headers with Smart Fan 6 ensure long-term reliability and practical cooling control.

Suitable for

• Office and home desktops
• Entry-level gaming builds
• Content creation on a compact system
• Small form-factor workstations

Key specifications

• Form factor: Micro ATX
• Chipset: Intel H610
• Socket: LGA 1700 (12th–14th Gen Intel CPUs compatible)
• Memory: 2 × DDR5 DIMM, up to 128 GB, up to 5600 MHz
• VRM: 5+1+1 hybrid digital VRM design
• Storage: 1 × NVMe PCIe 3.0 x4 M.2, SATA III ports (total supported drives: 5)
• LAN: Gigabit Ethernet (Realtek)
• Audio: Realtek ALC897, 7.1 channels
• Expansion: PCIe slots including PCIe x1 (Gen3)
• BIOS: UEFI AMI 128 Mbit, ACPI 5.0, Clear CMOS jumper

How to use

Install the motherboard into a compatible Micro-ATX case, mount the LGA1700 CPU and compatible cooler, and insert DDR5 memory modules into the two DIMM slots following the motherboard manual for correct slot population. Connect an NVMe M.2 drive or SATA drives for storage, attach the power supply cables (24-pin ATX and CPU power), and connect front-panel, USB and Ethernet cables as required. Flash or configure BIOS settings via the UEFI interface to set memory profiles, boot order and power management.

Recommendations

Use a compatible LGA1700 cooler and quality DDR5 modules matched to supported speeds. Ensure the case provides adequate airflow and configure Smart Fan 6 headers to monitor temperatures. Keep BIOS updated to the latest UEFI version for improved CPU and memory compatibility.
