Placa-mãe ASROCK A620AM PRO RS WIFI AM5 microATX, AMD A620, 4×DDR5, Wi‑Fi, HDMI, DP, 3×M.2, 2×SATA, áudio 7.1, LAN 1Gb

ASROCK A620AM PRO RS WIFI is a microATX motherboard for Socket AM5 systems based on the AMD A620 chipset. It supports AMD Ryzen 9000 series processors and provides integrated AMD RDNA 2 graphics outputs, Wi‑Fi, Bluetooth and Gigabit Ethernet. The board features four DDR5 DIMM slots (dual‑channel) supporting up to 256 GB, three M.2 slots plus SATA connectivity, UEFI AMI BIOS and 7.1 audio for compact gaming, workstation and home builds.

Advantages

The motherboard combines AM5 compatibility with DDR5 memory support and multiple M.2 slots for high‑speed storage. Integrated RDNA 2 graphics outputs (HDMI and DisplayPort) and a Gigabit LAN controller provide basic display and network functionality without a discrete GPU. Built‑in Wi‑Fi and Bluetooth simplify wireless connectivity while the microATX form factor fits smaller cases.

Suitable for

• Compact gaming PCs and entry‑level gaming systems
• Home and office desktops requiring integrated graphics and network features
• Workstations needing multiple M.2 SSDs and up to 256 GB DDR5 memory

Key specifications

• Socket: AM5
• Chipset: AMD A620
• Supported processors: AMD Ryzen 9000 series
• Form factor: microATX (244 × 244 mm)
• Memory: 4 × DIMM DDR5 UDIMM, dual‑channel, up to 256 GB
• Integrated graphics: AMD RDNA 2 (with HDMI and DisplayPort outputs)
• Storage interfaces: 3 × M.2 slots, 2 × SATA III connectors; supports HDD and SSD
• Expansion: PCIe x16 (Gen4) slot, PCIe x16 (Gen3) slot, PCIe x4 (Gen3) slot

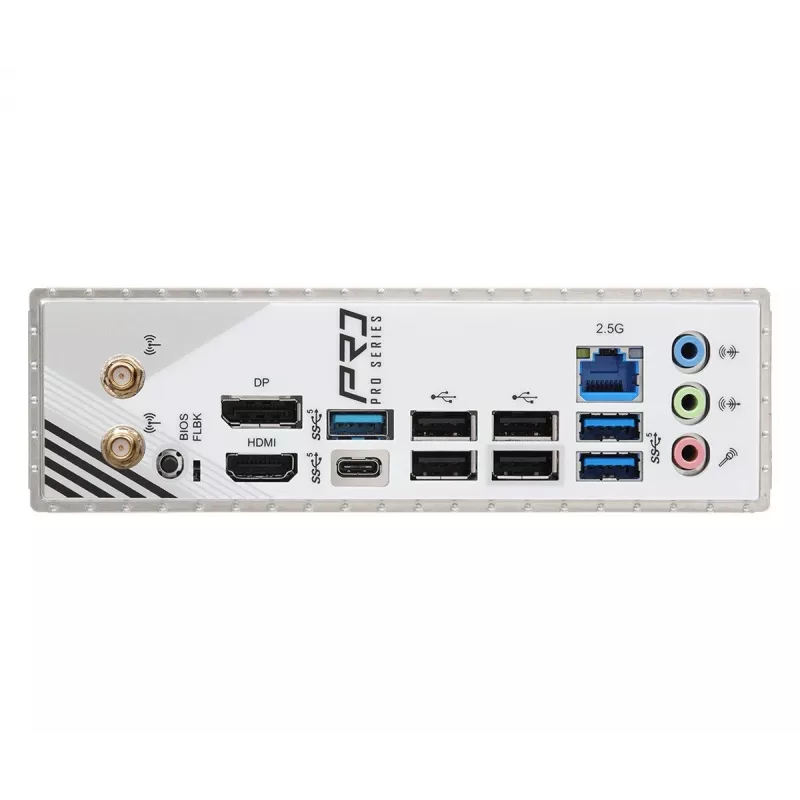

• USB: Rear USB‑A and USB‑C ports including USB 3.2 Gen1 and USB 2.0
• Audio: 7.1 channel onboard audio
• Networking: Gigabit Ethernet (RTL8125BG), Wi‑Fi and Bluetooth
• BIOS: UEFI AMI

How to use

Install a compatible AM5 processor and DDR5 UDIMM modules into the appropriate sockets, connect storage devices to the M.2 slots or SATA ports, and attach power and front‑panel connectors to the 24‑pin ATX and fan headers. Connect display devices to the HDMI or DisplayPort outputs if using integrated graphics, and configure boot order and system settings through the UEFI AMI BIOS. Ensure drivers for network, audio and chipset are installed in the operating system.

Recommendations

For stable operation, use DDR5 modules listed in the motherboard's supported memory documentation, install an appropriate cooling solution for AM5 CPUs, and follow local regulations for electronic waste disposal when decommissioning the board.
