Placa-mãe MSI PRO Z890-S WIFI6E - Intel Z890, LGA 1851, ATX, DDR5 até 8800+ MT/s (OC), PCIe 5.0, M.2 Gen5, Wi-Fi 6E, 2.5G LAN

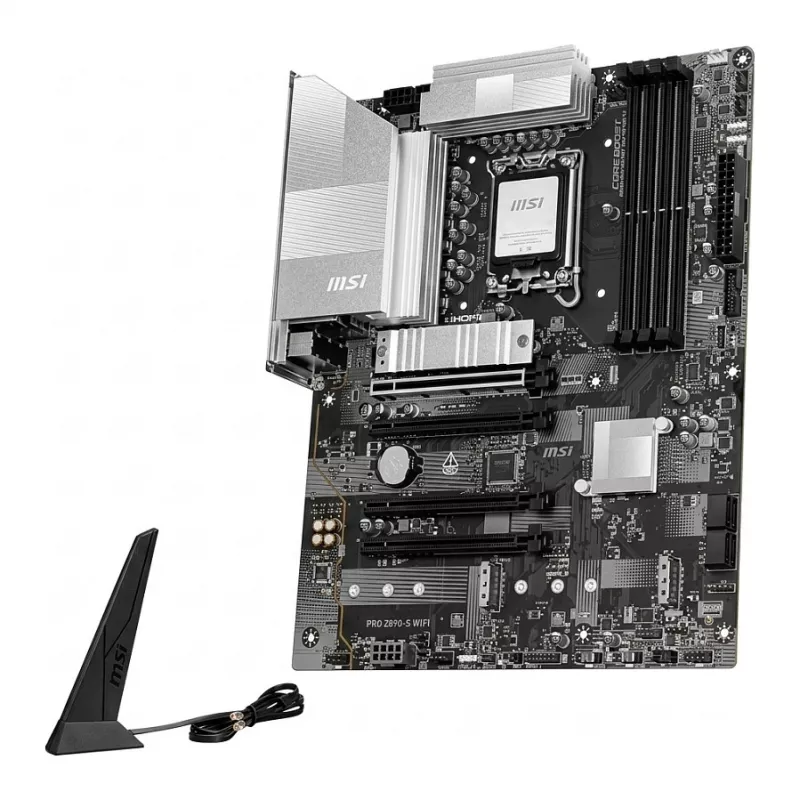

The MSI PRO Z890-S WIFI6E is a business-class ATX motherboard built on the Intel Z890 chipset for the LGA 1851 socket, ready for Intel Core Ultra Processors (Series 2). It pairs a clean silver-and-black aesthetic with a robust power design, next-generation connectivity and Frozr thermal solutions, making it an ideal foundation for productivity workstations and modern AI-ready PC builds.

Advantages

Four DDR5 DIMM slots with MSI Memory Boost support up to 256 GB and overclocked speeds of 8800+ MT/s for high-bandwidth multitasking. Lightning Gen 5 delivers a PCIe 5.0 x16 graphics slot and a PCIe 5.0 M.2 slot, while M.2 Shield Frozr keeps SSDs cool to prevent thermal throttling. Integrated Wi-Fi 6E and Realtek 2.5G LAN provide fast, reliable wired and wireless networking, and Lightning USB 20G adds high-speed USB-C connectivity.

Suitable for

• Office and business desktops needing dependable, future-proof performance
• Content creators and professionals running memory-intensive applications
• Builders pairing Intel Core Ultra Series 2 CPUs with fast PCIe 5.0 storage and graphics
• Users who want flexible, high-capacity NVMe and SATA storage

Key specifications

• Brand: MSI
• Model: PRO Z890-S WIFI6E
• MPN: 7E54-010R
• EAN: 4711377427425
• CPU socket: Intel LGA 1851
• Supported processors: Intel Core Ultra Processors (Series 2)
• Chipset: Intel Z890
• Memory: 4x DDR5 DIMM, dual channel, up to 256 GB, 8800+ MT/s (OC)
• Expansion slots: 1x PCIe 5.0 x16, 2x PCIe 4.0 x4, 1x PCIe 3.0 x1
• Storage: 1x M.2 Gen5 x4 (128 Gbps), 2x M.2 Gen4 x4 (64 Gbps), 4x SATA 6 Gbps
• Networking: Wi-Fi 6E, Bluetooth 5.3, Realtek RTL8125D 2.5G LAN
• USB: 2x USB 20Gbps Type-C, 8x USB 5Gbps Type-A, 4x USB 2.0
• Display outputs: HDMI 2.1, DisplayPort 1.4 (4K@60Hz, requires processor graphics)
• Audio: Realtek ALC897, 8-channel (7.1) HD Audio with Audio Boost
• Form factor: ATX (304.8 x 243.84 mm)

How to use

Install the board in an ATX case, fit a compatible Intel Core Ultra Series 2 processor in the LGA 1851 socket, populate the DDR5 slots and secure NVMe drives under the M.2 Shield Frozr heatsinks. Connect storage to the SATA 6 Gbps ports, attach the EZ Antenna for Wi-Fi 6E, and use the pre-installed rear I/O shield with DisplayPort, HDMI, USB-C 20Gbps, USB-A and 2.5G LAN for a quick, tidy build.

Recommendations

A polished, business-elegant Z890 platform: choose the PRO Z890-S WIFI6E when you want stable performance, plentiful PCIe 5.0 and M.2 storage, and dependable Wi-Fi 6E plus 2.5G networking for a long-lasting Intel Core Ultra workstation.
