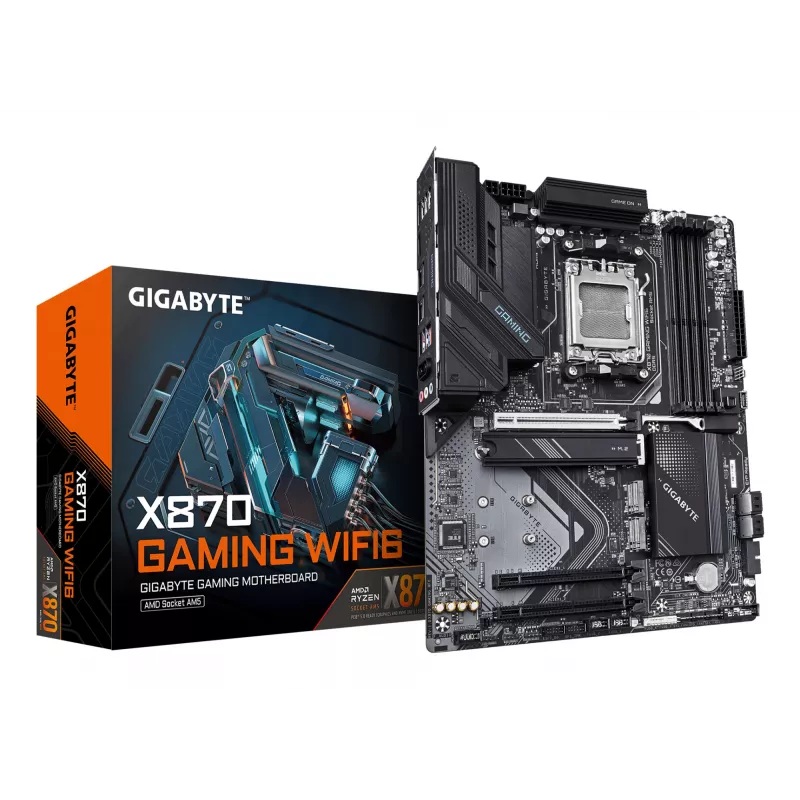

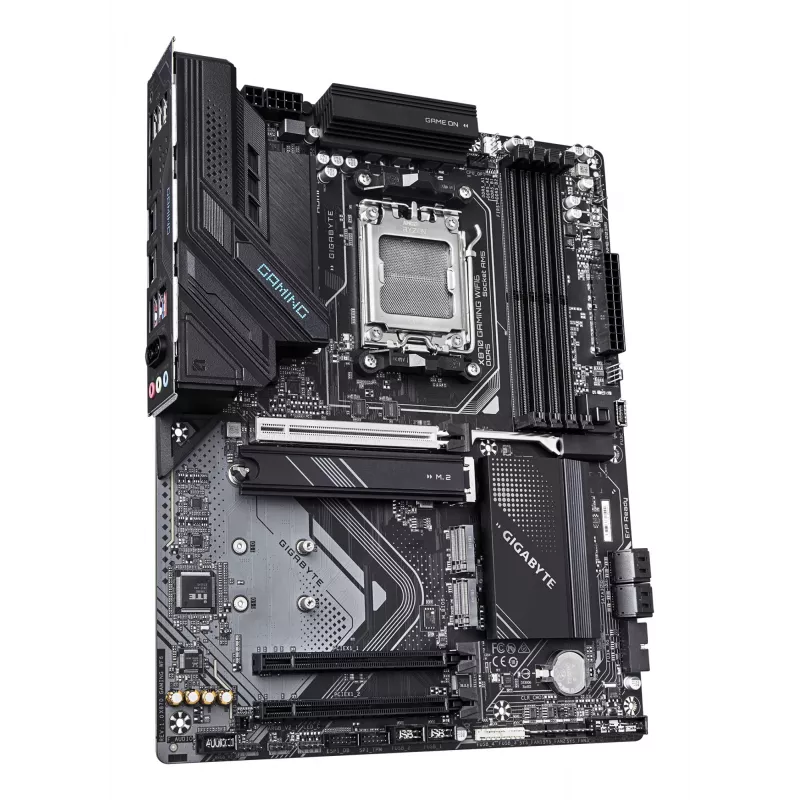

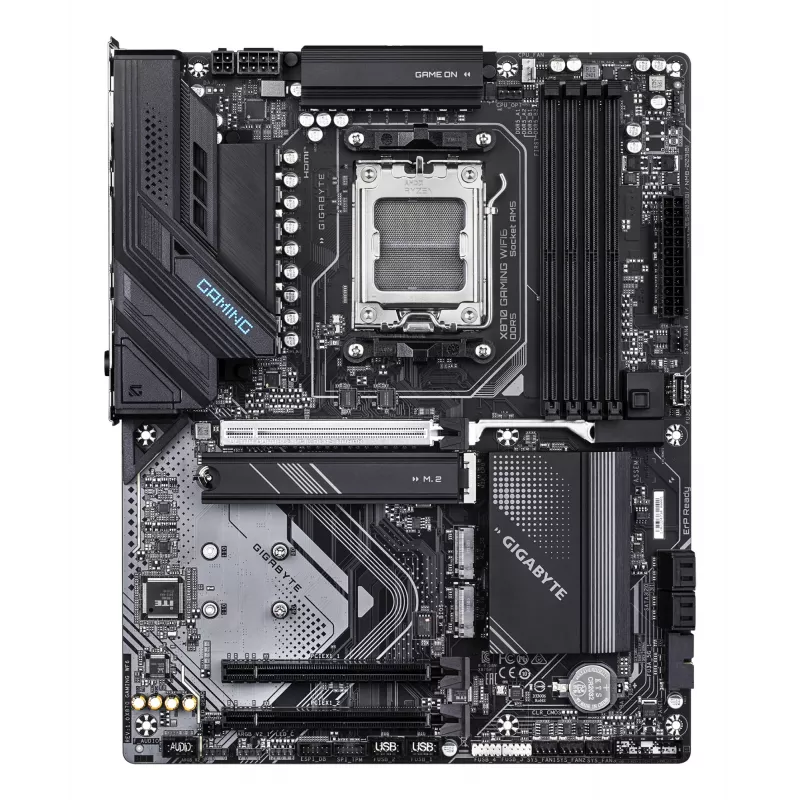

Motherboard GIGABYTE X870 GAMING WIFI6 ATX, AMD X870, Socket AM5, DDR5, 4x DIMM, até 256 GB, Wi-Fi 6, 2.5Gb LAN

The GIGABYTE X870 GAMING WIFI6 is an ATX motherboard for Socket AM5, compatible with AMD Ryzen 9000 series processors. Built on the AMD X870 chipset, it offers an 8+2+2 phase VRM design, support for up to 256 GB DDR5 memory across four DIMM slots and overclocking to high DDR5 frequencies. The board includes PCIe 5.0 and PCIe 4.0 expansion options, integrated Wi‑Fi 6 and 2.5 GbE LAN, and support for both HDD and SSD storage devices, making it suitable for demanding gaming and workstation builds.

Advantages

The X870 GAMING WIFI6 combines a robust power delivery subsystem with contemporary connectivity: an 8+2+2 VRM layout for stable CPU power, support for high-speed DDR5 memory, and a mix of PCIe 5.0 and PCIe 4.0 slots for modern graphics and expansion cards. Integrated Wi‑Fi 6 and 2.5GbE provide fast network options out of the box, while the ATX form factor ensures broad compatibility with standard cases and cooling solutions.

Suitable for

• High-performance gaming PCs
• Content creation and video editing workstations
• Professional productivity systems requiring multiple expansion cards
• Users upgrading to AMD Ryzen 9000 series on Socket AM5

Key specifications

• Form factor: ATX
• Chipset: AMD X870
• Socket: Socket AM5 (AMD Ryzen 9000 support)
• VRM design: 8+2+2 phases
• Memory: 4 x DDR5 DIMM slots, up to 256 GB, supports overclocking
• PCIe: 1 x PCIe 5.0 slot, 2 x PCIe 4.0 slots

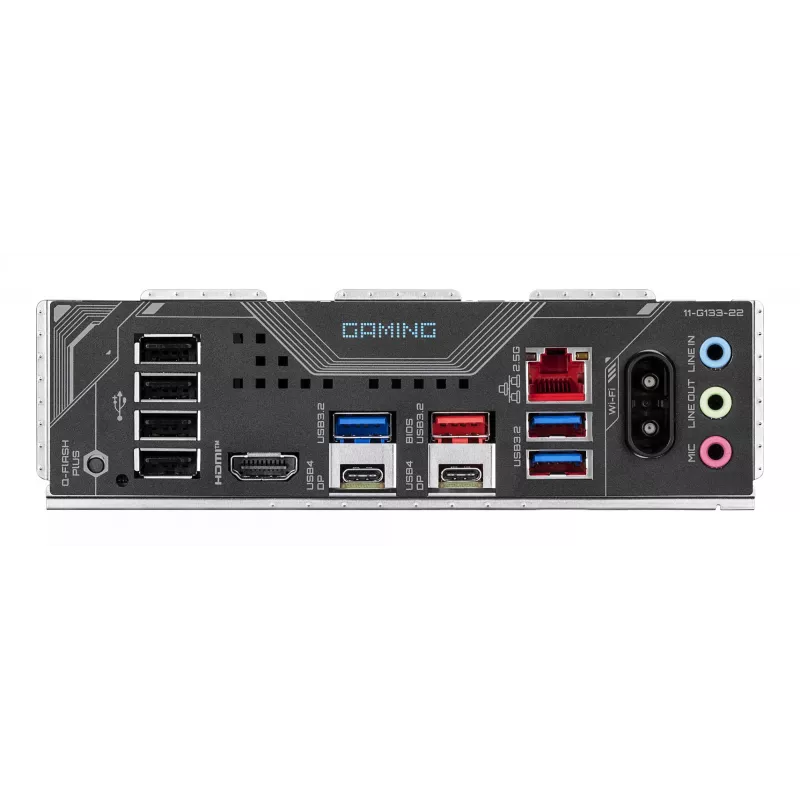

• Networking: Wi‑Fi 6, 2.5 GbE LAN
• Storage: support for HDD and SSD drives (M.2/SATA depending on board layout)
• Weight: 2.23 kg

How to use

Install the motherboard into a compatible ATX case, mount a Socket AM5 CPU and apply appropriate cooling. Populate DDR5 memory in matched DIMM slots according to the manual to enable dual/quad channel operation and intended overclocking profiles. Connect required storage devices and expansion cards to the PCIe and SATA/M.2 interfaces, then attach power supply connectors and front-panel headers. Configure BIOS/UEFI settings to set memory frequencies, CPU power limits and enable onboard networking features as needed.

Recommendations

For stable performance, use a high-quality CPU cooler and a power supply that meets the system’s thermal and power requirements. When enabling DDR5 overclocking or heavy CPU loads, ensure adequate case airflow and update the motherboard BIOS to the latest version recommended by GIGABYTE for Ryzen 9000 support.
