Placa Mini-PCIe InLine 2x USB 3.0

Placa Mini-PCIe InLine 2x USB 3.0
Placa Mini-PCIe InLine 2x USB 3.0
Placa Mini-PCIe InLine 2x USB 3.0
Placa Mini-PCIe InLine 2x USB 3.0
Placa Mini-PCIe InLine 2x USB 3.0
Placa Mini-PCIe InLine 2x USB 3.0
Placa Mini-PCIe InLine 2x USB 3.0
Placa Mini-PCIe InLine 2x USB 3.0
25,37 €
PDF
PDF
Stock 3 Código 1439001 Modelo 66900 Garantia 3 anos

Envios e devoluções

Entrega prevista segunda-feira, 30 de novembro
Receberá atualizações através do nosso sistema de seguimento detalhado
Opções de pagamento
Cartão bancárioVisaMastercardPayPalApple PayGoogle PayTransferência bancária

Faça uma pergunta – o assistente IA responde de imediato.

Descrição

This Mini-PCIe card provides two USB 3.2 Gen 1 ports (SuperSpeed USB) for systems with a Mini PCI Express slot. Compliant with USB 3.0 specification revision 1.0 and PCI Express Gen 2, the card supports full-duplex data transfer at up to 5 Gbps and is backward compatible with USB 2.0 devices (High-, Full- and Low-Speed). It is intended for embedded or compact systems that need higher-volume, higher-speed wired connectivity to external storage, optical drives, cameras and other USB peripherals.

Advantages

The card delivers two SuperSpeed USB 3.2 Gen 1 ports providing up to 5000 Mbit/s aggregate transfer per port, offering a significant speed increase over USB 2.0. Its Mini PCI Express host interface makes it suitable for small form-factor and embedded systems. Backward compatibility with USB 2.0 devices ensures support for a wide range of peripherals without additional adapters.

Suitable for

  • Adding high-speed USB ports to embedded or small-form-factor systems
  • Connecting external hard drives and SSDs for faster file transfer
  • Attaching optical drives and HD video cameras
  • Expanding USB connectivity in industrial or specialized equipment

Key specifications

  • Brand: InLine
  • Model: Mini-PCIe Card 2x USB 3.0 (MPN: 66900, EAN: 4043718192922)
  • Host interface: Mini PCI Express (Mini PCIe)
  • Output: 2 × USB 3.2 Gen 1 (SuperSpeed USB, 5 Gbps)
  • Backward compatibility: USB 2.0 High-Speed (480 Mbps), Full-Speed (12 Mbps), Low-Speed (1.5 Mbps)
  • Internal: Yes

How to use

Install the card into an available Mini PCI Express slot on a compatible motherboard or embedded system, following the device and system manufacturer's instructions for handling and grounding. After physical installation, power on the system and install any required drivers supplied by the system or available from the hardware vendor. Connect USB devices to the two external ports to begin using the added USB 3.2 Gen 1 connectivity.

Recommendations

Do not use drivers-download websites that are unrelated to the manufacturer; the original product documentation warns that a site named 'Drivers-Download' is being misused for phishing and should be avoided. Obtain drivers only from trusted sources such as the system manufacturer, InLine support, or verified vendor pages.
Destaques principais

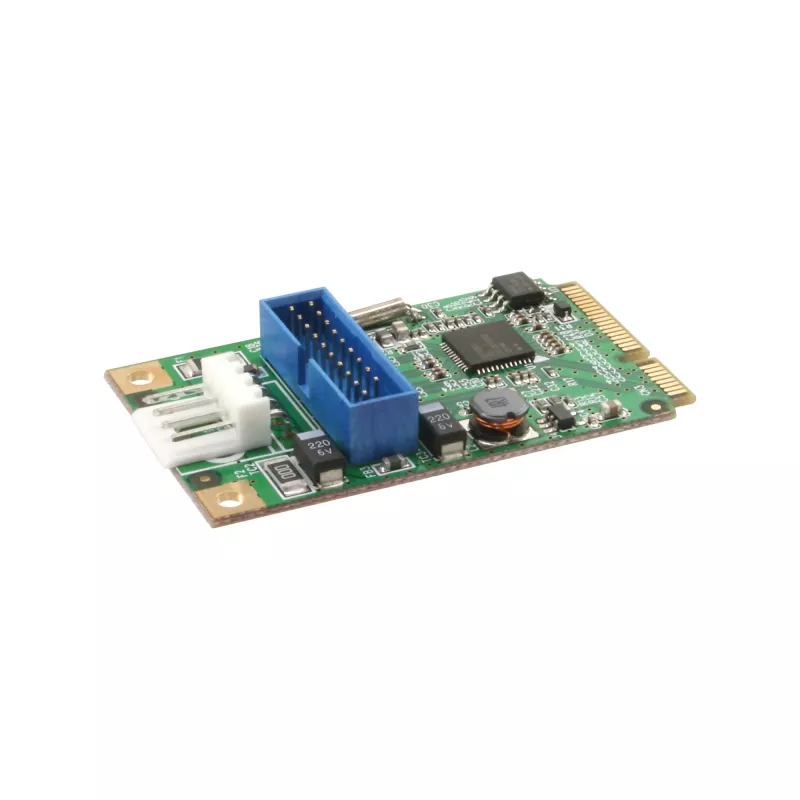

  • A native PCI-Express single chip design
  • Supports an internal USB 3.2 Gen. 1 socket capable for two expansion ports
  • Compliant with PCI Express base spec. revision 2.0 backward compatible to revision 1.0a
  • Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps
  • Supports PCI-Bus Power Management Interface specification revision 1.2
  • Compatible with PCI-E Mini Card Electromechanical specification revision 1.2
  • Compatible with Full-Mini (F1) card type form factor
  • Supports Windows 7 / Vista / XP / Server 2003-2008 32/64-bit
  • USB 3.2 Gen. 1 Interface: Complies with Universal Serial Bus 3.0 specification revision 1.0
  • Backward compatible to USB 2.0 and PCI-Express 1.0
  • Compliant with Intel's Extensible Host Controller Interface(xHCI) specification revision 1.0
  • Supports USB compliant data transfer types(Control/Bulk/Interrupt/Isochronour)
  • Supports the following data transfer rate: USB 2.0 mode up to 480 Mbps, USB 3.2 Gen. 1 mode up to 5 Gbps
  • Max. 5V/900mA power output to each USB 3.2 Gen. 1 Port
  • Support up to two USB 3.2 Gen. 1 ports on a standard internal 19 pins box header
  • 4-pin internal FDD power connector for extra power to the USB devices
  • Fully Plug and Play compatible
  • System Requirement: Computer system with one Mini PCI-Express slot available, Properly installed one of the supported OS mentioned above
  • Renesas 0720202

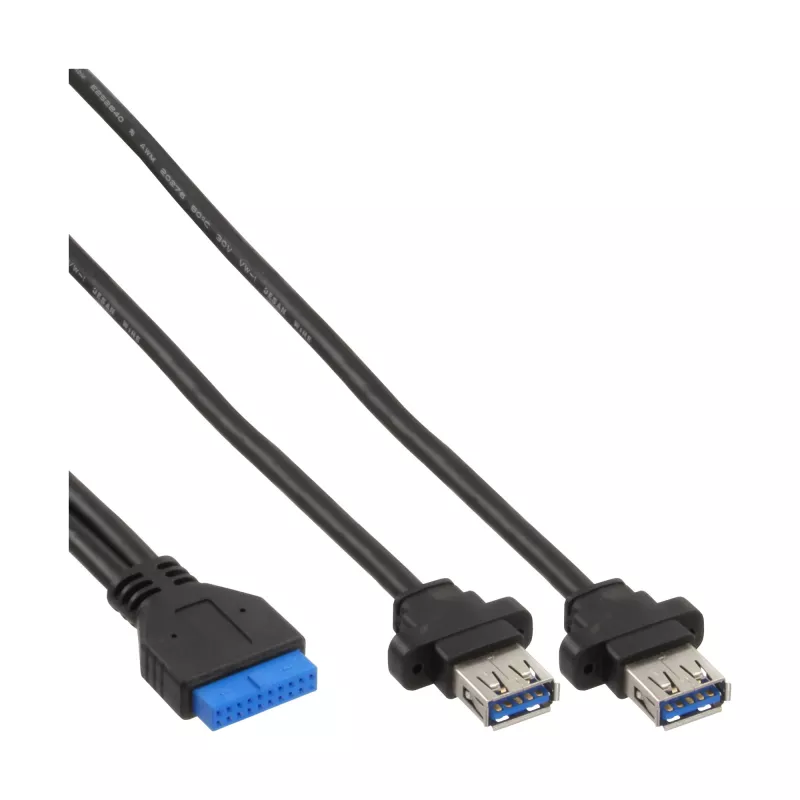

  • Package Content: Mini PCI-Express to USB 3.2 Gen. 1 Host Controller Card, USB internal cabel 80cm, User Manual, Software Driver CD
  • Internal
  • Host interface: Mini PCI Express
  • Output interface: USB 3.2 Gen 1 (3.1 Gen 1)

Especificações

Especificações
Altura da embalagem
40 mm
Certificados de conformidade
RoHS
Compatibilidade com Mac
No
Interface de saída
USB 3.2 Gen 1 (3.1 Gen 1)
Interface do anfitrião
Mini PCI Express
Interno
Sim
Largura da embalagem
143 mm
Ligar e usar
Sim
Número de portas USB 3.2 Gen 1 (3.1 Gen 1) tipo A
2
Peso
91 g
Peso da embalagem
91 g
Portas Ethernet LAN (RJ-45)
0
Portas Firewire (IEEE 1394)
0
Portas mini-SAS externas
0
Profundidade
1.52 mm
Profundidade da embalagem
175 mm
Sistemas operativos compatíveis
Windows 7 / Vista / XP / Server 2003-2008 32/64-bit
Taxa de transferência de dados
5 Gbit/s
Tecnologia de conectividade
Com fios
Tipo de ranhura CardBus PCMCIA
No
Volume da embalagem
1000 cm³
