Placa PCI Express Conceptronic SATA 600

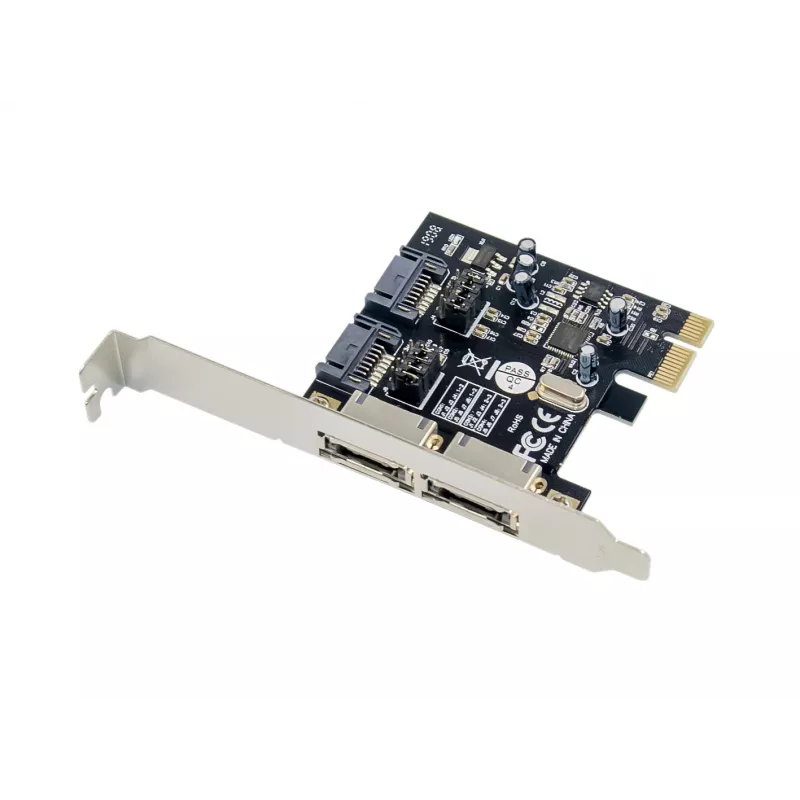

The Conceptronic SATA Card CSATA600EXI is a PCI Express expansion card that adds SATA-3 connectivity to a desktop PC. It provides a maximum data transfer rate of 6 Gbit/s and supports both internal SATA and external eSATA connections. The card is designed for straightforward installation in a PCIe slot and is compatible with common Windows operating systems. Its compact black design fits standard desktop cases and enables faster file transfers and additional storage connections.

Advantages

The card delivers SATA-3 performance (up to 6 Gbit/s) for faster copying and access to large files, supports a mix of internal SATA and external eSATA ports for flexible connectivity, and uses a PCIe host interface for reliable bandwidth. It is compact and simple to install, and is compatible with a range of Windows systems.

Suitable for

• Adding internal SATA drives to a desktop PC
• Connecting external eSATA storage devices
• Upgrading older systems to SATA-3 speeds
• Users who need fast transfers of large files

Key specifications

• Model: Conceptronic CSATA600EXI
• Host interface: PCIe
• Output interface: SATA, eSATA
• Maximum data rate: 6 Gbit/s (SATA-3)
• Compatibility: Windows operating systems
• Colour: Black
• Dimensions (approx.): 35 mm × 64 mm × 1.6 mm
• Weight: 0.026 kg

How to use

Install the card into an available PCI Express slot on your desktop motherboard, secure it to the case, and connect internal SATA cables to your drives or plug external eSATA devices into the external ports. After powering on the system, install any required drivers provided by the manufacturer or allow the operating system to load compatible drivers. Once recognized, configure the connected drives in your OS or BIOS as needed.

Recommendations

Use good-quality SATA and eSATA cables and ensure the card is seated properly in the PCIe slot. For maximum performance, connect SATA-3 capable drives and use a PCIe x1 or higher slot. Verify driver compatibility with your Windows version before installation.
