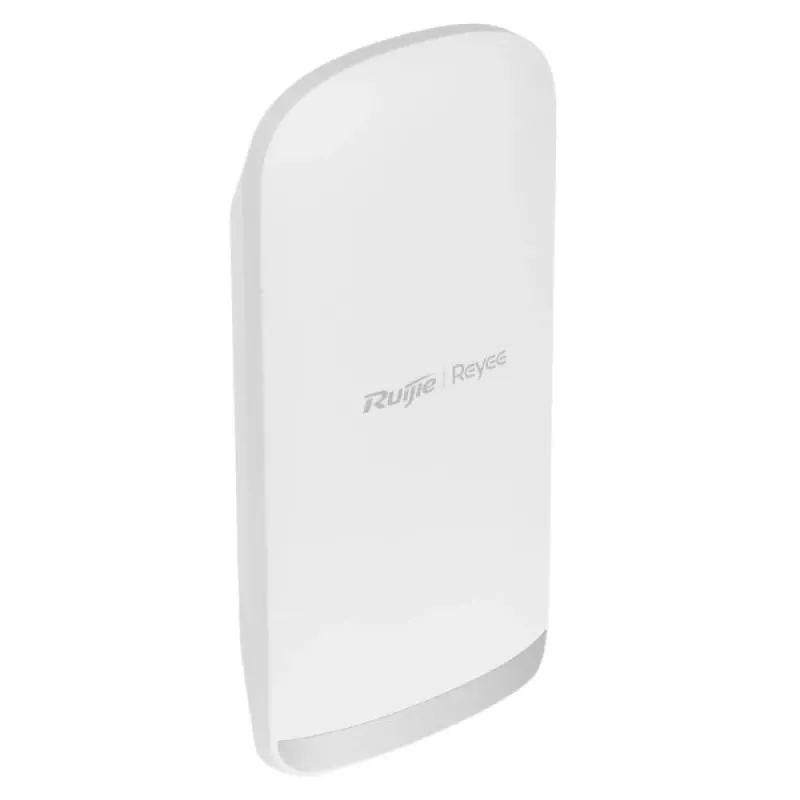

Ponto de acesso RUIJIE Reyee RG-EST330F-P — antena direcional, WiFi 5 5 GHz 876 Mbit/s, 3×FE portas, 1×PoE IN, 2×PoE OUT, uso exterior IP55, 13 dBi, alcance de 3 km

RUIJIE Reyee RG-EST330F-P is a directional outdoor access point operating on the 5 GHz band with WiFi 5 technology and a maximum PHY rate of 876 Mbps. The unit integrates a 13 dBi directional antenna in an IP55-rated housing designed for outdoor installation. It includes three Fast Ethernet ports for uplink and local connections, one selectable passive/active PoE IN (with 12 V DC option) and two PoE OUT ports to power remote devices, enabling flexible deployment in point-to-point and point-to-multipoint links over distances up to 3 km. The device supports cloud management for centralized configuration and monitoring.

Advantages

The device combines a high-gain directional antenna and a weatherproof enclosure to provide focused outdoor coverage and reliable links across long distances. Multiple Fast Ethernet ports and PoE IN/OUT options allow both data connectivity and remote powering of client devices from a single unit, simplifying outdoor network topology. Support for cloud management reduces on-site maintenance needs and enables remote monitoring and firmware updates.

Suitable for

• Point-to-point wireless bridges between buildings or towers
• Point-to-multipoint outdoor coverage for small campuses or sites
• Backhaul links for surveillance cameras and remote sensors
• Extending network connectivity to remote outdoor areas

Key specifications

• Wireless standard: IEEE 802.11ac (WiFi 5) on 5 GHz band
• Maximum wireless data rate: up to 876 Mbps (PHY)
• Antenna gain: integrated 13 dBi directional antenna
• Coverage range: up to 3 km (line-of-sight, environment dependent)
• Network ports: 3 × Fast Ethernet (10/100 Mbps)
• Power interfaces: 1 × PoE IN (passive/active selectable) with 12 V DC option; 2 × PoE OUT for powering downstream devices
• Housing protection: IP55-rated for outdoor use
• Management: cloud-based management support

How to use

Mount the access point in an outdoor location with clear line-of-sight toward the target site, ensuring the antenna is aimed precisely to establish a directional link. Connect the primary uplink to one of the Fast Ethernet ports and supply power via the PoE IN interface or the 12 V DC input according to installation requirements. Use the PoE OUT ports to power compatible remote devices such as cameras or secondary access points. Configure wireless parameters, network settings and security through the cloud management platform or local interface before deploying the link for production use.

Recommendations

Select mounting points that provide unobstructed line-of-sight and sufficient elevation to minimize interference and maximize the achievable range. Verify local regulations for outdoor wireless installations and choose appropriate cable routing and surge protection to protect the unit and connected equipment from weather and electrical events.
