Ponto de acesso sem fios Allied Telesis AT-TQ6602 GEN2-00 — Dual-band 2,4/5 GHz, PoE, máx. 19 W, branco

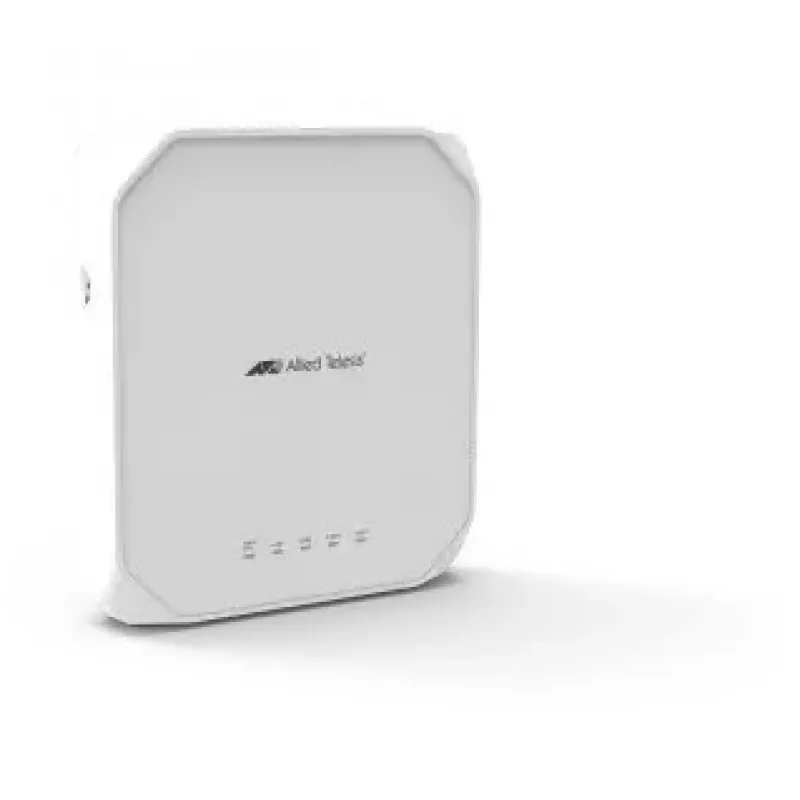

The Allied Telesis AT-TQ6602 GEN2-00 is a ceiling- or wall-mountable wireless access point that delivers dual-band connectivity on 2.4 GHz and 5 GHz bands. Built for enterprise and campus deployments, the device supports IEEE 802.11a/b/g/n/ac/ax standards and implements Wi‑Fi 6 features with four spatial streams (4x4) to provide high raw capacity. Security support includes WPA, WPA2 and WPA3 as well as legacy WEP. The unit is powered via Power over Ethernet (PoE) and has a maximum power consumption of 19 W. Available in white and weighing 1.2 kg, the access point is intended for high-density environments where consistent wireless throughput and multi-gigabit uplinks are required.

Advantages

The AT-TQ6602 GEN2-00 combines Wi‑Fi 6 performance with dual-band operation to increase network capacity and client density while maintaining backward compatibility with older Wi‑Fi standards. Multi-gigabit uplink capability helps prevent wired bottlenecks and supports high aggregate throughput. PoE operation simplifies installation in ceilings and on walls by removing the need for a separate power outlet. Broad security algorithm support, including WPA3, enables modern authentication methods while permitting legacy device access when needed.

Suitable for

• Enterprise office environments requiring dense Wi‑Fi coverage
• University and campus buildings with mixed client devices
• Conference rooms and meeting spaces with high concurrent device counts
• Retail and public areas needing managed, secure wireless access

Key specifications

• Wireless bands: dual-band 2.4 GHz and 5 GHz
• Wi‑Fi standards: IEEE 802.11a/b/g/n/ac/ax (Wi‑Fi 6)
• Spatial streams: 4x4 (four spatial streams)
• Maximum raw capacity: 3.55 Gbps
• Power: Power over Ethernet (PoE) support; maximum consumption up to 19 W
• Networking protocols: VLAN tagging and Ethernet standards for wired integration
• Physical: ceiling/wall mountable, white color, weight 1.2 kg

How to use

Install the access point on a ceiling or wall using appropriate mounting hardware and position it to provide broad coverage for the intended area. Connect the device to a PoE-capable switch or injector to provide power and a network uplink; ensure your switch supports the required PoE class to supply up to 19 W. Configure SSIDs, security settings (WPA2/WPA3), radio channels and power levels via the management interface or your network controller according to site requirements. Verify multi-gigabit uplink negotiation on the wired switch to take advantage of the higher aggregate throughput.

Recommendations

For optimal performance in high-density deployments, enable Wi‑Fi 6 features and channel planning, place multiple APs to ensure overlapping coverage for seamless roaming, and use PoE switches with multi-gigabit ports to avoid uplink bottlenecks. Regularly update firmware and apply security best practices including WPA3 where supported.
