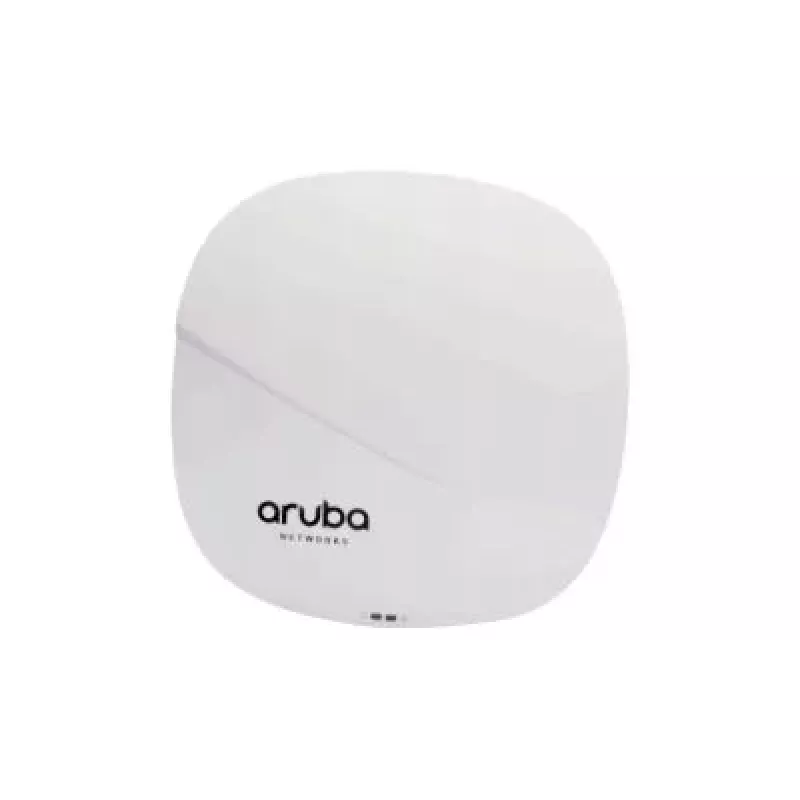

Ponto de acesso sem fios HPE Aruba Instant IAP-325 (RW) - Wi-Fi 5 dual-band

The HPE Aruba Instant IAP-325 (RW) is a high-performance wireless access point designed for enterprise networks. It delivers reliable Wi-Fi 5 (802.11ac Wave 2) connectivity with dual-band concurrent operation on 2.4 GHz and 5 GHz frequencies, supporting up to 1733 Mbps on 5 GHz and 600 Mbps on 2.4 GHz for an aggregate peak data rate of 2.3 Gbps. With 4x4:4 MIMO and integrated omni-directional antennas, this access point ensures robust coverage and high client density. It can be deployed in Aruba Instant mode (controller-less) or managed via Aruba Mobility Controller, offering flexibility for various network architectures.

Advantages

The IAP-325 provides seamless roaming, advanced security with WPA3, and easy setup through the Aruba Instant mobile app. Its dual Gigabit Ethernet ports with PoE+ support simplify installation, while the integrated Bluetooth Low Energy (BLE) enables location-based services. The access point is ideal for high-density environments such as offices, schools, and hospitals.

Suitable for

• Enterprise offices requiring high-speed Wi-Fi
• Educational campuses with high client density
• Healthcare facilities needing reliable connectivity
• Retail and hospitality environments

Key specifications

• Wireless Standard: IEEE 802.11ac Wave 2, 802.11a/b/g/n
• Frequency Bands: 2.4 GHz, 5 GHz (Dual-band concurrent)
• MIMO Configuration: 4x4:4 Spatial Streams (both bands)
• Max Data Rate: 2.3 Gbps aggregate
• Antenna Type: Integrated omni-directional (3.9 dBi @ 2.4 GHz, 5.4 dBi @ 5 GHz)
• Ethernet Ports: 2 x 10/100/1000BASE-T (RJ-45)
• PoE Support: 802.3at PoE+ (Class 4) or 802.3af PoE (Class 3)
• Power Consumption: Max 20.5W (PoE+), Max 15.5W (PoE)
• Management Modes: Aruba Instant (controller-less) or Mobility Controller
• Security: WPA3, WPA2, WPA, 802.1X, MAC authentication, Captive Portal
• Mounting: Ceiling tile rail, solid surface (mount kit included)
• Operating Temperature: 0°C to 50°C
• Regulatory Domain: RW (Rest of World)

Recommendations

For optimal performance, use with an 802.3at PoE+ switch. The IAP-325 is an excellent choice for upgrading to Wi-Fi 5 Wave 2 with future-proof features like BLE and multi-user MIMO.
