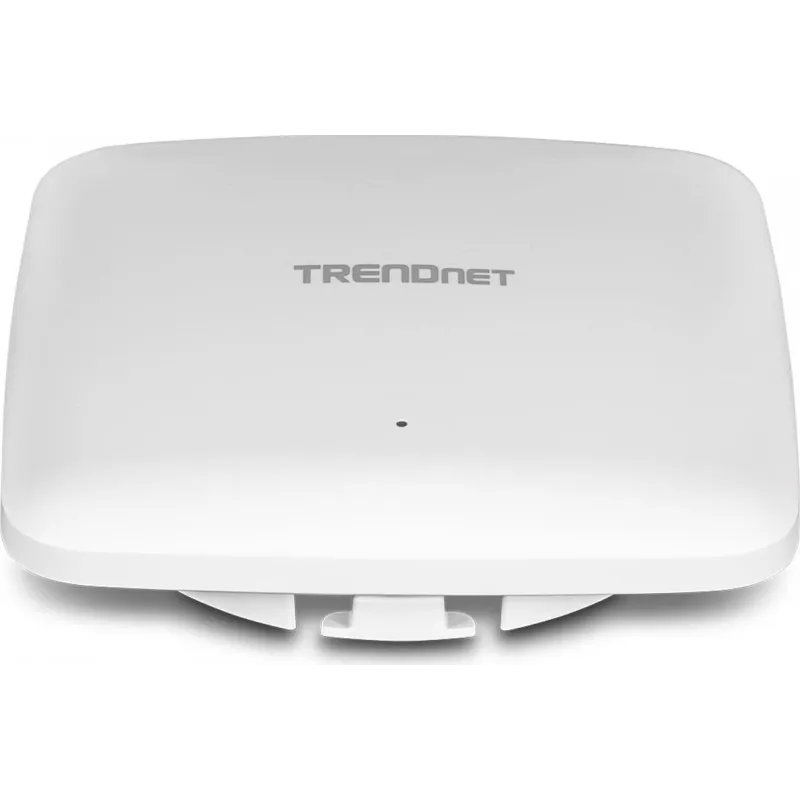

Ponto de acesso TRENDnet AX3000 Dualband WiFi 6 PoE+

AX3000 dual-band Wi-Fi 6 speeds up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, powered by PoE+ for flexible deployment.

Overview

The TRENDnet TEW-923DAP is a high-performance Wi-Fi 6 access point delivering combined speeds of up to 3000 Mbps. It features a single Gigabit Ethernet port with IEEE 802.3at PoE+ support, enabling both data and power over one cable. Internal antennas and 2x2 MU-MIMO technology ensure reliable coverage and efficient multi-device connectivity.

What stands out

• Wi-Fi 6 (802.11ax) technology with OFDMA and beamforming for improved efficiency and range.
• Dual-band operation: 2.4 GHz (574 Mbps) and 5 GHz (2402 Mbps).
• PoE+ (802.3at) support simplifies installation—no separate power outlet needed near the access point.
• Multiple operating modes: Access Point, WDS AP, WDS Bridge, Repeater, and Client.
• Advanced security with WPA3 encryption.
• Wall or ceiling mountable for flexible placement.

Technical details

• Networking standards: IEEE 802.11ax (Wi-Fi 6)
• Frequency band: Dual-band (2.4 GHz / 5 GHz)
• Ethernet LAN data rates: 10/100/1000 Mbps
• Ethernet LAN (RJ-45) ports: 1
• Power over Ethernet (PoE): IEEE 802.3at PoE+
• Antenna type: Internal
• MIMO: 2x2 MU-MIMO
• Security algorithms: WPA3, WPA2-PSK, WPA2-Enterprise, WPA-PSK, WPA-Enterprise, AES, TKIP
• Management: Web-based GUI
• Quality of Service (QoS) support: Yes
• VLAN support: Yes (802.1Q)
• Operating temperature: 0 – 40 °C
• Power consumption (typical): 15 W
• Placement: Wall / Ceiling

Our verdict

The TRENDnet TEW-923DAP is a solid choice for businesses upgrading to Wi-Fi 6, offering high speeds, PoE+ convenience, and robust security in a compact design.
