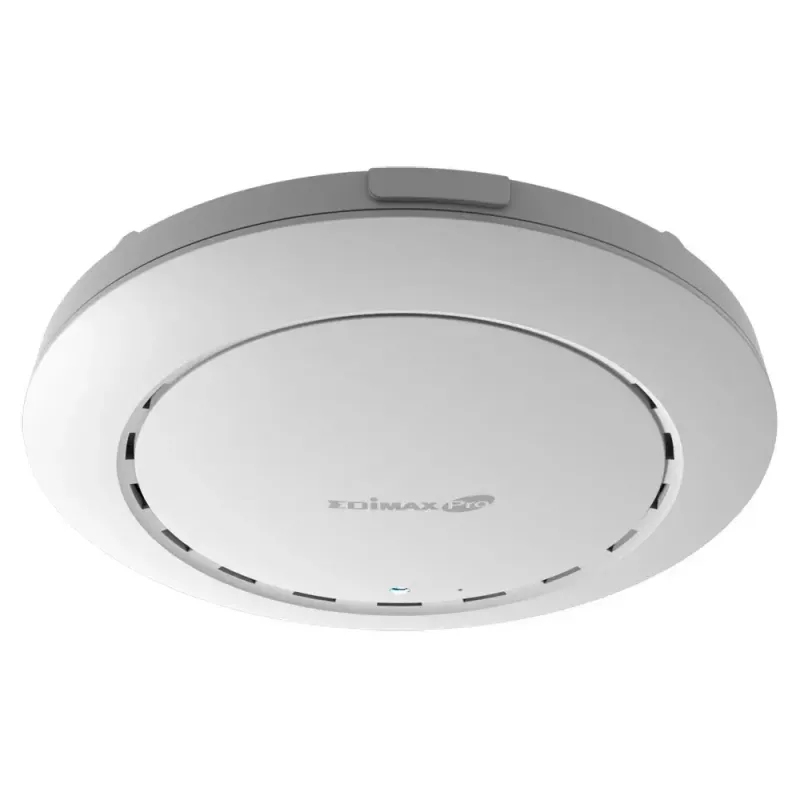

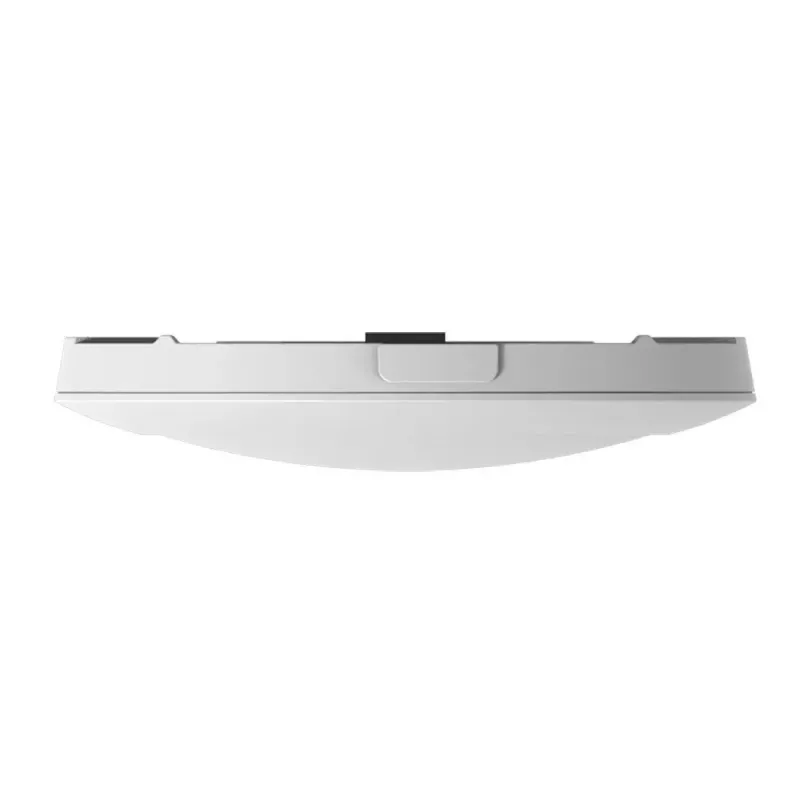

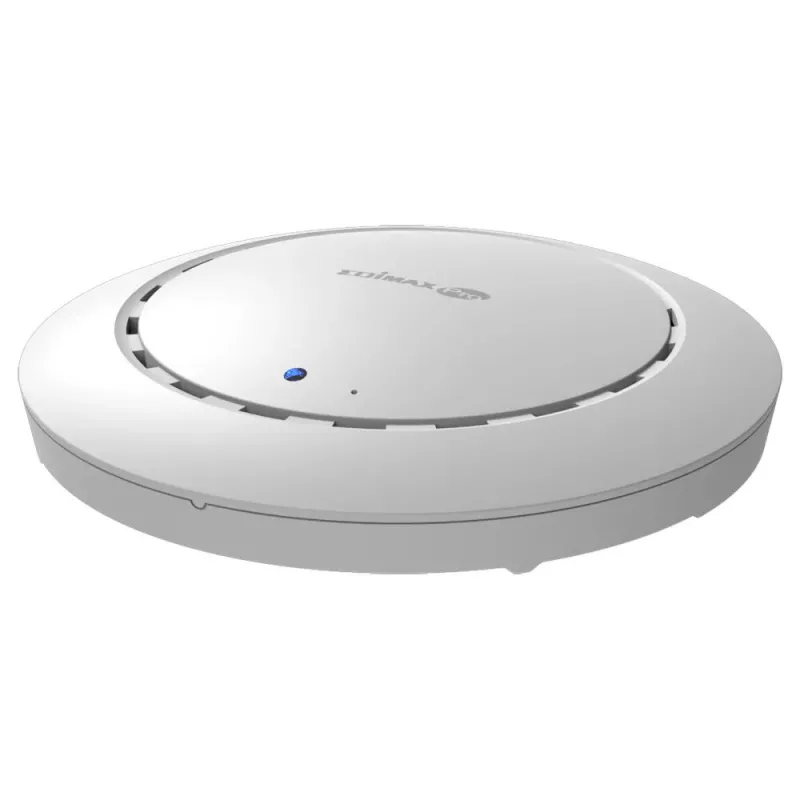

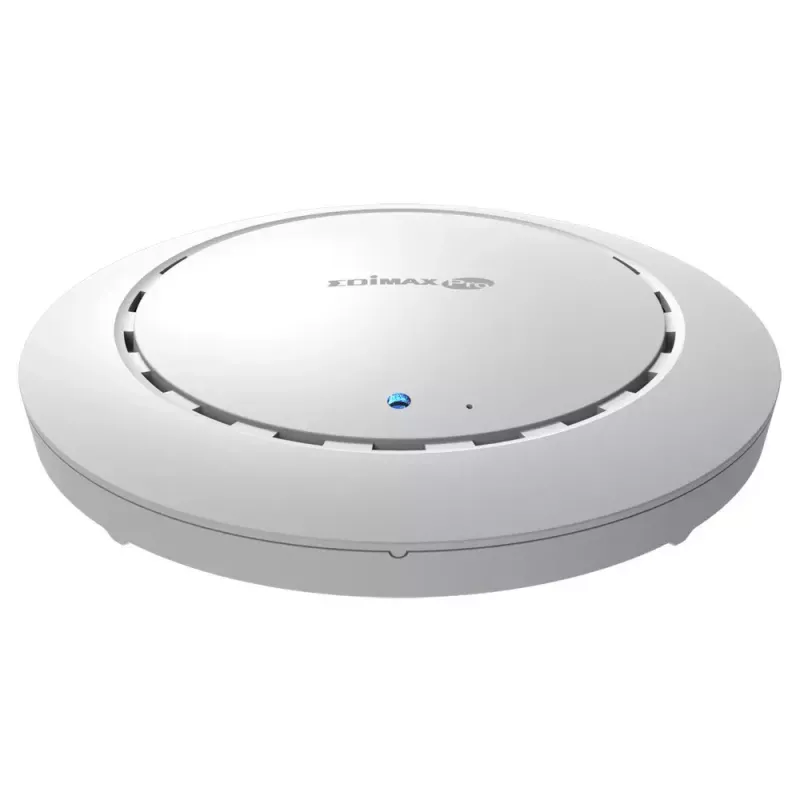

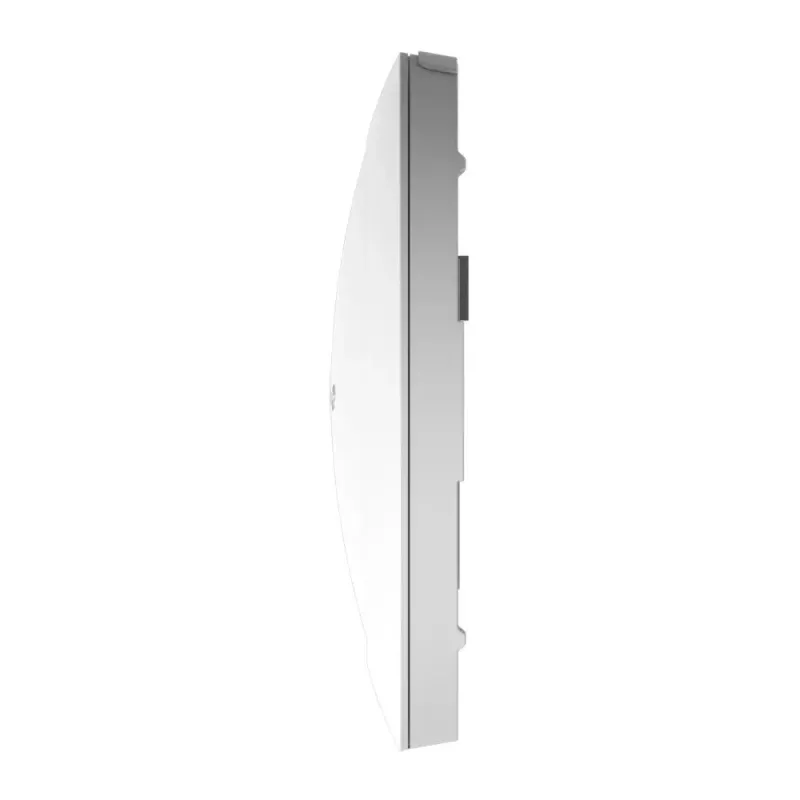

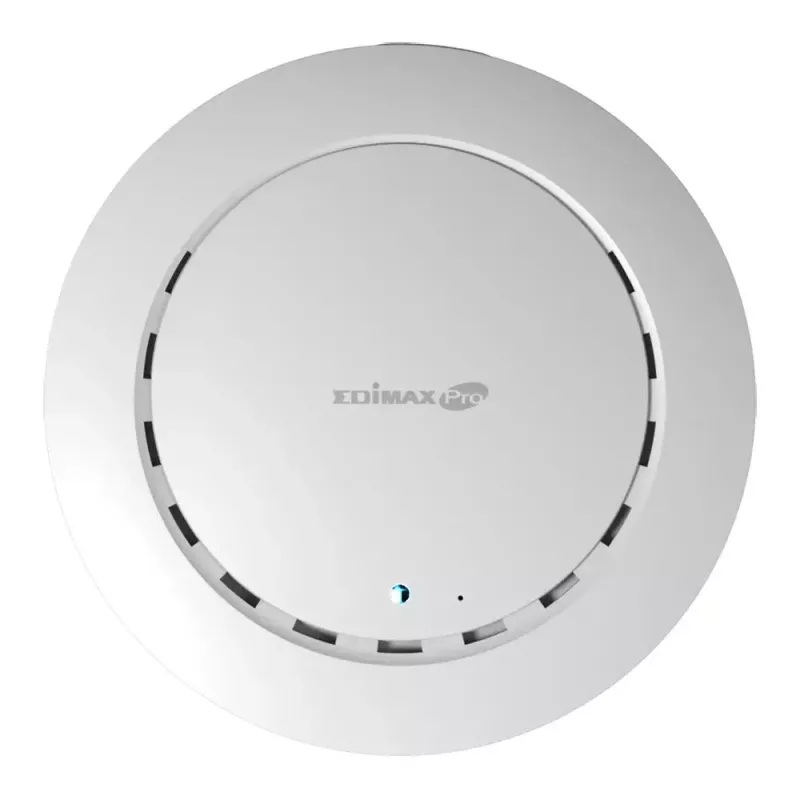

Ponto de acesso wireless Edimax CAP300 300 Mbit/s PoE Branco

The Edimax CAP300 is an entry-level wireless access point that delivers IEEE 802.11n wireless speeds of up to 300 Mbit/s in a compact white ceiling-mount design. It supports Power over Ethernet (PoE) for flexible installation and includes enterprise-focused features such as multiple SSIDs, built-in RADIUS authentication and an intuitive web-based management interface for centralized control of multiple access points.

Advantages

The CAP300 combines industrial-grade build quality with straightforward setup, offering wide coverage, high sensitivity and seamless mobility with fast roaming between access points. PoE support simplifies deployment, while multiple SSIDs and 802.1x/RADIUS compatibility provide layered security and user segregation. Its compact, durable housing is suitable for high-density usage in business environments.

Suitable for

• Small and medium-sized business offices
• Schools and campus networks
• Hotels and hospitality areas
• Healthcare facilities and clinics
• Centralized deployments requiring managed AP arrays

Key specifications

• Wireless standard: IEEE 802.11n (backward compatible with 802.11b/g)
• Maximum wireless rate: 300 Mbit/s
• Ethernet port: 1 × RJ-45 (LAN), supports up to 1000 Mbit/s
• Power: Power over Ethernet (IEEE 802.3af/802.3at)
• Authentication/security: WPA2, IEEE 802.1x, built-in RADIUS server
• Weight: 0.2873 kg
• Color: White

How to use

Mount the CAP300 on a ceiling or appropriate surface, connect the device to a PoE-capable switch or injector using an Ethernet cable, then access the web-based management interface to configure SSIDs, security (WPA2/802.1x), RADIUS settings and roaming options. For centralized management, add the access point into your AP array architecture and apply group policies as required.

Recommendations

For best performance, place access points to minimize physical obstructions, enable fast roaming for environments with mobile users, and segregate guest and corporate traffic using multiple SSIDs. Use a PoE switch rated for the CAP300 and keep firmware updated to maintain security and stability.
