Portkeys OEYE-RED visor eletrónico 4K 3G-SDI/HDMI

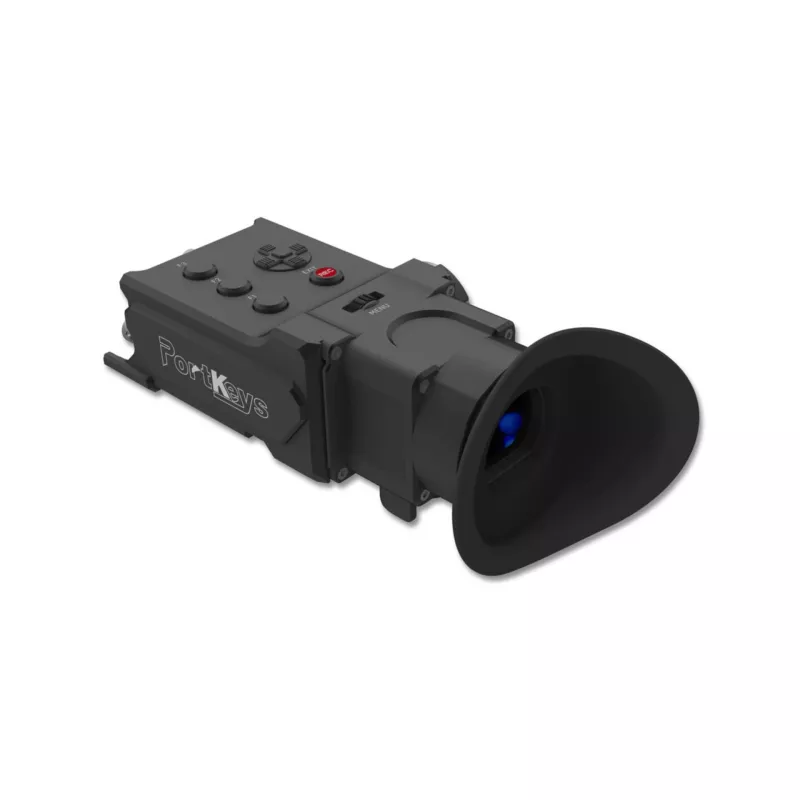

The Portkeys OEYE-RED is a professional electronic viewfinder designed for filmmakers and videographers who demand accurate monitoring in bright environments. Featuring a 0.71-inch OLED display with Full HD resolution and a high contrast ratio of 100,000:1, this viewfinder delivers crisp, detailed images with true blacks. It supports both 3G-SDI and HDMI inputs, making it compatible with a wide range of cameras and recorders. The OEYE-RED includes essential monitoring tools such as waveform, vectorscope, histogram, false color, peaking, zebras, grids, and LUT support, ensuring precise exposure and focus control. Its rugged aluminum alloy construction and ARRI rosette mounting provide durability and flexibility on set.

Advantages

High-resolution OLED display with exceptional contrast for accurate image evaluation. Compact and lightweight design with robust aluminum housing. Versatile input options including 3G-SDI and HDMI with loop-through output. Comprehensive monitoring tools for professional workflows. Adjustable diopter from -8 to +4 for user comfort.

Suitable for

• Professional film and video production
• Studio and field monitoring
• Camera operators requiring precise focus and exposure
• Use with RED, ARRI, Sony, and other cinema cameras

Key specifications

• Display: 0.71-inch OLED, 1920x1080, 8-bit, 100,000:1 contrast
• Inputs: 1x 3G-SDI, 1x HDMI 1.4
• Output: 1x 3G-SDI loop-through
• Max SDI resolution: 1080p60
• Max HDMI resolution: 4K DCI 24p / 4K UHD 30p
• Power: DC 7-18V via 2-pin LEMO or D-Tap, ~6W
• Mounting: ARRI rosette, 1/4"-20 thread
• Diopter adjustment: -8 to +4
• Tools: Waveform, vectorscope, histogram, false color, peaking, zebras, grids, LUTs, anamorphic de-squeeze
• Material: Aluminum alloy
• Firmware update via USB-A

Recommendations

For optimal performance, use with a compatible battery or power source. Ensure firmware is updated to the latest version for best compatibility. The OEYE-RED is an excellent choice for professionals seeking a reliable, high-quality electronic viewfinder.
