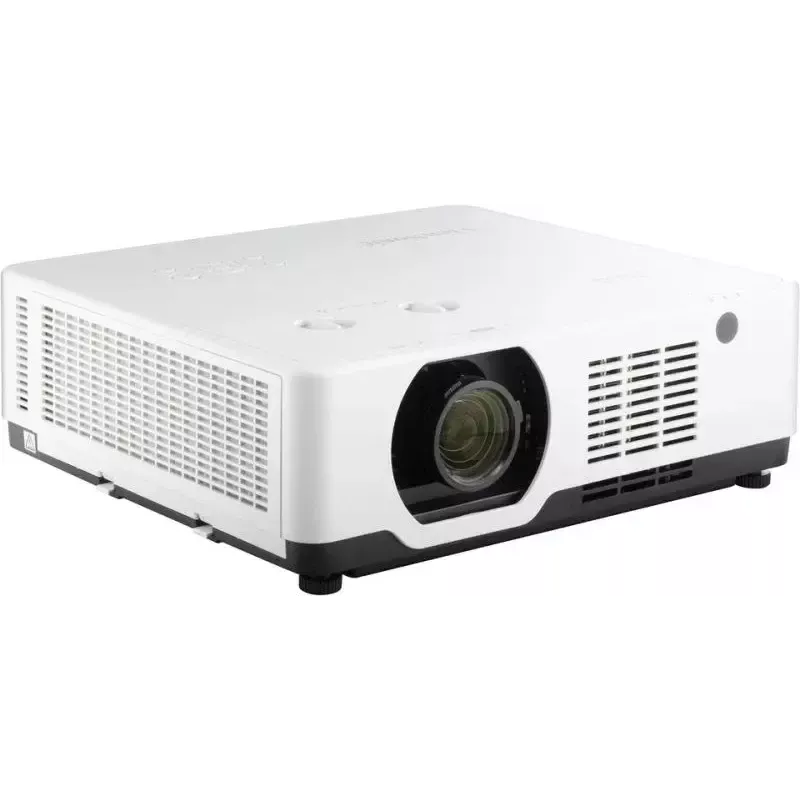

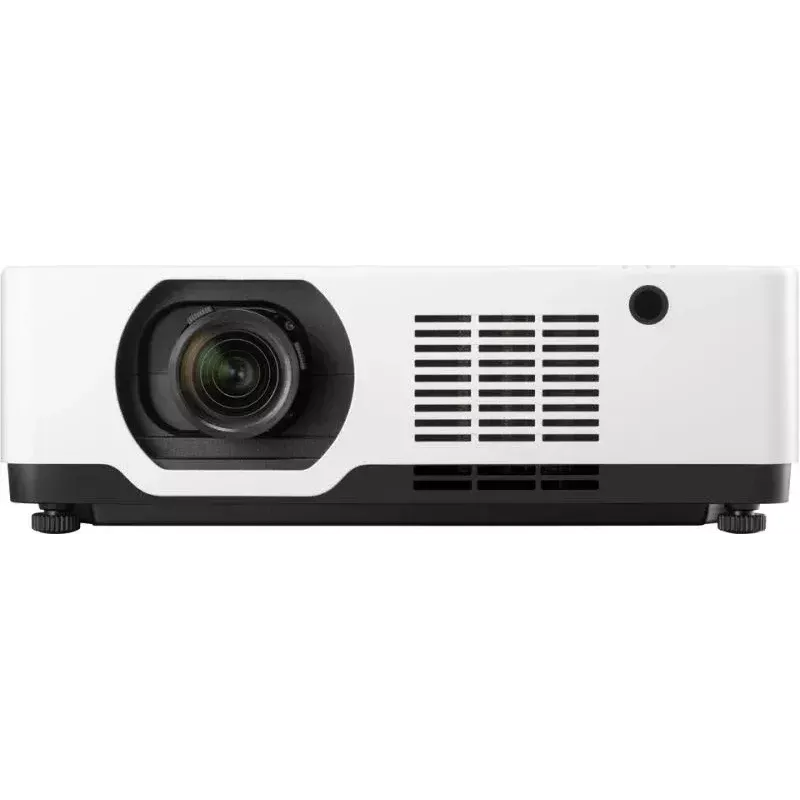

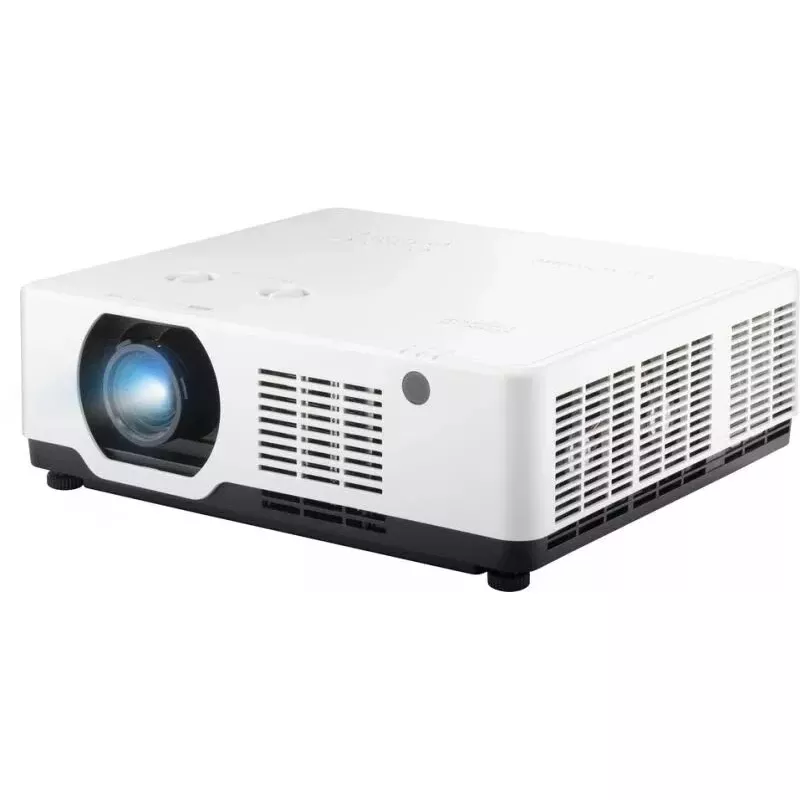

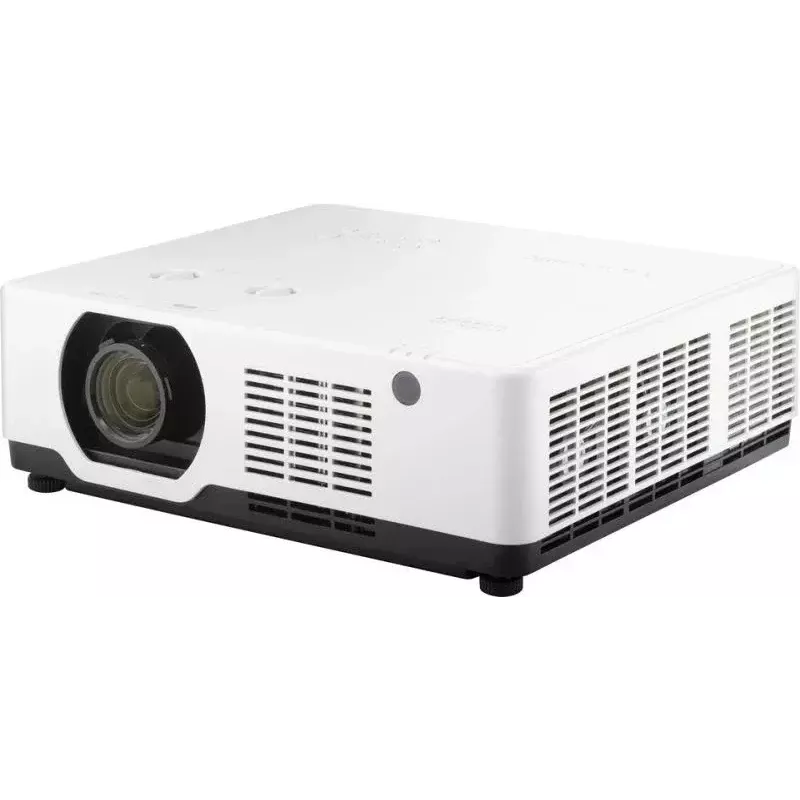

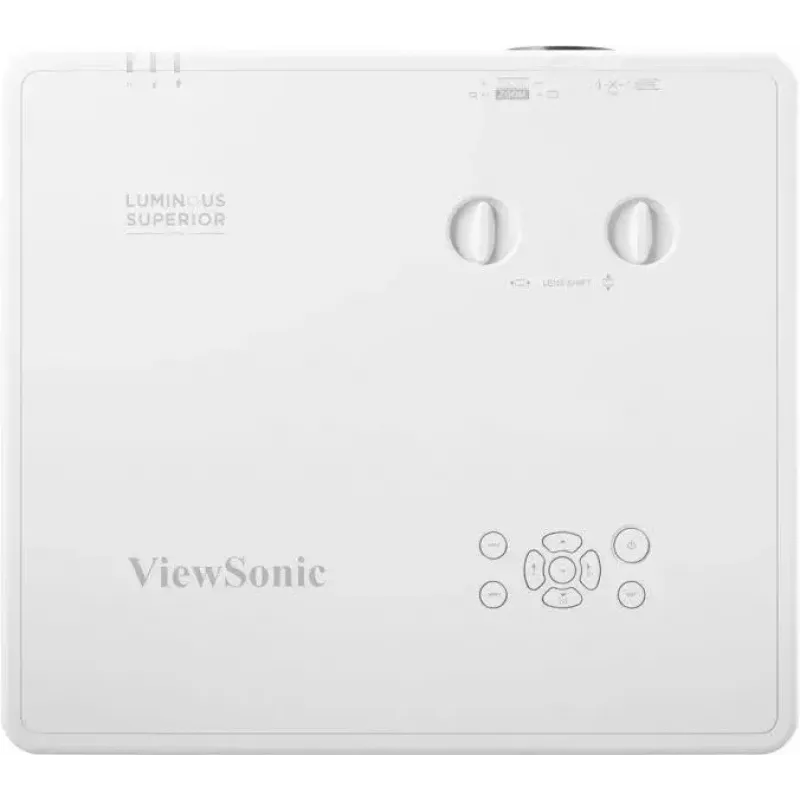

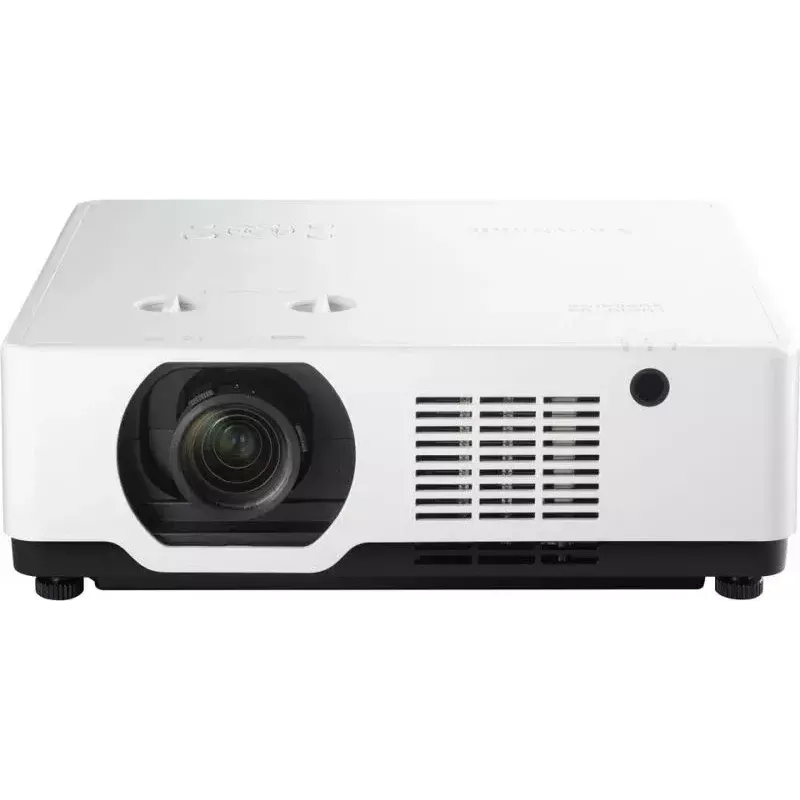

Projetor de dados Viewsonic LSC601WU Projetor de distância padrão 6000 lúmenes ANSI 3LCD WUXGA (1920x1200) branco

The ViewSonic LSC601WU is a lamp-free, high-brightness data projector that uses 2nd generation laser phosphor technology to deliver up to 6,000 ANSI lumens and extended operation life. With native WUXGA resolution (1920×1200) it can project an ultra-large image up to 300" and supports flexible installations including 21:9 content for Microsoft Teams Rooms and 360° projection.

Advantages

Laser phosphor light source provides lamp-free operation, faster start/stop and long service life. High brightness (6,000 ANSI lumens) and WUXGA resolution produce clear images in well-lit spaces. Flexible optical features — 1.6× optical zoom, horizontal/vertical lens shift, H/V keystone and 4-corner adjustment — enable precise image placement without relocating the projector. Compact, heat-resistant module design improves reliability and reduces maintenance needs. Comprehensive LAN and third-party control compatibility (Crestron, PJ Link, ATEN, Extron) simplifies centralized management.

Suitable for

• Boardrooms and conference rooms
• Lecture halls and classrooms
• Galleries and exhibition spaces
• Simulation and training venues
• Microsoft Teams Rooms front-row and widescreen meeting setups

Key specifications

• Brand: VIEWSONIC
• Model: LSC601WU
• Projection technology: 3LCD (laser phosphor)
• Brightness: 6,000 ANSI lumens
• Native resolution: WUXGA (1920×1200)
• Native aspect ratio: 16:10 (supports 21:9 content)
• Screen size compatibility: up to 300" (762 – 7620 mm listed)
• Throw ratio: 1.08 – 1.76
• Optical zoom: 1.6×
• Installation features: H/V lens shift, H/V keystone, 4-corner adjustment, 360° projection

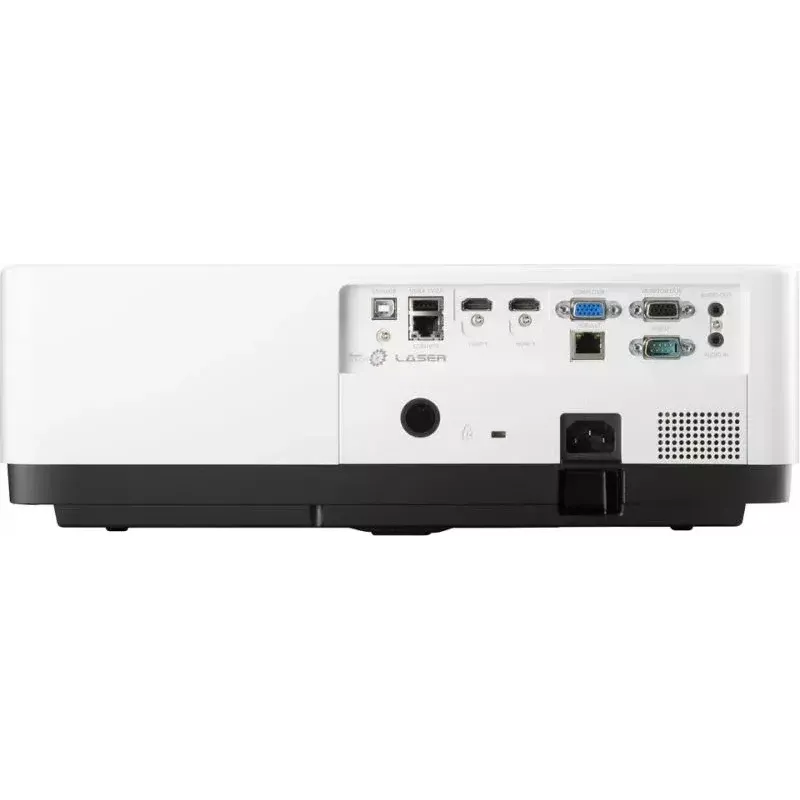

• Control: LAN, Crestron, PJ Link, ATEN, Extron
• Weight: 7.9 kg
• Colour: White

How to use

Place or mount the projector according to the required screen size and throw distance, then power it on to benefit from instant laser illumination. Use the optical zoom and lens shift controls to frame the image, apply H/V keystone or 4-corner adjustment for final alignment, and select the desired input source. For Microsoft Teams Rooms front-row mode, set the projector to 21:9 content formatting so presentations and participant video feeds display simultaneously. Connect the projector to your network for remote control and monitoring.

Recommendations

For reliable long-term performance, operate the projector in a well-ventilated environment, keep air filters clean if applicable, and integrate it into your room control system via LAN for scheduled power and firmware management. Use the 21:9 mode for widescreen meeting scenarios and the optical adjustments to minimise installation changes.
