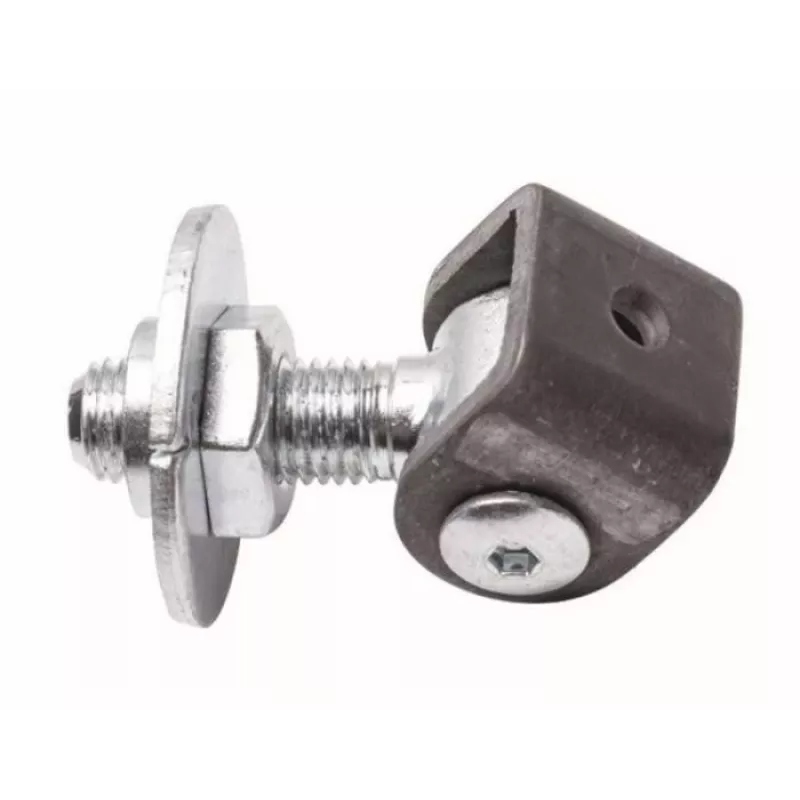

PSG 61.013 Dobradiça de soldar rosca M20 (ajustável)

The PSG 61.013 is a heavy-duty weld-on hinge designed for demanding industrial applications. Featuring an adjustable M20 threaded pin, this hinge allows precise horizontal and vertical alignment after installation, making it ideal for gates, heavy doors, and structural panels. Manufactured from raw steel (unfinished), it requires post-weld coating for corrosion protection.

Advantages

Adjustable design enables fine-tuning of door/gate alignment without disassembly. High load capacity of 200 kg per pair ensures reliable support for heavy-duty use. Simple welding installation provides a permanent, strong connection.

Suitable for

• Industrial gates and doors
• Heavy machinery enclosures
• Structural steel panels
• Agricultural and warehouse entrances

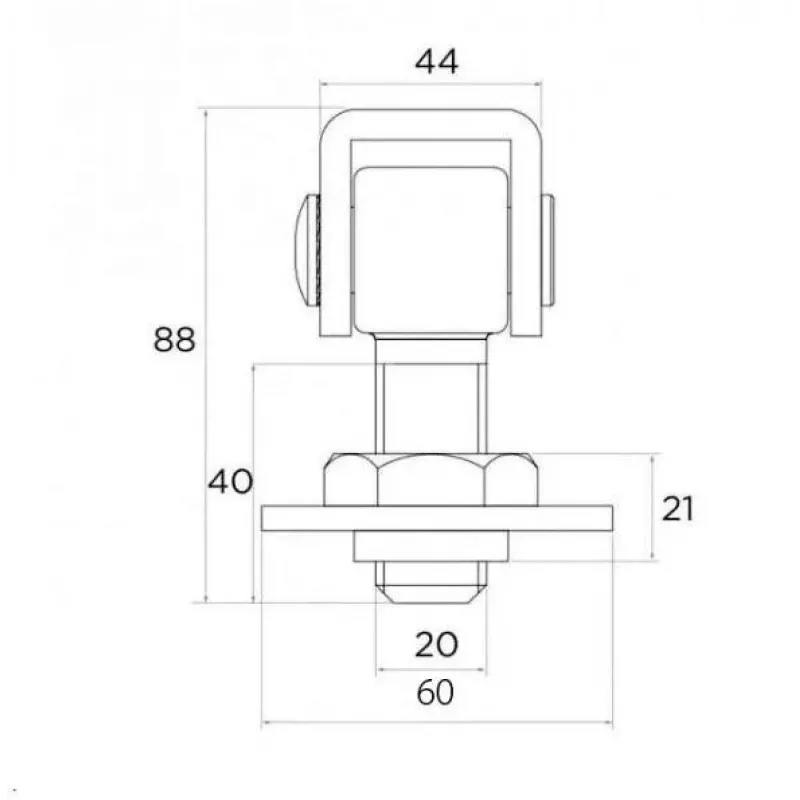

Key specifications

• Product Type: Weld-On Hinge
• Adjustment: Horizontal & Vertical (via threaded pin)
• Thread Size: M20
• Material: Raw Steel (unfinished)
• Pin Diameter: 20 mm
• Total Length: 125 mm
• Body Diameter: 32 mm
• Load Capacity: 200 kg per pair
• Mounting: Welding
• Components: 2 (male and female parts)
• Country of Origin: Poland

Recommendations

For optimal corrosion resistance, apply a suitable primer and paint or powder coating after welding. Suitable for vertical installation only. Always use in pairs for balanced load distribution.
