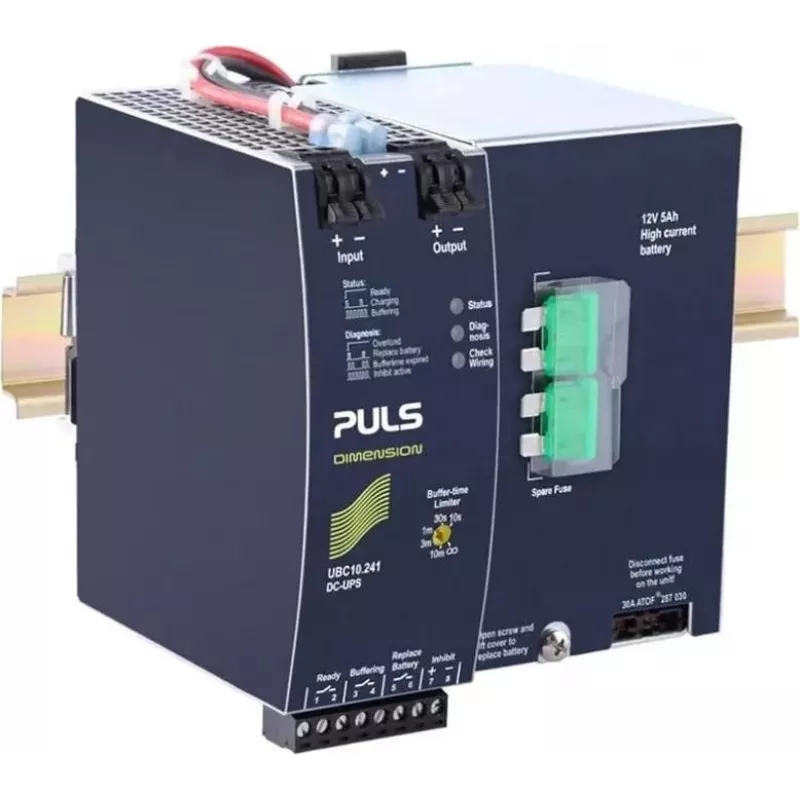

PULS DIMENSION UBC10.241 unidade de controlo DC-UPS com bateria integrada, 24V DC, 10A, 5Ah, calha DIN

The PULS DIMENSION UBC10.241 is a DC UPS control unit with an integrated VRLA lead-acid battery, engineered to provide seamless 24V DC backup power for industrial loads up to 10A. Its standout capability is delivering reliable, maintenance-free bridging during power interruptions, with a typical backup time of 10 minutes at full load and 25 minutes at 5A, ensuring continuous operation of critical systems.

Advantages

The UBC10.241 combines a high-efficiency DC-UPS controller and a 5Ah battery in a compact, DIN-rail mountable aluminum housing. It offers a wide input voltage range of 22.5 to 30 VDC, making it compatible with various 24V DC power supplies. The unit features comprehensive protection against overload, short-circuit, over-temperature, and battery deep discharge, safeguarding both the UPS and connected loads. Intelligent battery management extends battery life by preventing deep discharge and ensuring proper charging with a maximum current of 2A. Clear signaling via relay contacts and LEDs indicates DC-OK, battery mode, battery low, and replace battery status, simplifying monitoring and maintenance.

Suitable for

• Industrial automation and control systems requiring uninterrupted 24V DC power
• Process control, measurement, and monitoring equipment
• Machine building and factory automation where downtime is costly
• Marine and offshore applications (GL approval)
• Any 24V DC application needing short-term backup to safely shut down or bridge brief outages

Key specifications

• Input voltage: 22.5 - 30 VDC
• Output voltage (nominal): 24 VDC
• Output current (continuous): 10 A
• Integrated battery: VRLA lead-acid, 5 Ah
• Typical backup time: 10 min at 10A, 25 min at 5A
• Charging current: max 2 A; charging time to 90% approx. 10 hours
• Efficiency (normal mode): typ. 98.5%
• Operating temperature: -25 to +70 °C
• Mounting: DIN-rail
• Protection: overload, short-circuit, over-temperature, battery deep discharge
• Signaling: DC-OK, battery mode, battery low, replace battery (relay contacts and LEDs)
• Connections: screw terminals
• MTBF: > 1,000,000 hours
• Approvals: UL, cUL, CE, GL (Marine)
• Housing material: aluminum

Recommendations

For reliable 24V DC backup in compact industrial environments, the PULS UBC10.241 is an excellent choice. Its integrated battery, high efficiency, and robust protection make it ideal for critical loads where space is limited and uptime is essential.
