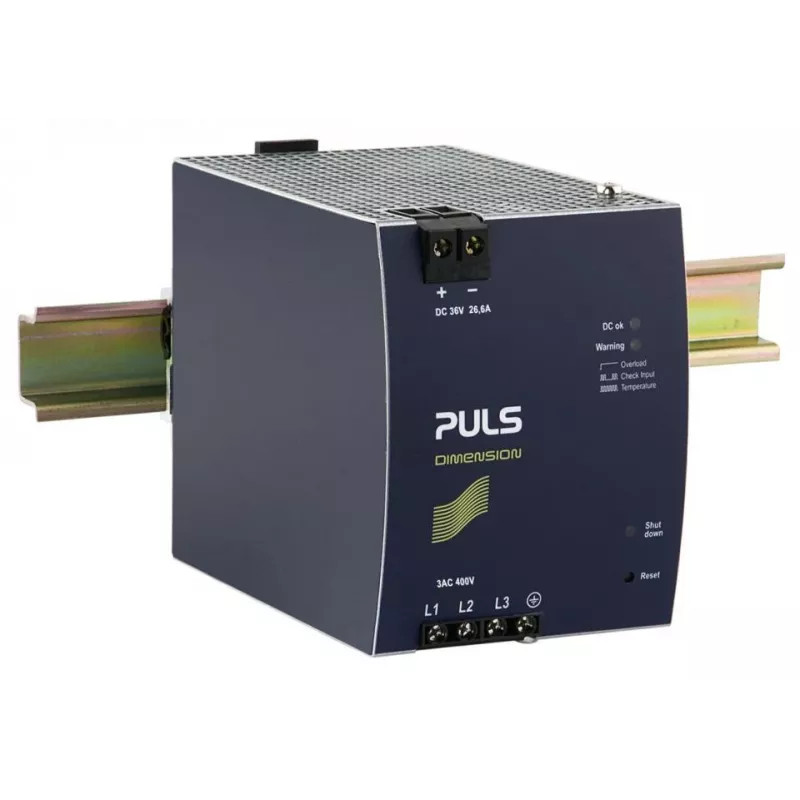

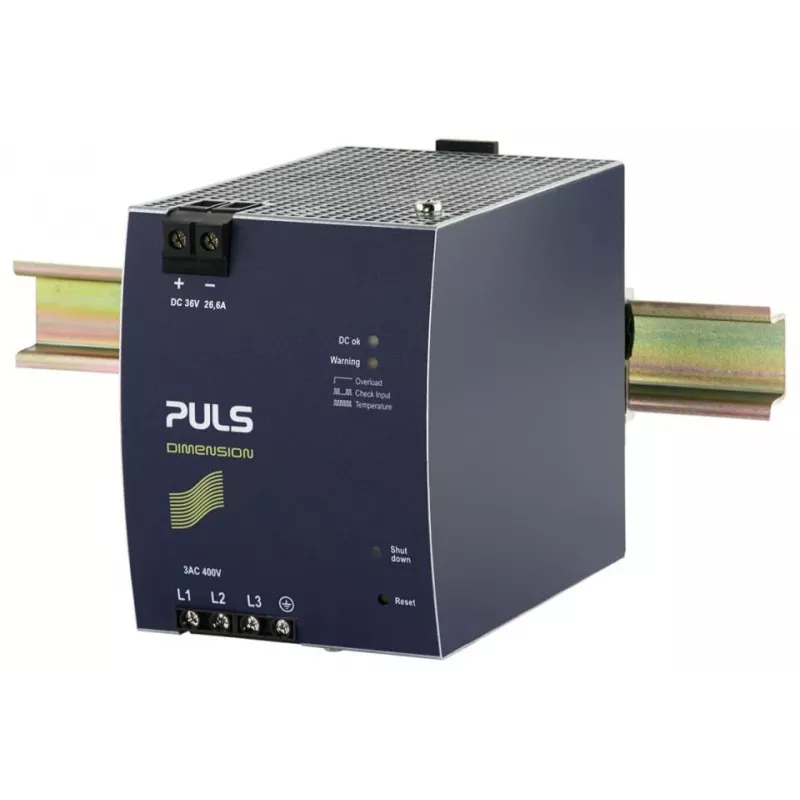

PULS XT40.361 fonte de alimentação para calha DIN 36V 26,6A 960W 1 saída

In industrial control cabinets and automation systems, the PULS XT40.361 delivers reliable 36V DC power from a three-phase 340-575V AC input. This DIN rail power supply unit provides 26.6A output current and 960W output power, making it suitable for demanding machinery, robotics, and process control applications where stable power is critical.

Key specifications

• Input voltage: 3x 340-575V AC (480-820V DC)
• Output voltage: 36V DC (adjustable 36-42V DC)
• Output current: 26.6A
• Output power: 960W
• Efficiency: up to 95.3%
• Mounting: DIN rail TS35/7.5 or TS35/15
• Operating temperature: -25°C to +70°C
• Cooling: convection (fanless)
• Protection: overload, short-circuit, overtemperature, overvoltage
• Ripple & noise: < 50mVpp
• Hold-up time: > 20ms
• Power factor correction: active PFC
• Connection: screw terminals
• Parallel operation: yes (for increased power or redundancy)

Why choose it

The XT40.361 combines high efficiency and robust protection in a compact DIN rail format. Its fanless convection cooling ensures silent operation and reduces maintenance, while active PFC improves power quality. The wide input voltage range accommodates various industrial grids, and the adjustable output allows fine-tuning for specific loads.

Ideal use cases

• Industrial automation and control systems
• Machinery and robotic power supplies
• Process control and instrumentation
• Building automation and HVAC systems

Good to know

The unit supports parallel operation for redundancy or higher power, and its screw terminals provide secure connections. It is designed for DIN rail mounting, simplifying installation in standard enclosures. The wide operating temperature range makes it suitable for harsh environments.
