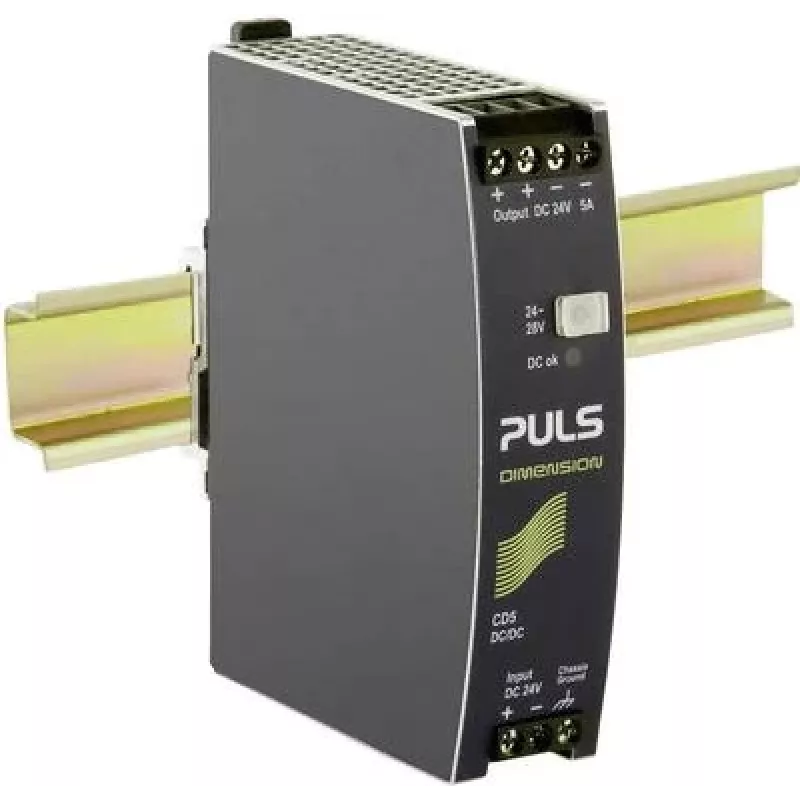

PULS DIMENSION CD5.241 conversor DC/DC 24V/5A 120W calha DIN

In industrial control cabinets and automation systems, the PULS DIMENSION CD5.241 provides a stable 24V DC output from a 24V DC input, delivering up to 5A and 120W for powering sensors, actuators, and controllers. Its DIN rail mounting and convection cooling simplify installation in space-constrained panels.

Key specifications

• Input voltage: 18 - 32 VDC (nominal 24 VDC)
• Output voltage: 24 VDC (adjustable 24 - 28 VDC)
• Output current: 5 A
• Output power: 120 W
• Efficiency: >90.5%
• Mounting: DIN rail
• Operating temperature: -25°C to +70°C
• Cooling: Convection
• Connections: Screw terminals
• Protection: Overload, short-circuit, over-temperature, input reverse polarity
• Ripple and noise: <50 mVpp
• Isolation voltage: 2.5 kVAC
• MTBF: >1,000,000 h

Why choose it

High efficiency reduces heat generation and energy costs, while the wide input range ensures reliable operation even with fluctuating DC supplies. The adjustable output voltage adds flexibility for different load requirements.

Ideal use cases

• Industrial automation and control systems
• DC power distribution in machinery
• Battery-powered or DC bus applications
• Building automation and process control

Good to know

The converter is designed for DIN rail mounting and operates with convection cooling, eliminating the need for fans and reducing maintenance. Screw terminals provide secure wiring connections.
