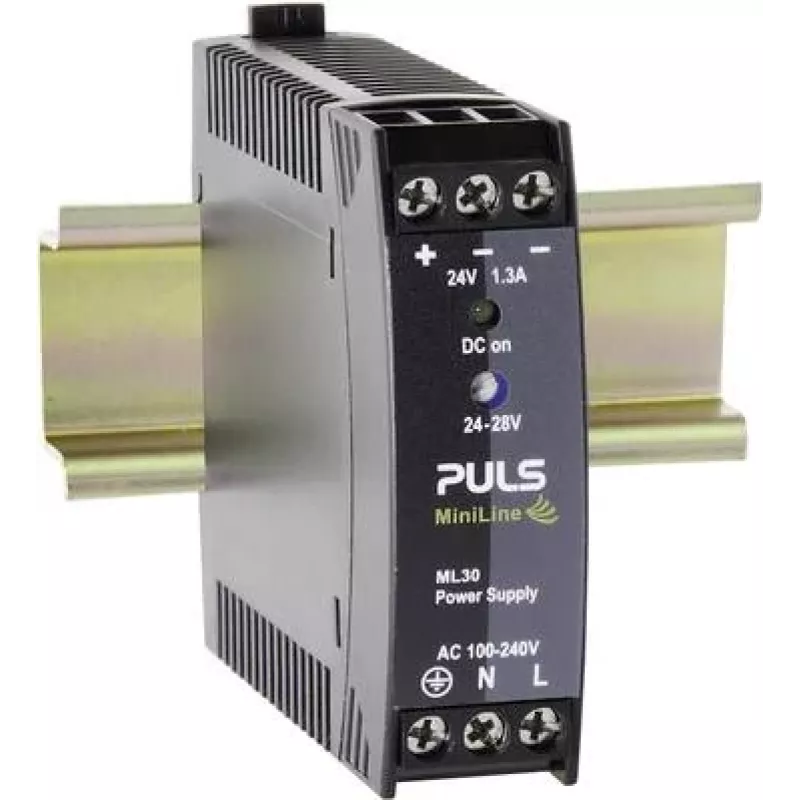

PULS MiniLine ML30.241 Fonte de alimentação comutada para calha DIN 24V DC 1,3A 30W

Industrial control systems need a reliable 24V DC supply that fits on a DIN rail without wasting space. The PULS MiniLine ML30.241 delivers 30W from a compact plastic housing, with screw terminals for secure wiring and auto-ranging input for worldwide use.

Who is it for

Panel builders and machine OEMs who require a compact, DIN-rail mountable power supply for sensors, PLCs, and other 24V loads in industrial cabinets.

Main features

• 24V DC output, adjustable from 24 to 28V
• 1.3A nominal current, 30W power
• Wide-range input: 100-240V AC or 110-150V DC
• High efficiency up to 88.5%
• Plastic housing, IP20 protection
• Operating temperature from -10°C to +70°C

Specifications

• Mounting: DIN rail (TS35/7.5 or TS35/15)
• Input frequency: 50-60 Hz
• Ripple and noise: <50 mVpp
• Hold-up time: >20 ms at 230VAC, 1.3A
• Connection: screw terminals
• Protection: overload, short-circuit, overvoltage, overtemperature

Tips

For best performance, ensure adequate ventilation around the unit and derate output above 60°C ambient. Use appropriate wire sizes for screw terminals to avoid voltage drop.
