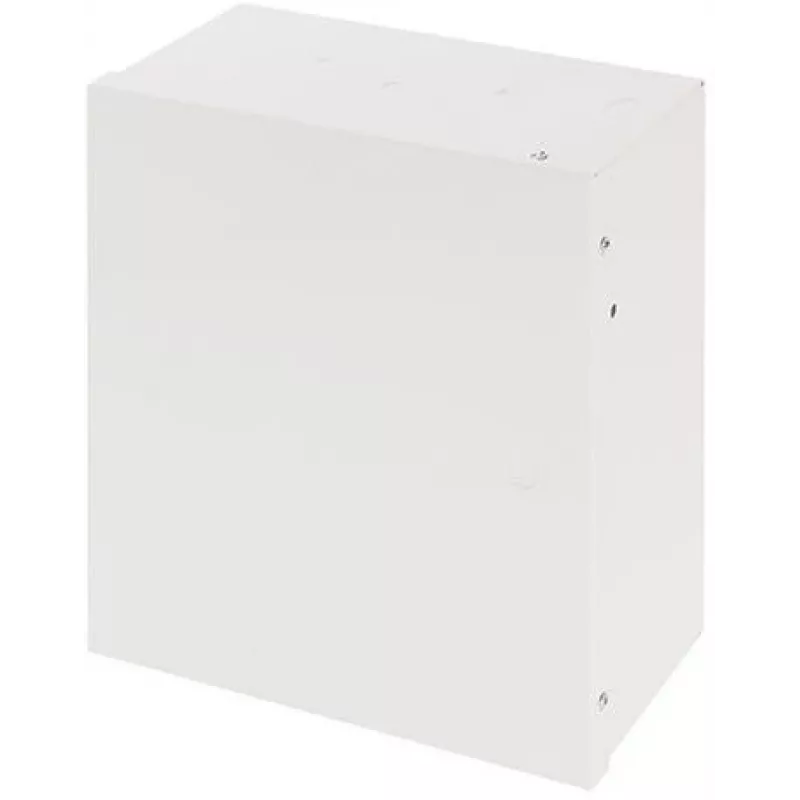

Pulsar AWO220PU Caixa metálica universal, branco (RAL 9003), chapa de aço 0,8 mm, montagem na parede, IP20

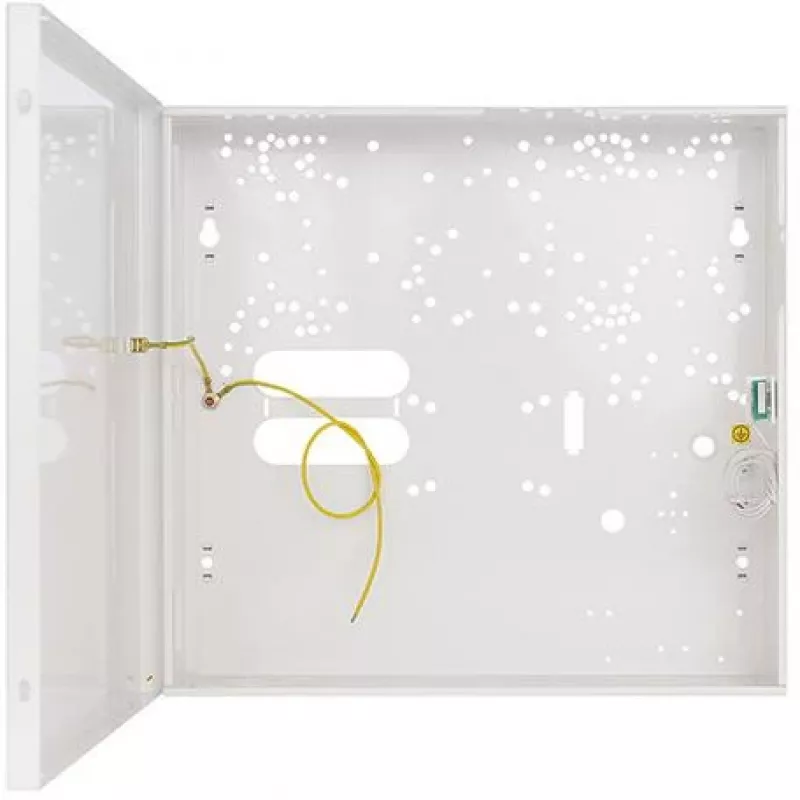

The Pulsar AWO220PU is a high-quality universal metal enclosure designed for indoor installation of alarm systems, access control, CCTV, and automation modules. Manufactured from 0.8 mm steel sheet with a powder-coated finish in white (RAL 9003), this enclosure offers robust protection and a clean aesthetic. It features a key lock with two keys, a tamper microswitch (NC), and passive ventilation openings for safe operation of installed equipment.

Advantages

Durable steel construction with powder coating ensures long-lasting performance. The tamper protection microswitch enhances security by detecting unauthorized opening. Multiple knock-out cable entries simplify cable management. The enclosure can accommodate one 17Ah or two 7Ah 12V batteries, providing flexibility for backup power solutions.

Suitable for

• Alarm control panels and peripherals
• Access control systems
• CCTV equipment
• Automation modules

Key specifications

• Enclosure Type: Universal Metal Enclosure
• Material: Steel Sheet, 0.8 mm thickness
• Colour: White (RAL 9003)
• Tamper Protection: Microswitch (NC)
• Lock Mechanism: Key Lock (2 keys included)
• Max Battery Accommodation: 1 x 17Ah / 12V or 2 x 7Ah / 12V
• Mounting: Wall-mounted / Surface-mounted
• IP Rating: IP20
• Ventilation: Passive ventilation openings
• Surface Finish: Powder Coated

Recommendations

For optimal installation, ensure the enclosure is mounted on a solid wall and all cable entries are properly sealed to maintain IP20 protection. Use the provided screws and follow local electrical codes.
