Punho rotativo de acoplamento de porta Eaton NZM3-XTVD-0, preto, IP66, bloqueável

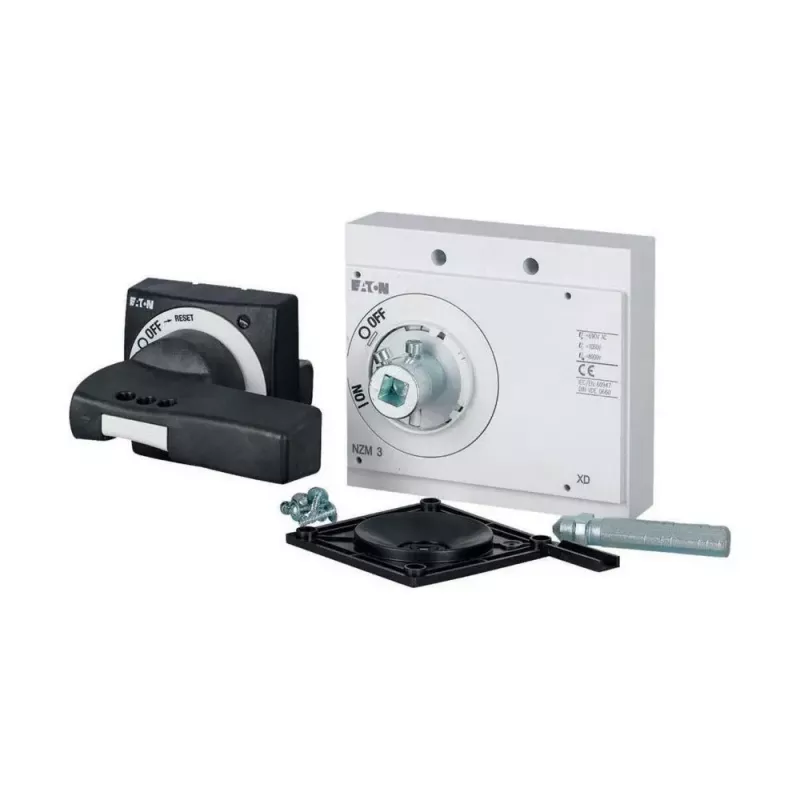

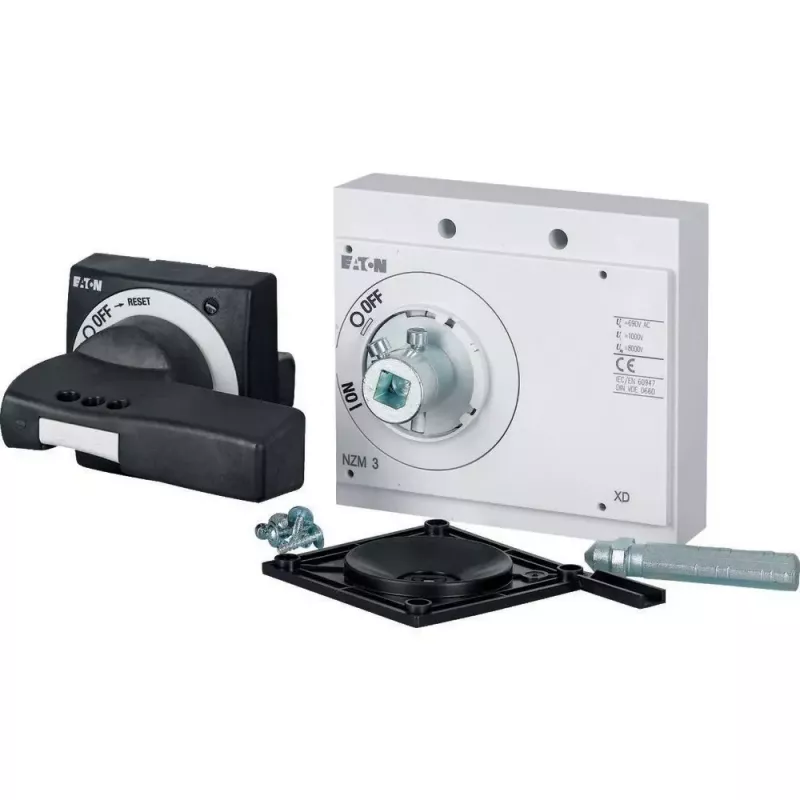

In industrial control panels and machine enclosures, operators need to actuate a circuit breaker from outside the door without opening it. The Eaton NZM3-XTVD-0 door coupling rotary handle enables exactly that: safe, external operation of NZM3 or N(S)3 series circuit breakers while the enclosure remains closed. The handle is mounted on the door and coupled to the breaker mechanism, allowing ON/OFF switching and clear position indication at a glance. Its black insulating plastic grip provides ergonomic handling, while the metal coupling mechanism ensures reliable transfer of rotary motion.

Key specifications

• Accessory type: door coupling rotary handle
• Compatible with Eaton NZM3 and N(S)3 series circuit breakers
• Handle colour: black
• Front protection degree: IP66
• Lockable in OFF position with up to 3 padlocks (shackle diameter 4–8 mm)
• Mounting method: door mounting
• Actuation type: rotary
• Switch position indication: ON/OFF
• Handle material: insulating plastic
• Mechanism material: metal
• Compliance standard: IEC/EN 60947

Why choose it

This handle enhances safety by allowing breaker operation without exposing live parts. The IP66 front protection ensures resistance to dust and powerful water jets, making it suitable for harsh industrial environments. The lockable OFF position supports lockout/tagout procedures, preventing accidental re-energization during maintenance. Its ergonomic grip reduces operator fatigue, and the robust construction ensures long service life.

Ideal use cases

• Machine control cabinets requiring external breaker operation
• Industrial enclosures in dusty or wet locations
• Applications needing lockout/tagout for safety compliance
• Retrofitting existing NZM3/N(S)3 breakers with door coupling

Good to know

The handle is part of the Eaton NZM accessories series and is designed for door mounting. It includes the coupling mechanism for connection to the breaker. For complete installation, ensure compatibility with your specific breaker frame and enclosure door thickness. The handle does not include the breaker itself.
